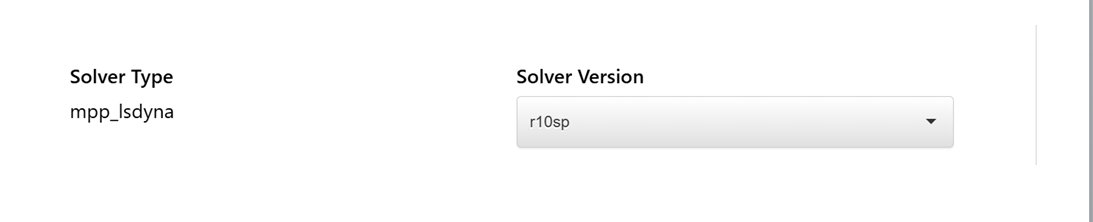

| SOLVER_TYPE |
Specifies Type of Solver |
Value specified must match to a corresponding solver with a matching binary and configuration in lucy.json |
|
| SOLVER_D3PLOT_COMPRESSION_TYPE |
Specifies the type of D3PLOT compression to be used |
Default is none. Options are based on site-specific configurations. Supported types include 7Z,ZIP,PLOTCPRS,FEMZIP,D3VIEW_COMP |
|
| SOLVER_IGNORE_INPUT_CP |
Deprecated |
|
|
| SOLVER_INPUT_FILE |
Main solver input file |
If the main solver input file is in compressed format, d3VIEW will uncompress and use a file that starts with main as the main solver file. The pattern can be changed by using SOLVER_MAIN_INPUT_PATTERN |
|
| SOLVER_VERSION |
Solver version |
This specifies the version of the Solver and depends on Site-specific configuration |
|

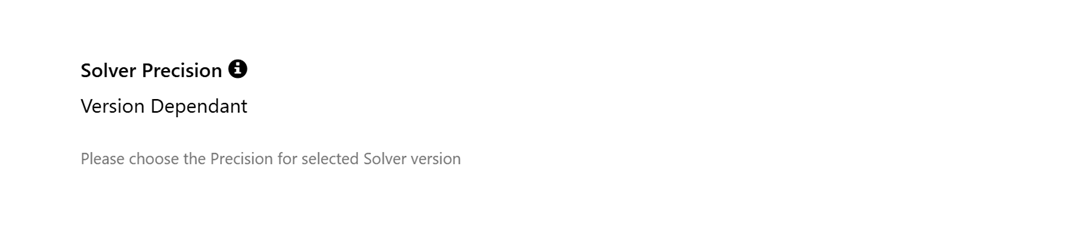

| SOLVER_PRECISION |
Solver precision |
This specifies the precision of the Solver and depends on Site-specific configuration |
|
| SOLVER_INTERCONNECT |
Type of MPI Interconnect |
Default is INTELMPI, Other options include OPENMPI,HPMPI |
|
| SOLVER_MEMORY |
Main memory provided to the solver |
This is the main memory in WORDS or MB or GB that can be specified |
|
| SOLVER_COSIM_CORES |
COSIM cores |
Used for COSIM solver |
|
| SOLVER_ARGS |
Addition arguments for Solver |
If defined, these will be directly passed to the solver execution command |
|
| SOLVER_SUPPORTED_TYPES |
|
|
|
| SOLVER_EXE |
Binary for the specified version |
If defined, these will be used for the solver binary path |
|
| SOLVER_BASE_DIR |
Location where the solver files are loaded |
If defined, all binary path not starting with forward-slash will be prefixed with this |
|
| SOLVER_ADD_ARGS |
alias of SOLVER_ARGS |
|
|
| SOLVER_RUN_SCRIPT |
Solver run script |
If defined, this will be used to execute the solver. The script will have access to all defined environment variables from the job |
|
| SOLVER_WORK_DIR |
The directory where the solver is executed from |
|
|
| SOLVER_RUN_TYPE |
Execution type of the Solver |
|
|
| SOLVER_GDATA |
Deprecated |
|
|
| SOLVER_USER_ARGS |
alias of SOLVER_ARGS |
|
|
| SOLVER_EXTRA_FILES |
Extra files added to the solver |
|
|
| SOLVER_JOB_NAME |
Job name |
|
|
| SOLVER_PFILE |
Path to the PFILE used for Decomposition of LS-DYNA |
|
|
| SOLVER_NCYCLE |
Number of cycles to run for LS-DYNA |
|
|
| SOLVER_USER_NCPU |
Number of cores to use for Soler |
|
|
| SOLVER_JOBID |
Job id |
|
|
| SOLVER_MAIN_MEMORY |
Alias of SOLVER_MEMORY |
|
|
| SOLVER_DECOMP_MEMORY |
Secondary memory for the solver used for Decomposition |
|
|
| SOLVER_TOTAL_NCPU |
Total number of cores for the simulation |
|
|
| SOLVER_NODE_NCPU |
Number of nodes per Server |
|
|
| SOLVER_MPI_TYPE |
Same as SOLVER_INTERCONNECT |
|
|
| SOLVER_LICENSE_SERVER |
Solver license server |
|
|
| SOLVER_RESULT_COMPRESS |
Compress result files |
|
|
| SOLVER_LOCAL_BASE |
Deprecated |
|
|
| SOLVER_TOTAL_NODES |
Number of nodes used for the job |
|
|
| SOLVER_KEEP_D3PLOT |
Keep LS-DYNA D3plots after the simulation is complete |
|
|
| SOLVER_JOB_ID |
Job id |
|
|
| SOLVER_LOCAL_DIR |
Location where the solver files are available on the server |
|
|
| SOLVER_START_DIR |
Location where the simulation is submitted from |
|
|
| SOLVER_NCPU |
Total number of cores for the simulation |
|
|
| SOLVER_CONVERT |
Location to where CONVERT path is located for image processing |
|
|
| SOLVER_INTERFACE_S |
Interface linking file |
|
|
| SOLVER_INTERFACE_L |
Interface linking file |
|
|
| SOLVER_INTERFACE_L_FILE |
Interface linking file |
|
|
| SOLVER_QUEUE |
Main queue the job is sumitted into |
|
|
| SOLVER_RUN_SHORT_PREVIEW |
Option to run short preview |
yes |
|
| SOLVER_RUN_LONG_PREVIEW |
Option to run long preview |
Yes |
|

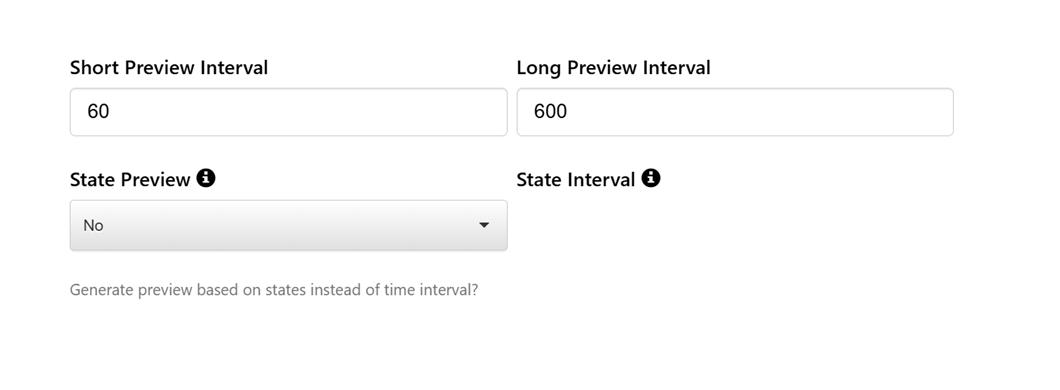

| SOLVER_PREVIEW_SHORT_INTERVAL |
Interval to run short preview |
120 |
|
| SOLVER_PREVIEW_LONG_INTERVAL |
Interval to run long preview |
600 |
|
| SOLVER_REALTIME_PREVIEW |
When enabled, the files are copied as it appears |
|
|

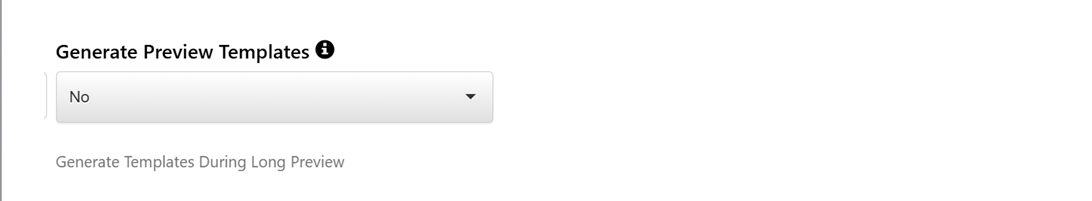

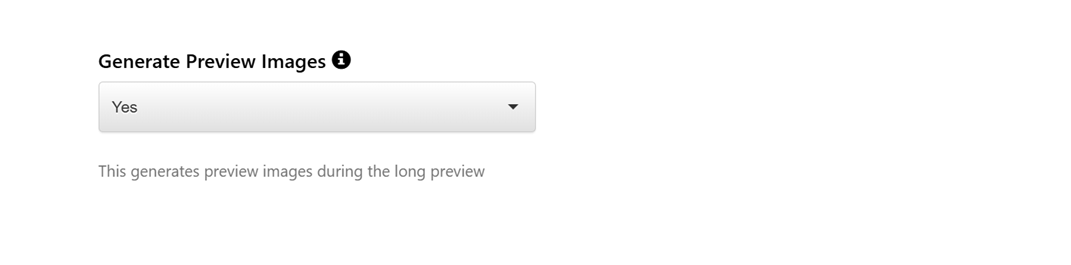

| SOLVER_LONG_PREVIEW_TYPES |
Type of long preview to run as simulation progresses |
compressed,gen_images,apply_templates |
|
| SOLVER_ABORT_FILE |
Type of file to create when user aborts the simulation |
Depends on the Solver. D3KIL for LS-DYNA, ABORT for others |
|
| SOLVER_HUNG_CHECK |
Check if the solver is hung |
Default=no |
|

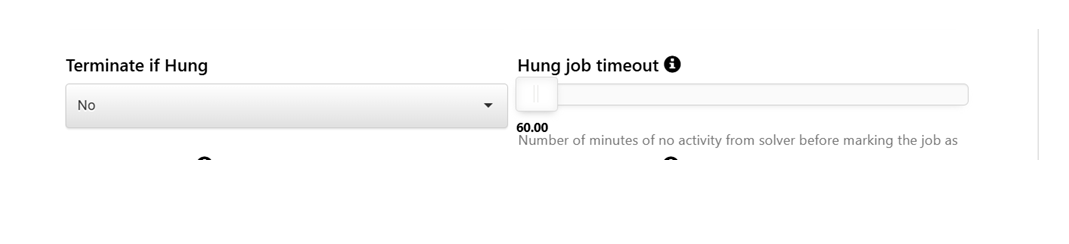

| SOLVER_HUNG_TERMINATE |
Terminate if hung |
Default=no |
|

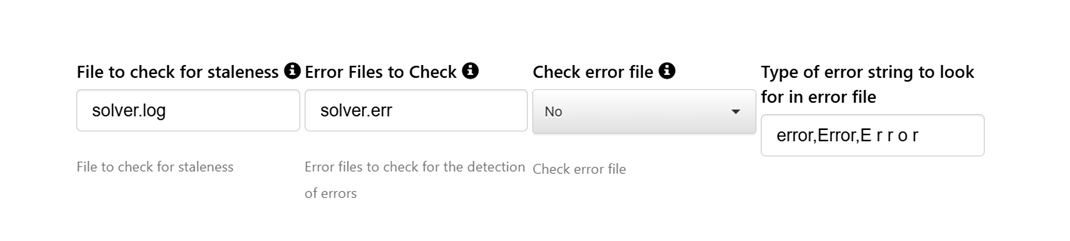

| SOLVER_HUNG_CHECK_FILE |
File to check for staleness |
solver.log |
|
| SOLVER_HUNG_CHECK_ERROR_FILE |
Error file to check to detect any errors are present |
solver.err |
|
| SOLVER_ERROR_CHECK |
Check error file |
Default = no |
|
| SOLVER_ERROR_TOKENS |
Types of error string to look for in error file |
Default =error,Error,E r r o r |
|
| SOLVER_ERROR_WAIT |
Wait time for error checking |
|
|
| SOLVER_MPI_ENV |
Environment variables for MPI |
|
|
| SOLVER_MPI_APP_ENV |
Alias of SOLVER_MPI_ENV |
|
|

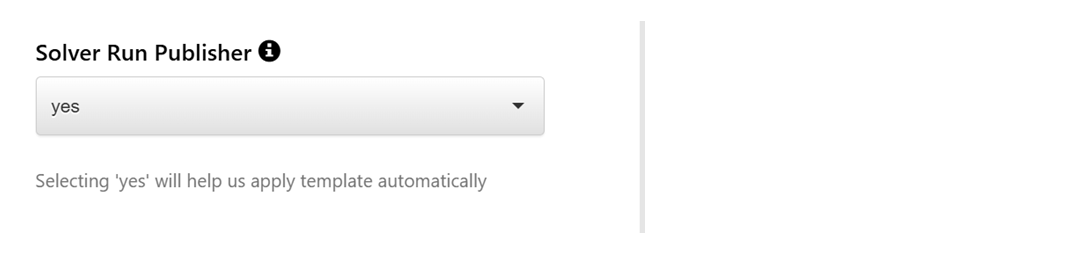

| SOLVER_RUN_PUBLISHER |
Run templates after simulation completes |
Default=no |
|
| SOLVER_DEALLOCATE_NODES |
After simulation completes and if more than one node Is used, this deallocates other nodes |
Default = no |
|
| SOLVER_RUN_IMAGE_CHAINER |
Detect sequential images and chain them into a movie |
Default=no |
|
| SOLVER_POST_SCRIPT |
Script to run after job completes |
Default=no |
|
| SOLVER_ABORT_INTERVAL |
Wait time before aborting simulation if an ABORT file is detected |
120 |
|
| SOLVER_RUN_LONG_TERM_BACKUP |
Location where files can be copied after simulation completes |
Default=no |
|
| SOLVER_HUNG_CHECK_INTERVAL |
How often to check for hung jobs |
Deafult=120 |
|
| SOLVER_LICENSE_WAIT_TIMEOUT |
Wait for licenses until they become available |
Default=wait |
|
| SOLVER_MAIN_INPUT_PATTERN |
Pattern to use while looking for main input file if in compressed format |
When main input file is in compressed format such as ZIP, this pattern if defined will be used |
|
| SOLVER_COMPRESSION_BIN |
Binary path to use for compression |
Used in conjunction with SOLVER_D3PLOT_COMPRESSION_TYPE |
|
| SOLVER_COMRPESSION_ARGS |
Arguments to be supplied for compression binary |
|
|
| SOLVER_COMPRESSION_ENV |
Environment variables for Compression binary |
|
|
| SOLVER_COMPRESSION_APPEND |
Applies for FEMZIP. IF defined, -UA will be used |
Append states as they are created. Only applies for FEMZIP |
|
| SOLVER_RESERVE_CORE_FOR_PROCESSING |
If long preview or short preview is enabled, this option will reserve a core |
Helps to dedicate a core for previews |
|
| SOLVER_POST_EXECUTION_TIMEOUT |
integer |
If post-processing scripts run beyond this timeout, they will be terminated |
Helps to avoid hanging or long - running post-processing scriptsmoba |

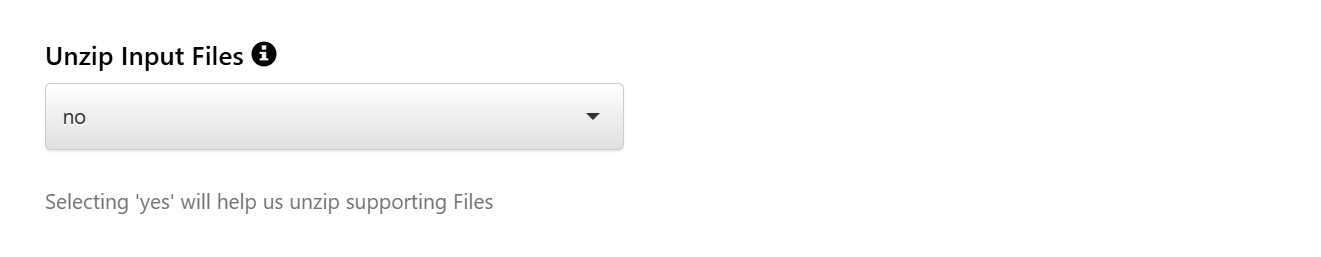

| SOLVER_UNZIP_INPUT_FILES |
string |
When this is enabled and solver main input is not zipped, other files that may be zipped are unzipped |
|
| SOLVER_MPI_MODULES |
string |
List of modules separated by a comman that can be loaded |
|
| SOLVER_LOG_LEVEL |
string |
Type of logging level |
Default=INFO |
| SOLVER_RUN_EQ_LAUNCH |
string |
Option to specify if the execution is performed in the same directory as the launch directory. If no, the SOLVER_COMPUTE_DIR is used to create a new directory before execution starts |
|
| SOLVER_COMPUTE_DIR |
string |
Location on the compute node where the simulation is solved |
|
| SOLVER_ERROR_CHECK_FILES |
string |
Files to check if there is a error string from a solver so we can terminate when SOLVER_ERROR_CHECK=yes |
|
| SOLVER_AGGREGATE_MESSAGES |
string |
For LS-DYNA the message files are concatenated into one ALL_MESSAGES.txt file for debugging |
|
| SOLVER_GREP_ERRORS_TO_FILE |
string |
Grep errors from D3HSP/MES0* and store in a file Errors.txt |
|
| SOLVER_POST_SOLVE_COMPRESSION |
string |
Option to run on compression of files after the simulation is complete |
|

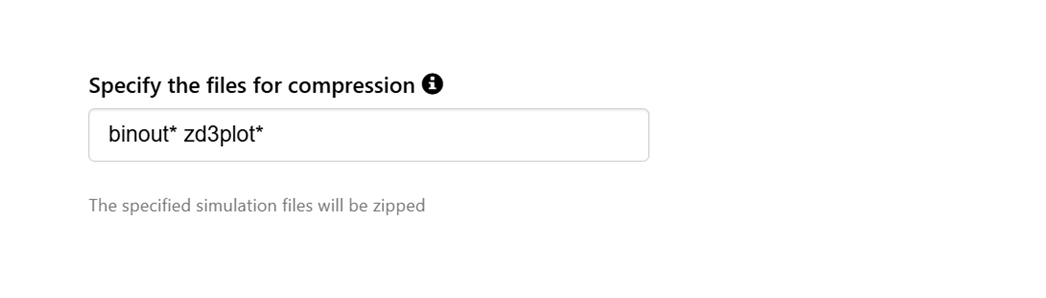

| SOLVER_POST_SOLVE_COMPRESSION_FILES |
string |
List of files separated by spaces to compress |
|
| SOLVER_POST_SOLVE_FILE_NAME |
string |
File name to compress data into when using SOLVER_POST_SOLVE_COMPRESION |
|
| SOLVER_POST_SOLVE_COMPRESSION_REMOVE_ORIG |
string |
Option to remove post-solve compressed files |
|
| SOLVER_LICENSE_FAILURE_RETRY |
string |
Option to run the solver again if there is a license failure |
|
| SOLVER_LICENSE_FAILURE_RETRIES |
integer |
Number of retries before giving up in the event of the license failure |
|
| SOLVER_LONG_TERM_BACKUP |
string |
After the simulation is complete, this allows us to copy the files to a remote location |
|
| SOLVER_LONG_TERM_HOST |
string |
Remote hostname or ip address |
|
| SOLVER_LONG_TERM_LOCATION |
string |
Remote location where the files are to be copied |
|
| SOLVER_LONG_TERM_REM |
string |
Remove files after copying to long term location. This option DOES NOT check if the files were copied successfully. Use once this is tested in your environment |
|
| SOLVER_LICENSE_FAILURE_ERRORS |
String |
Option to detect license of MPI errors and try again |
|
| SOLVER_LICENSE_FAILURE_FILES |
string |
Files to check for license or MPI errors |
|
| SOLVER_GREP_ERRORS |
string |
Option to grep errors from log files and save in a new file |
|
| SOLVER_GREP_ERRORS_FILES |
string |
List of files used to look for errors |
|
| SOLVER_GREP_ERRORS_PATTERN |
string |
Error pattern to look for in the files specified |
|
