10. Turings¶
The Turing application presents an extensive summary and visualization of your servers, how they are being used, which users are using them and much more.
What Will Be Covered
- Server Utilization and Server Utilization Settings
- Calendar Button and Moving the Time Frame
- Job Utilization, Job Utilization Chart Type and Weekly Report
- Summary and Summary Settings
- Reports, Top 5 Users and Peak Utilized Days
- User Logs
- Exporting
10.1. Getting Started¶

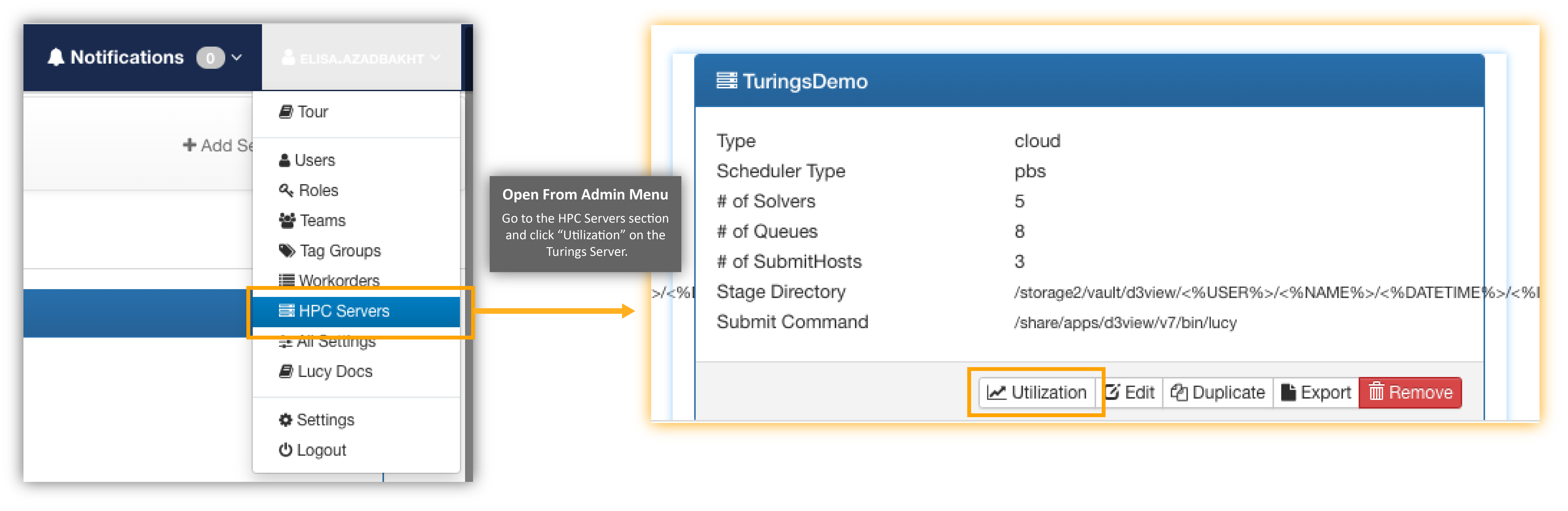

To access the application, go to the HPC Servers section under the administration menu and click on “Utilization” on the Turings Server.
Open Turings Under Admin Menu

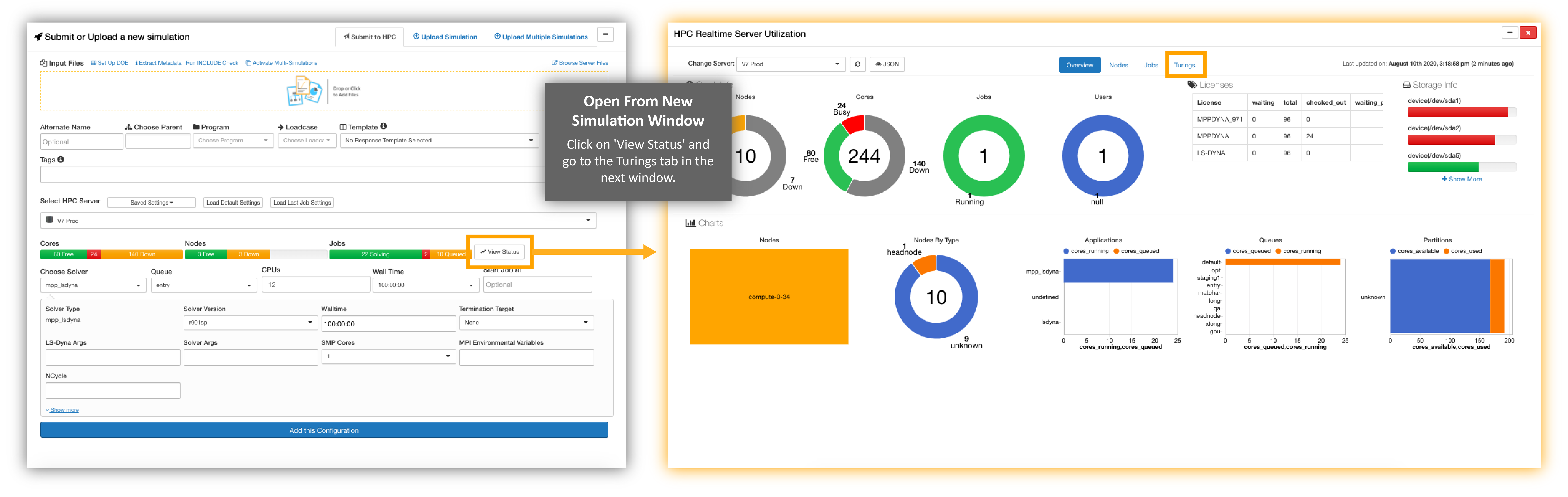

The app can also be accessed on the New Simulation window, by clicking on ‘View Status’ and going to the Turings tab in the next window.
Open Turings from New Simulation Window

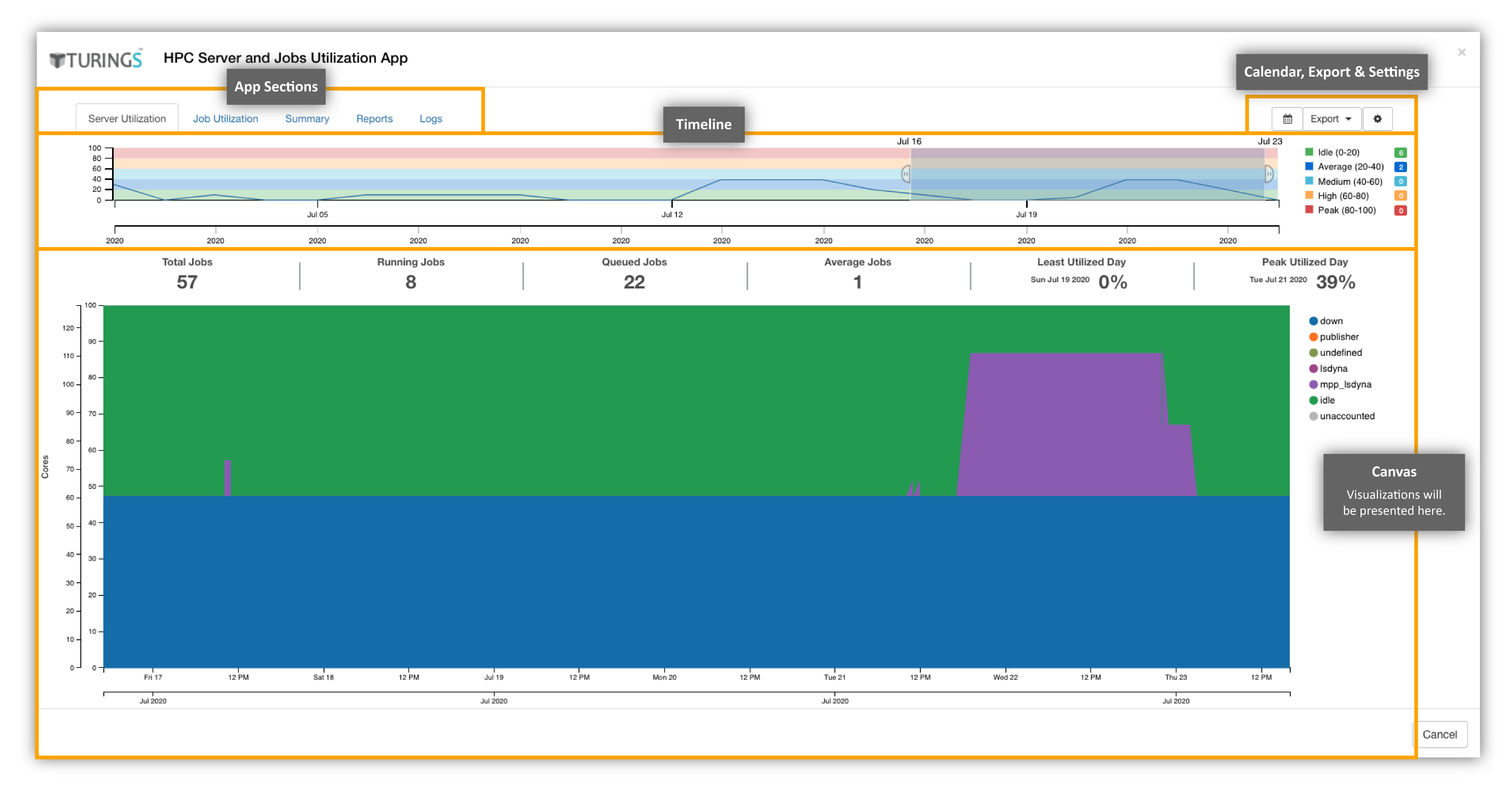

Here is a breakdown of how the application is set-up.
Turings Application
10.2. Server Utilization¶
This first tab, Server Utilization, gives a visualized breakdown of what jobs, cores and solvers are being run on the server.

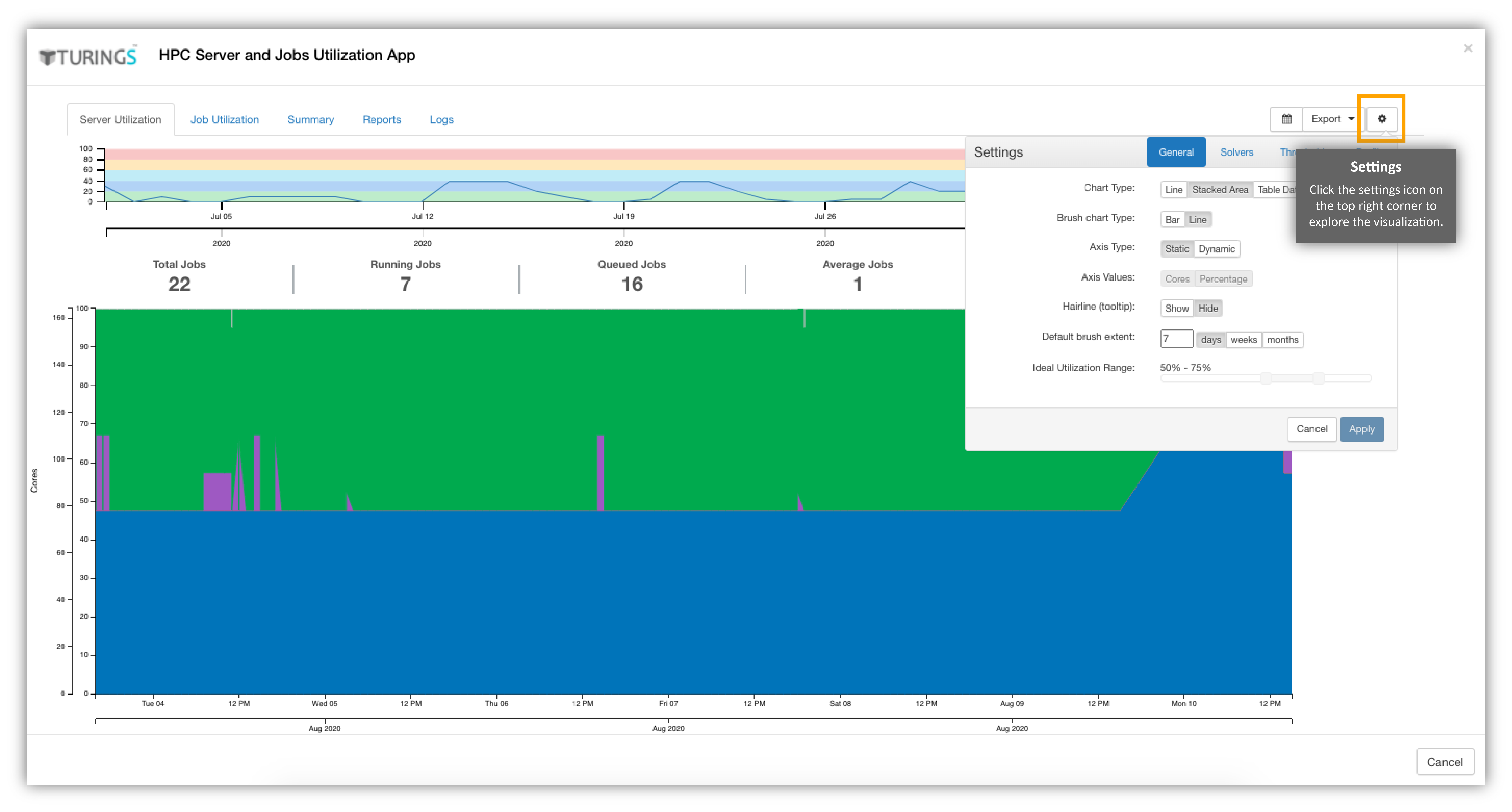

Click the settings icon on the top right corner to explore the visualization.
Server Utilization Settings
General¶

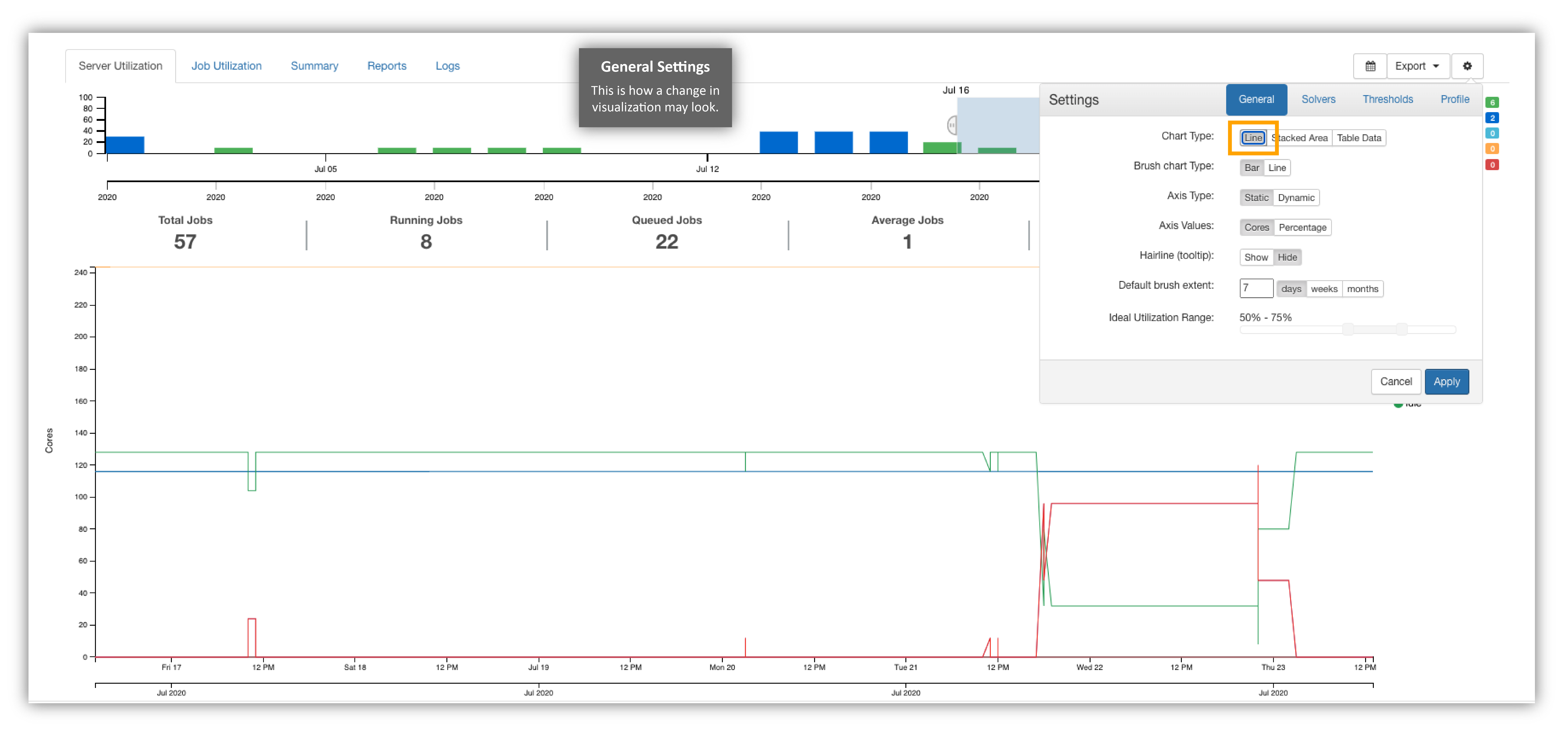

Use the General Settings to visualize the graphs differently by changing aspects like the chart type or utilization range. Here is how a change in visualization may look. Server Utilization Settings
These settings also affect the top time chart, which can be viewed on all tabs.
Solvers¶

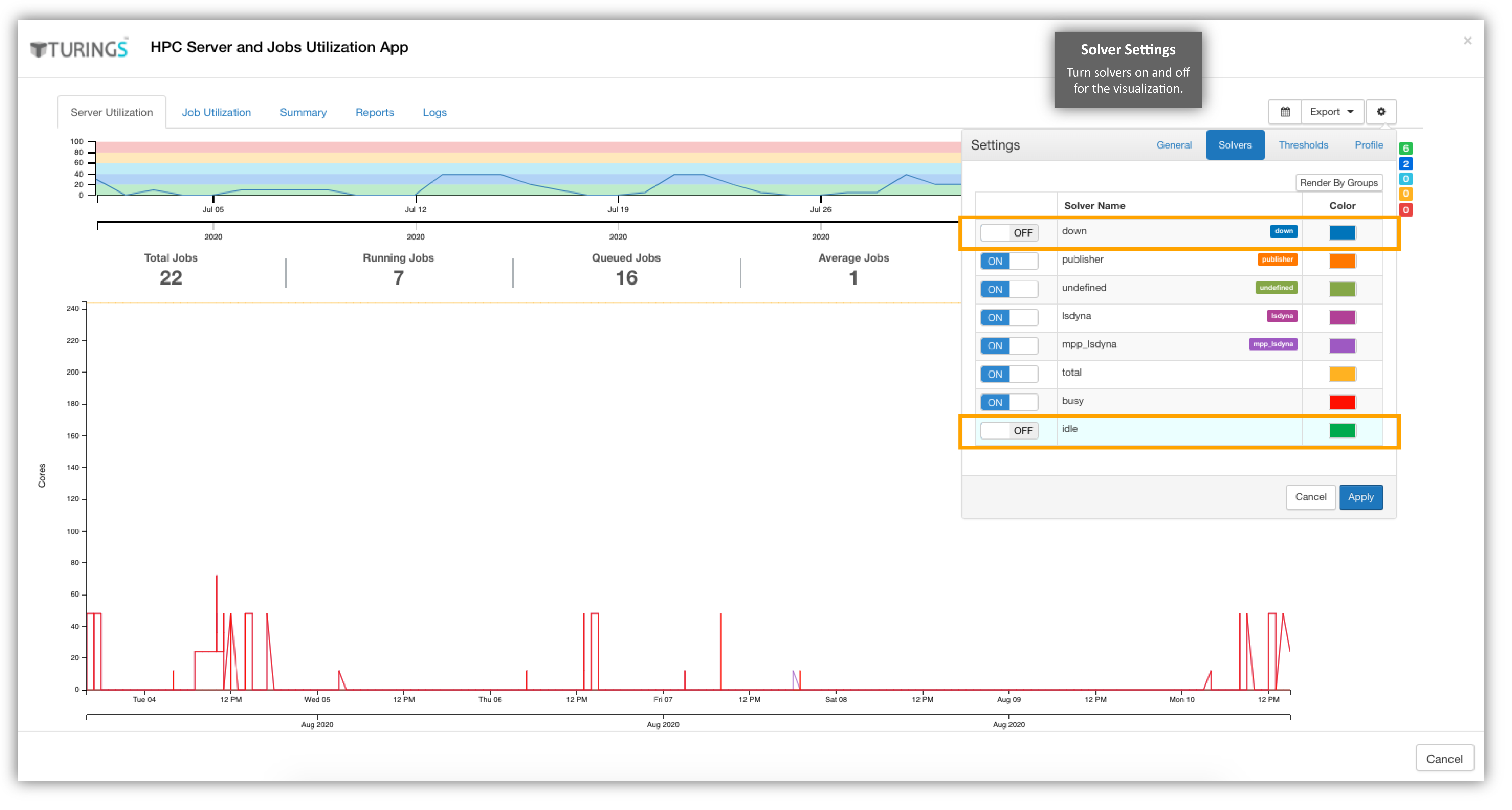

Turn solvers on and off or change their colors under this section of the settings. In the image below, the ‘down’ and ‘idle’ solvers have been turned off and are no longer present on the graph.
Turn Solvers On and Off
Thresholds¶

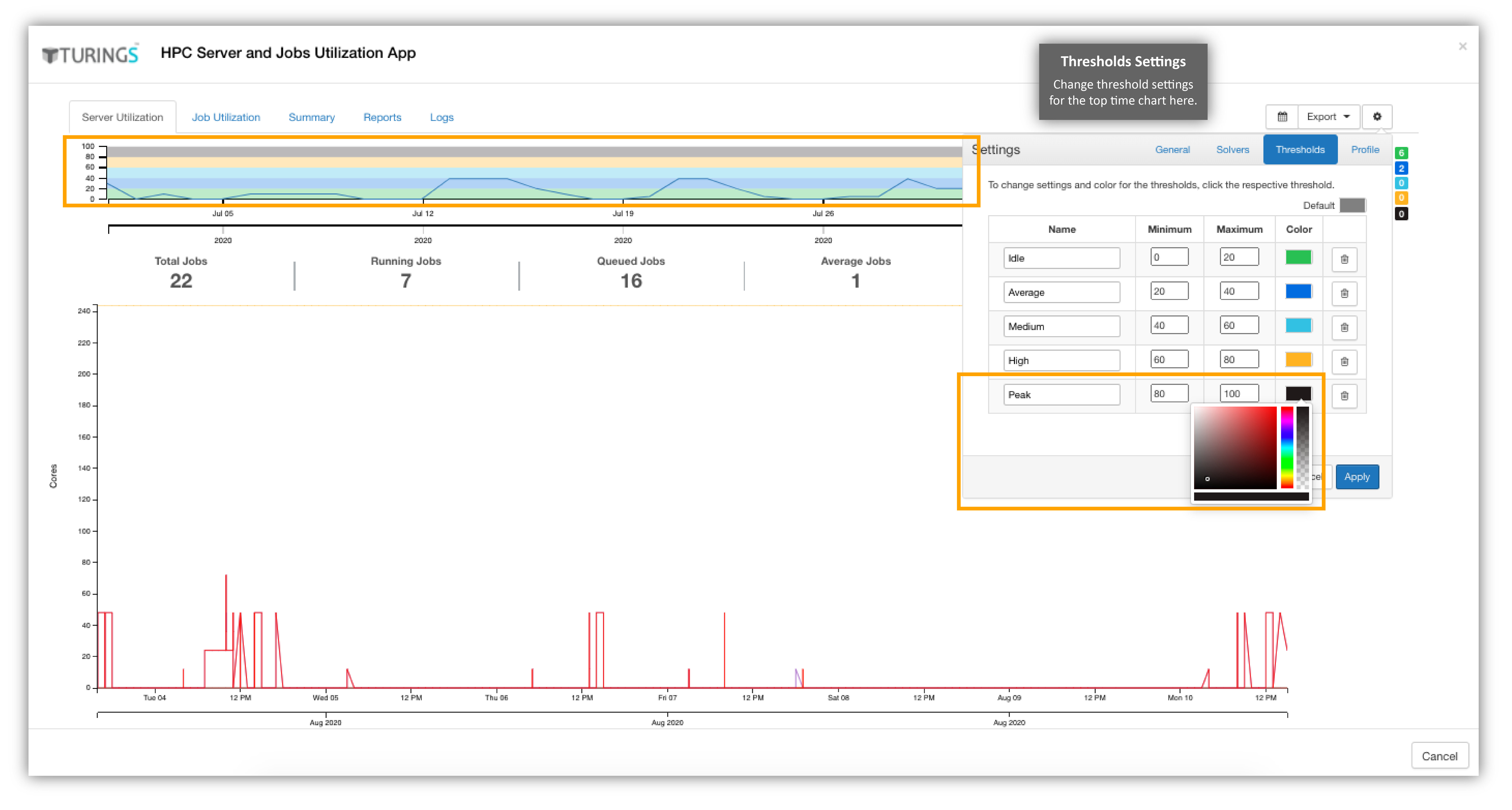

Rename, delete and change colors of Thresholds under this section of the settings. This will implement changes into the top time chart. The image below shows the Peak Threshold color changed to a dark grey. The peak utilization in the top time chart is now a grey instead of a red.
Turn Solvers On and Off
Profile¶

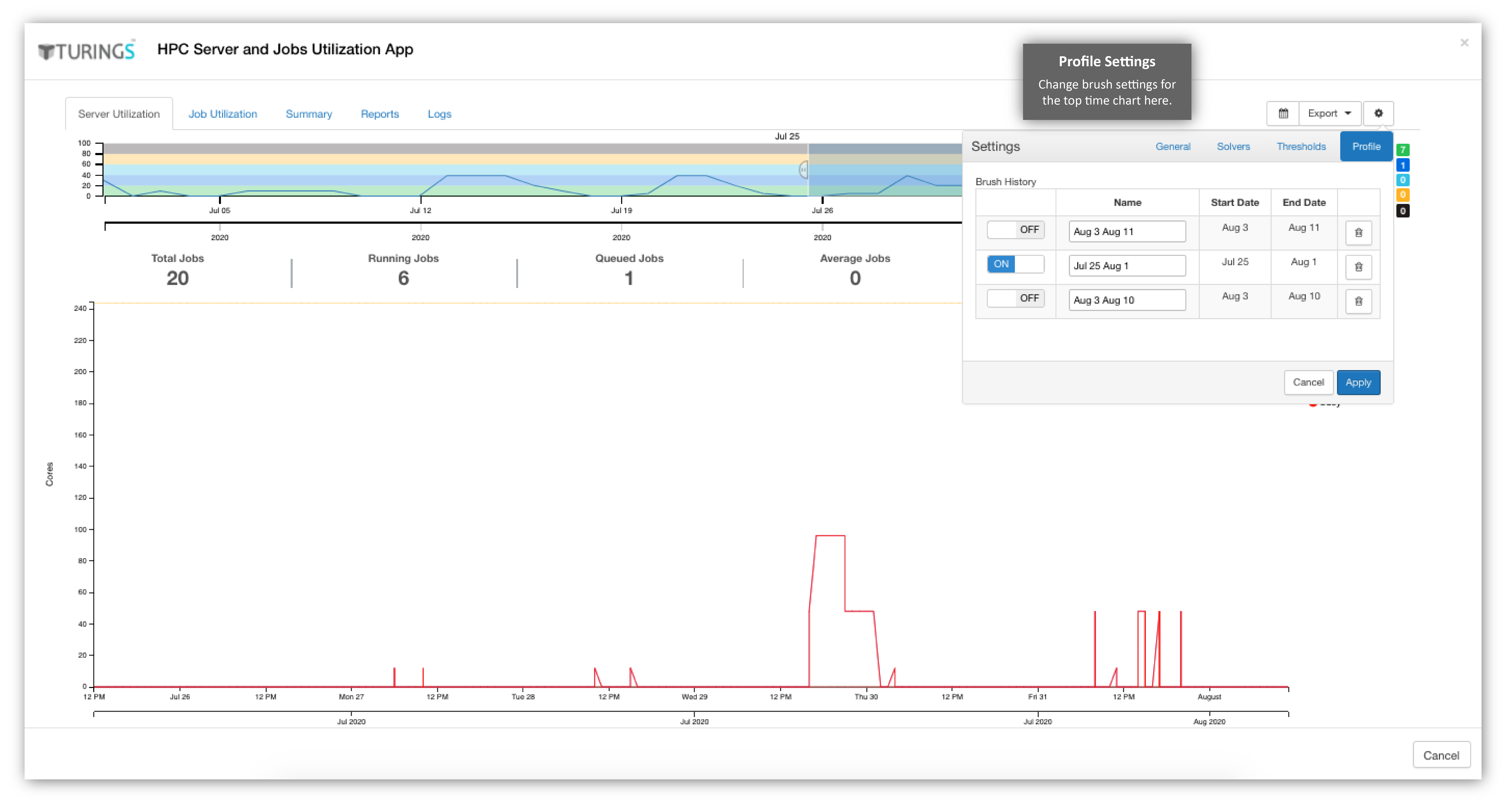

Rename and turn Brush History on and off under this section of the settings. This will also implement changes into the top time chart.
Edit Brush History
You won’t have much of a brush history if you haven’t used the brush calendar tool yet. We’ll go over this in the next section
10.3. Calendar Settings¶

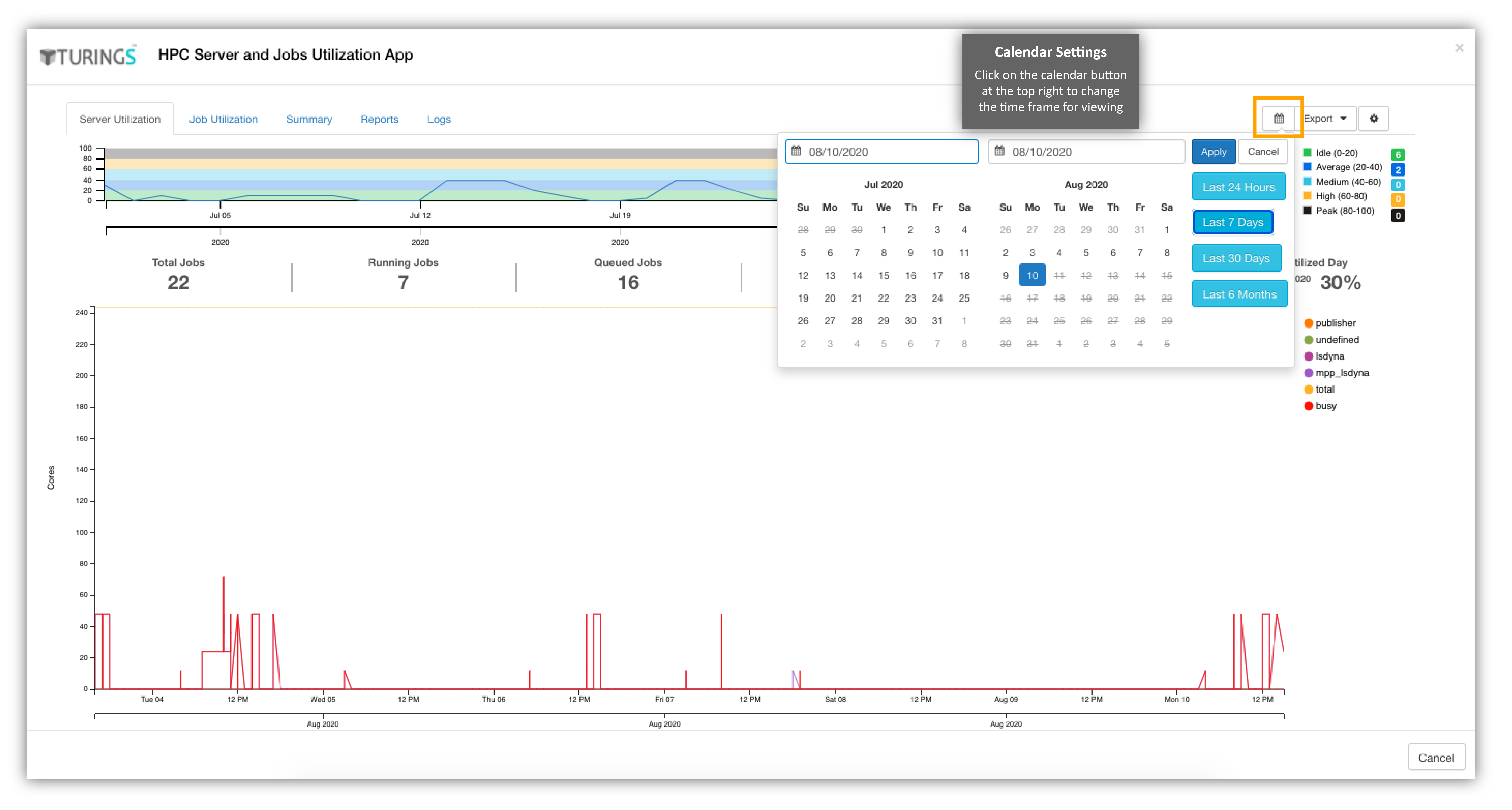

Click on the calendar button at the top right to change the time frame for viewing. This, the brush section, is implemented on the time chart at the top, which is present on all tabs and determines what information is shown on each tab.
Calendar Settings

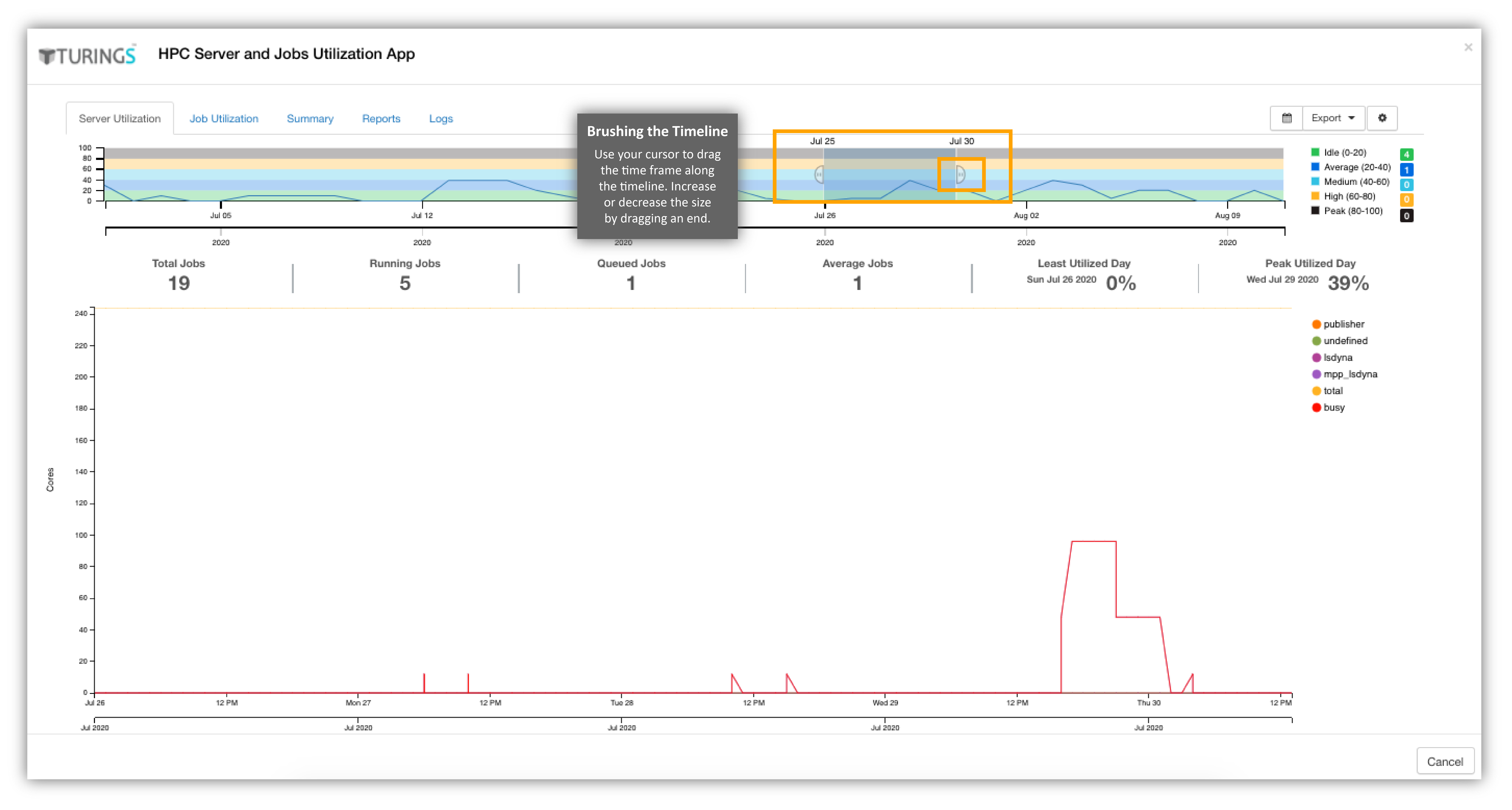

Once you choose a time frame, you can drag it along to the time chart to compare different areas. You can also increase or decrease the brush size by using your curser to drag one side of it across the timeline.
Brushing the Timeline
10.4. Job Utilization¶

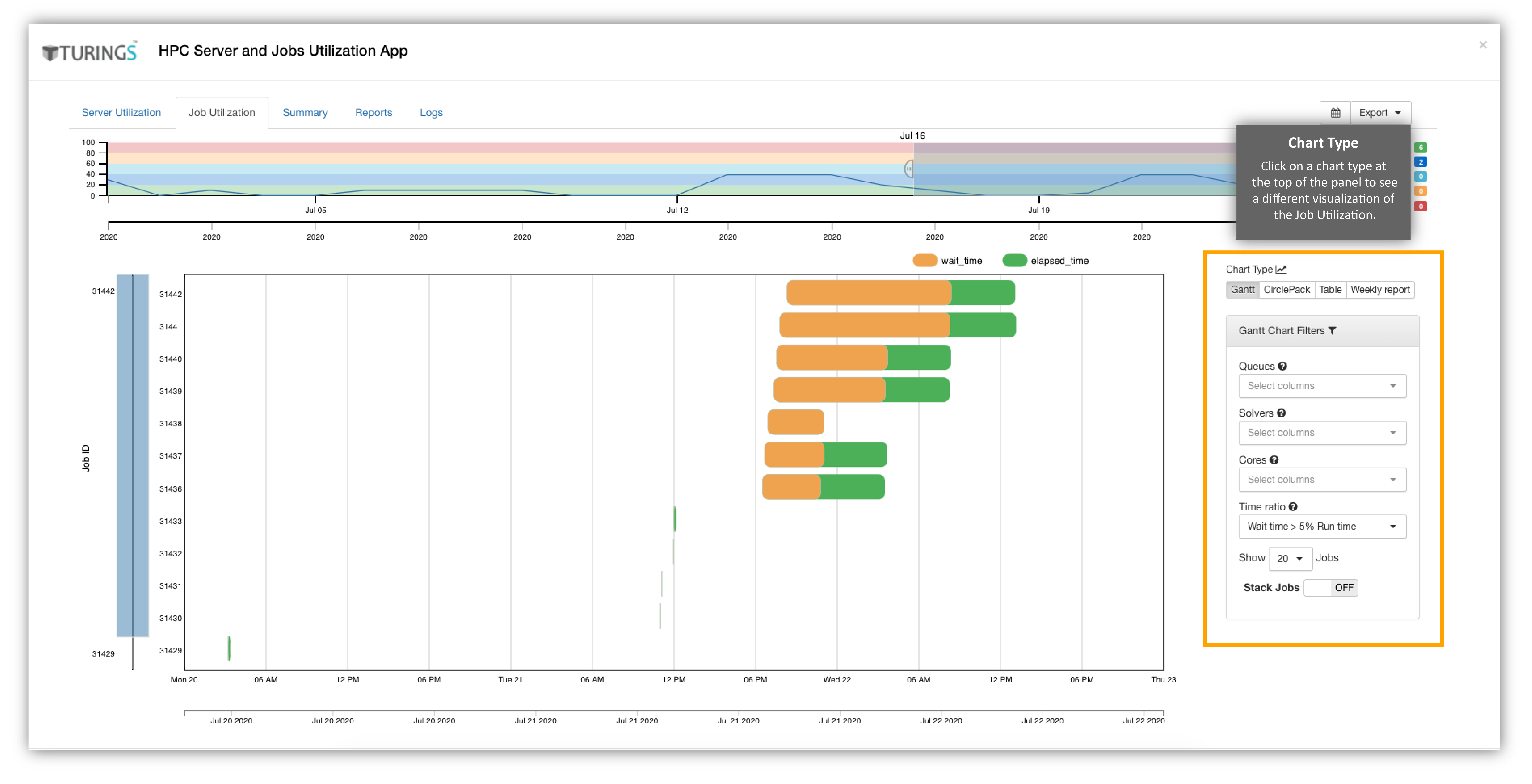

The Job Utilization tab presents a visualized summary of how jobs are running on the server. The default view of Job Utilization is the gantt plot, but it can be changed under “Chart Type” on the right side of the chart. You can also change filters for whichever chart you choose on this panel.
Job Utilization and Chart Type

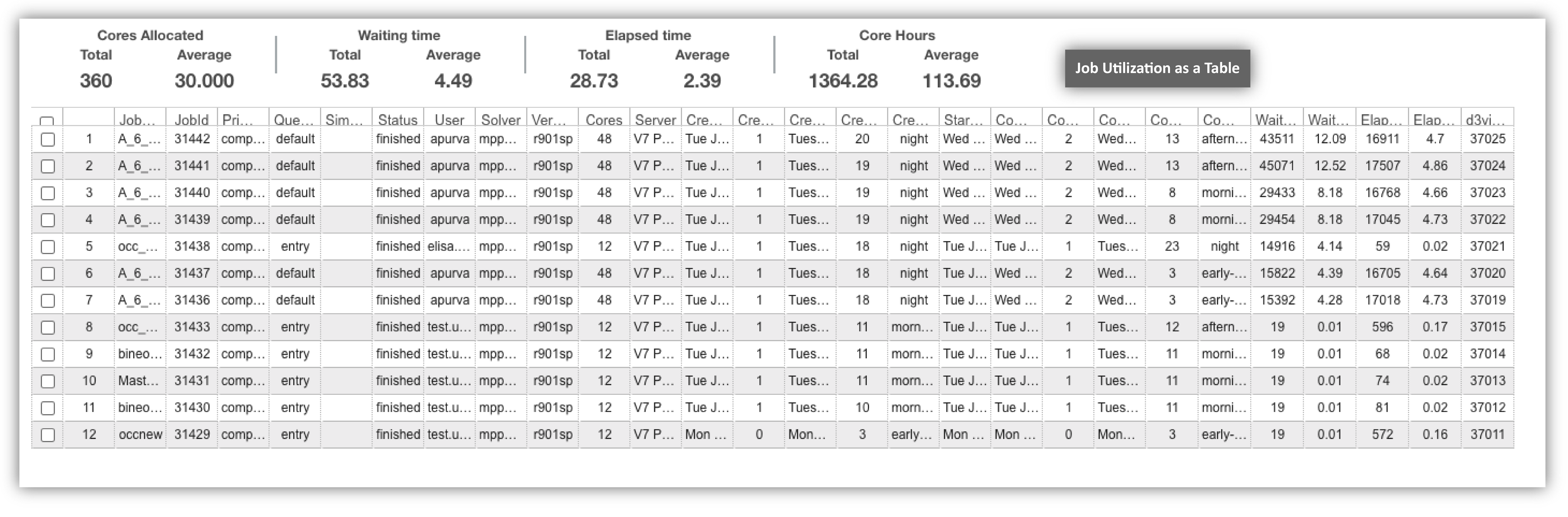

The following image shows Job Utilization as a table.
Table Visualizaton

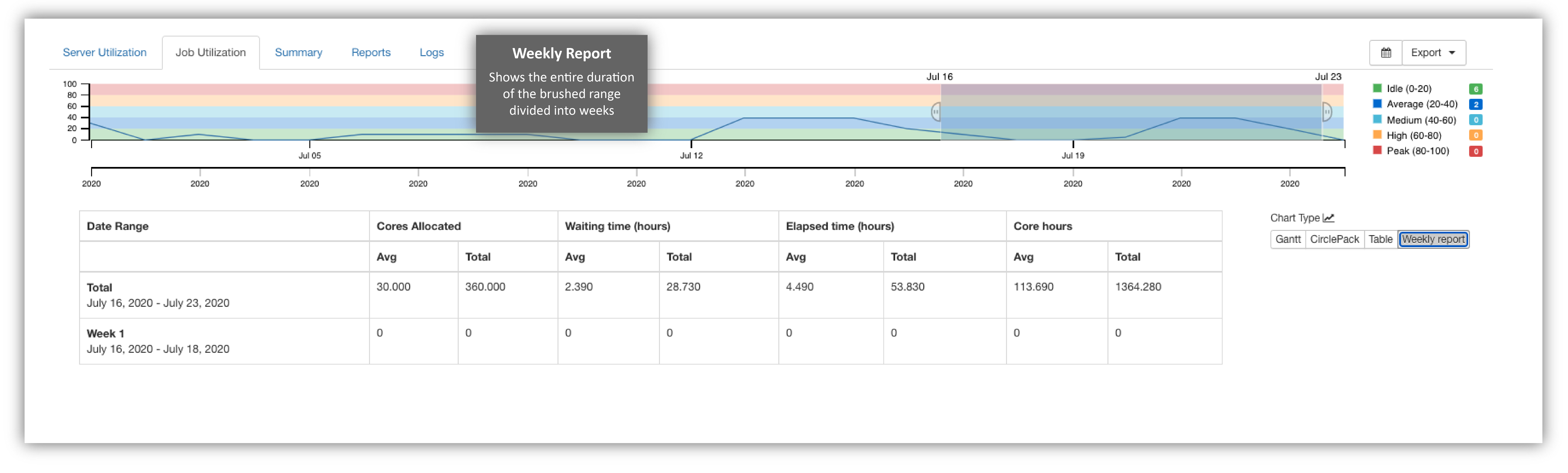

The last chart option, the Weekly Report view, shows the entire duration of the brushed range divided into weeks. A table is rendered showing Cores allocated, Elapsed time (hours), Wait time (hours) and Core Hours for every week.
Weekly Report
10.5. Summary¶

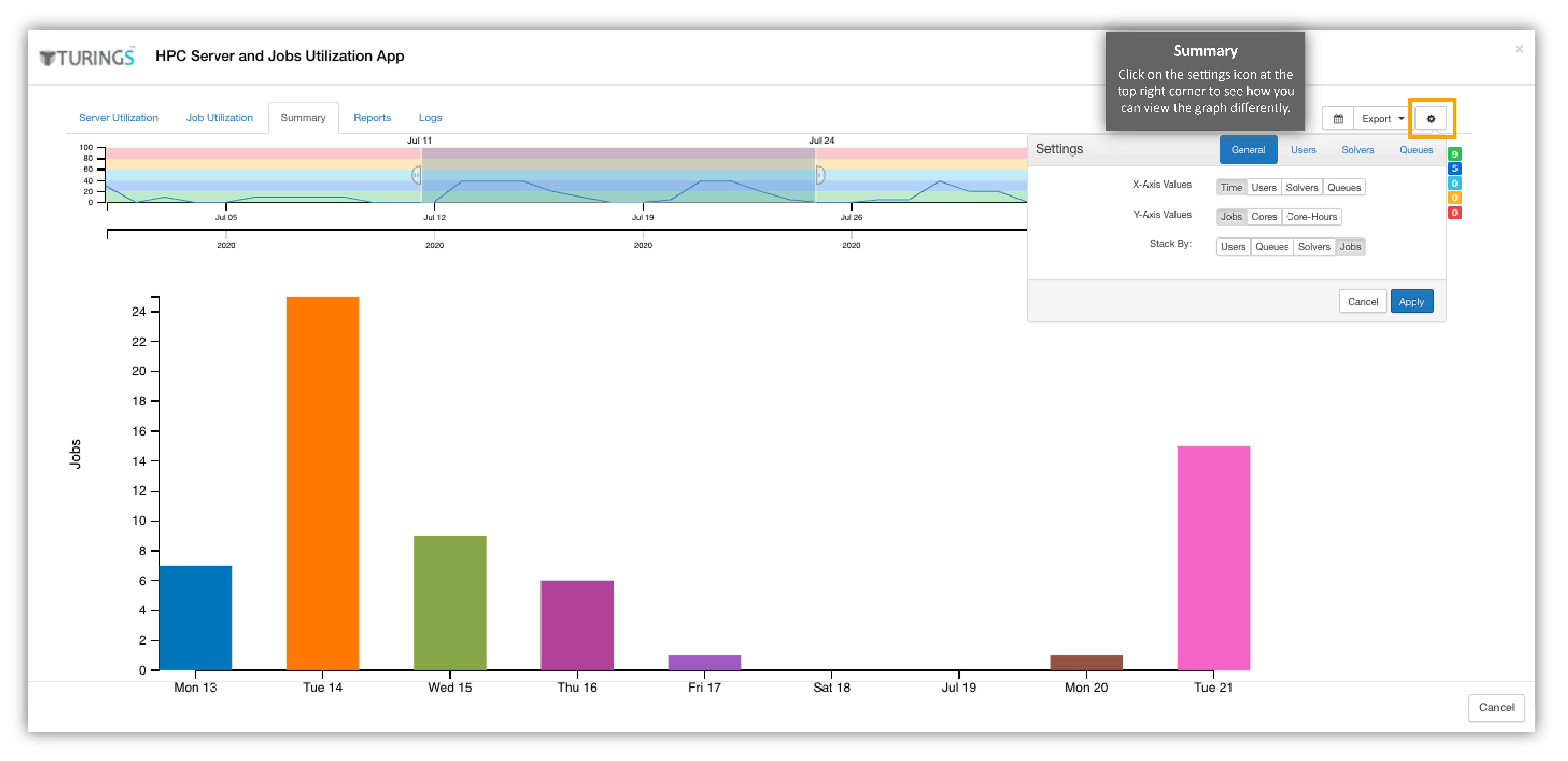

The Summary tab allows for visualizing all server elements – users, solvers, queues, cores, jobs, etc. The default bar graph shows dates, jobs and thresholds. Click on the settings icon at the top right corner to see how you can change graph elements to view it differently.
Summary
General¶

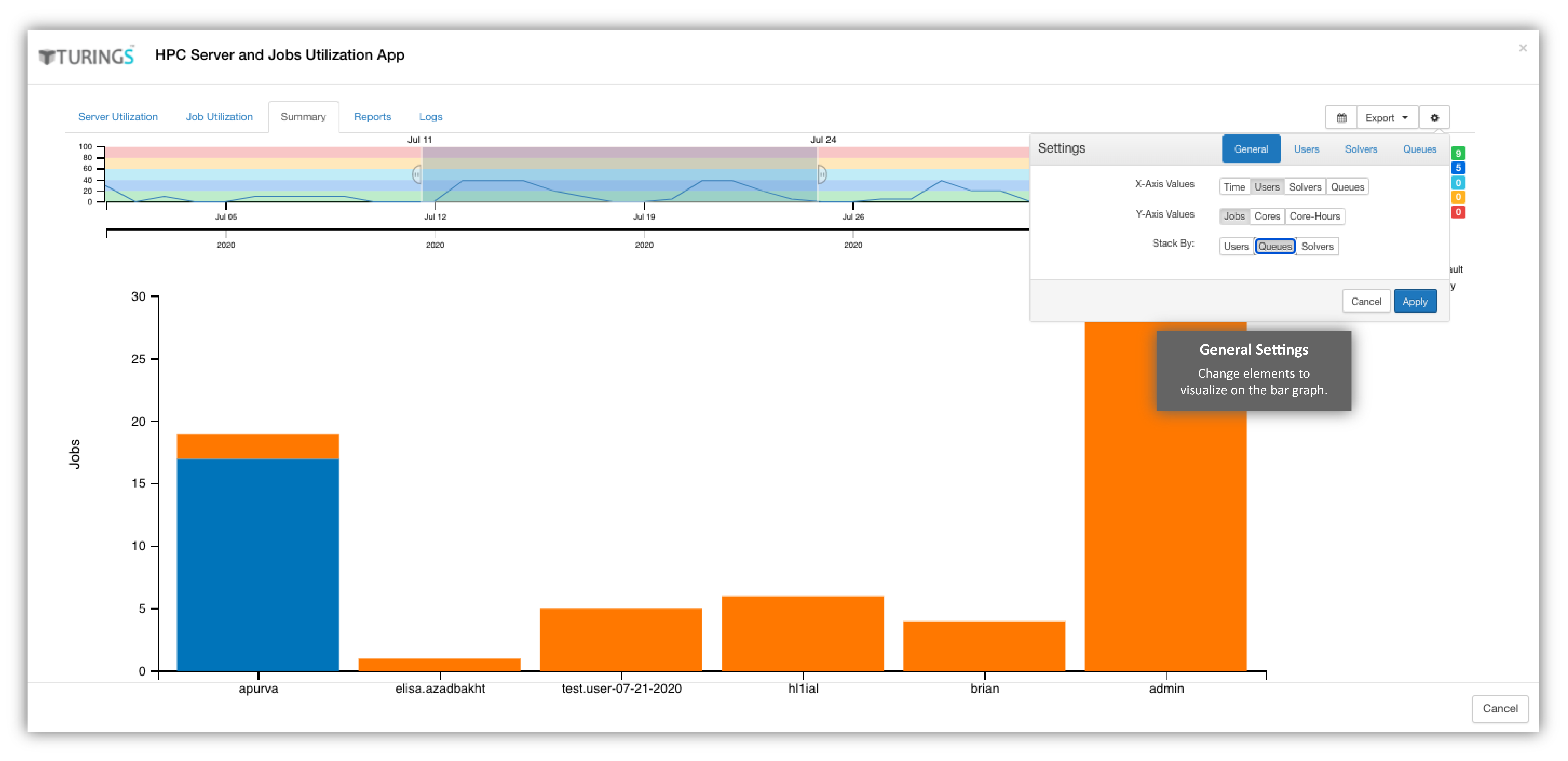

Under the General Settings, change elements to visualize on the bar graph. Here is how the bar graph may look after changing the x-axis and stack views.
General Settings
Users¶

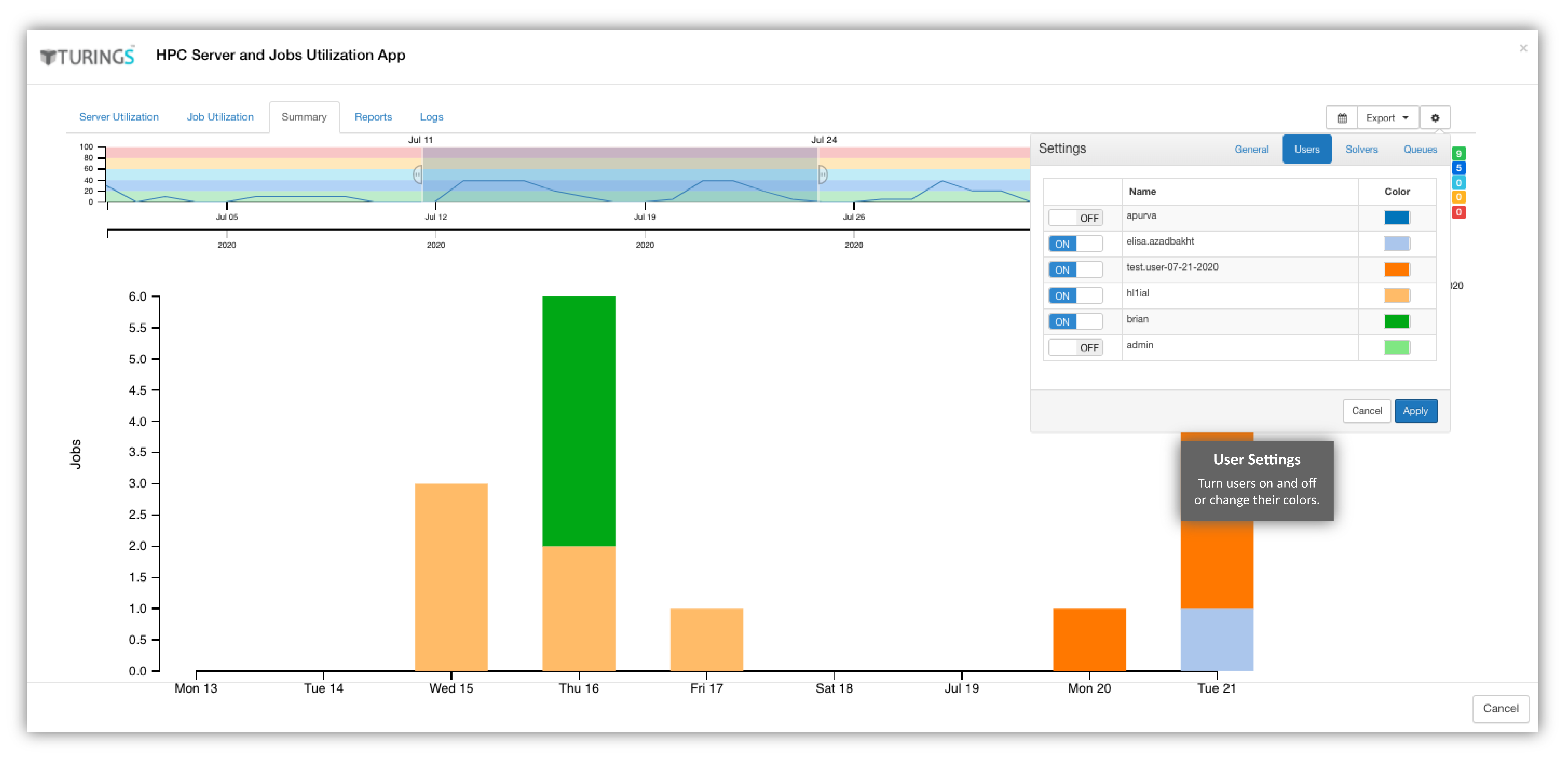

Turn users on and off for the summary chart or change their colors under this summary settings section.
User Settings
Solvers¶

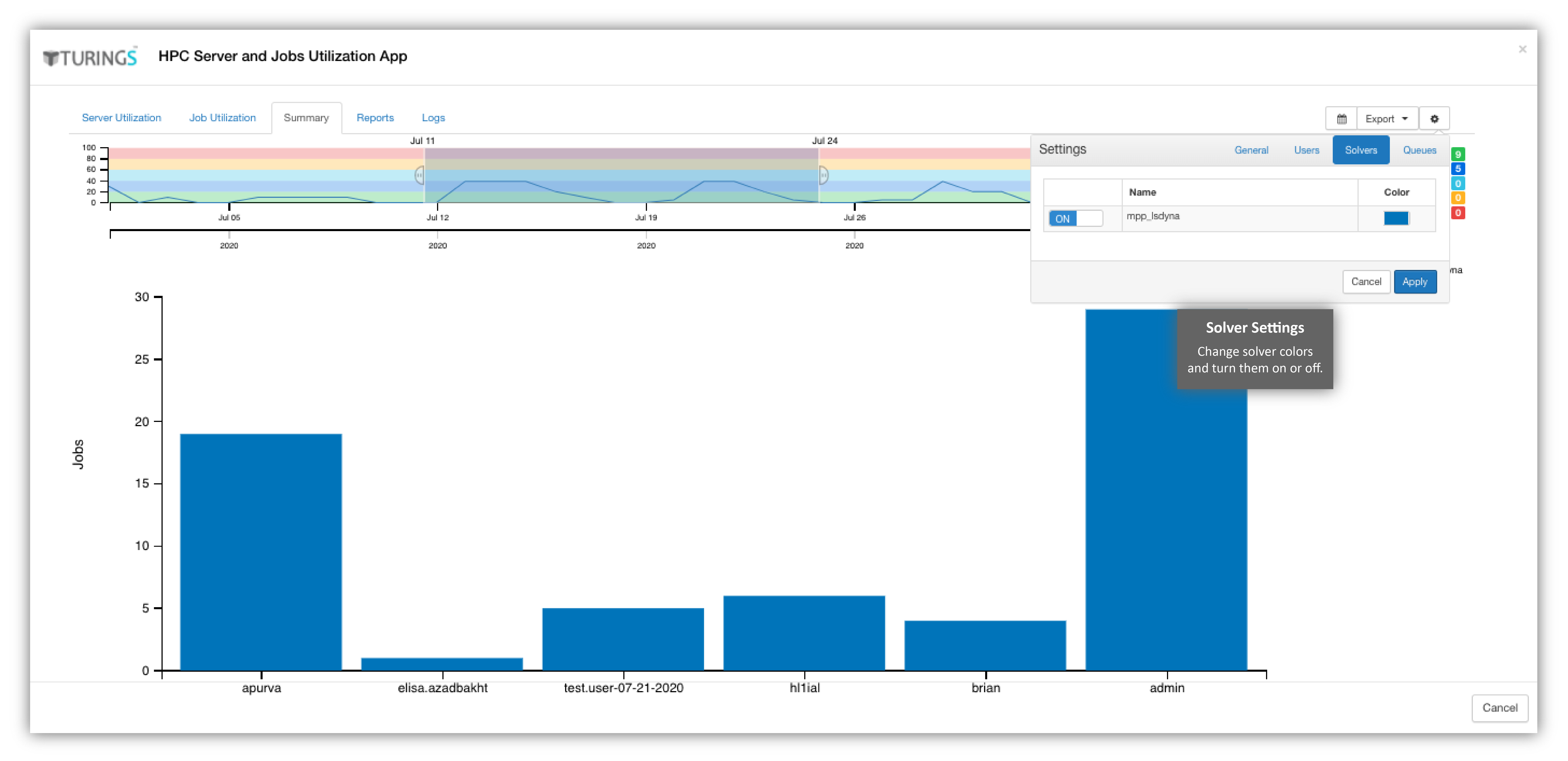

Change solver colors and turn them on or off for the summary graph under these settings.
SolverSettings
Queues¶

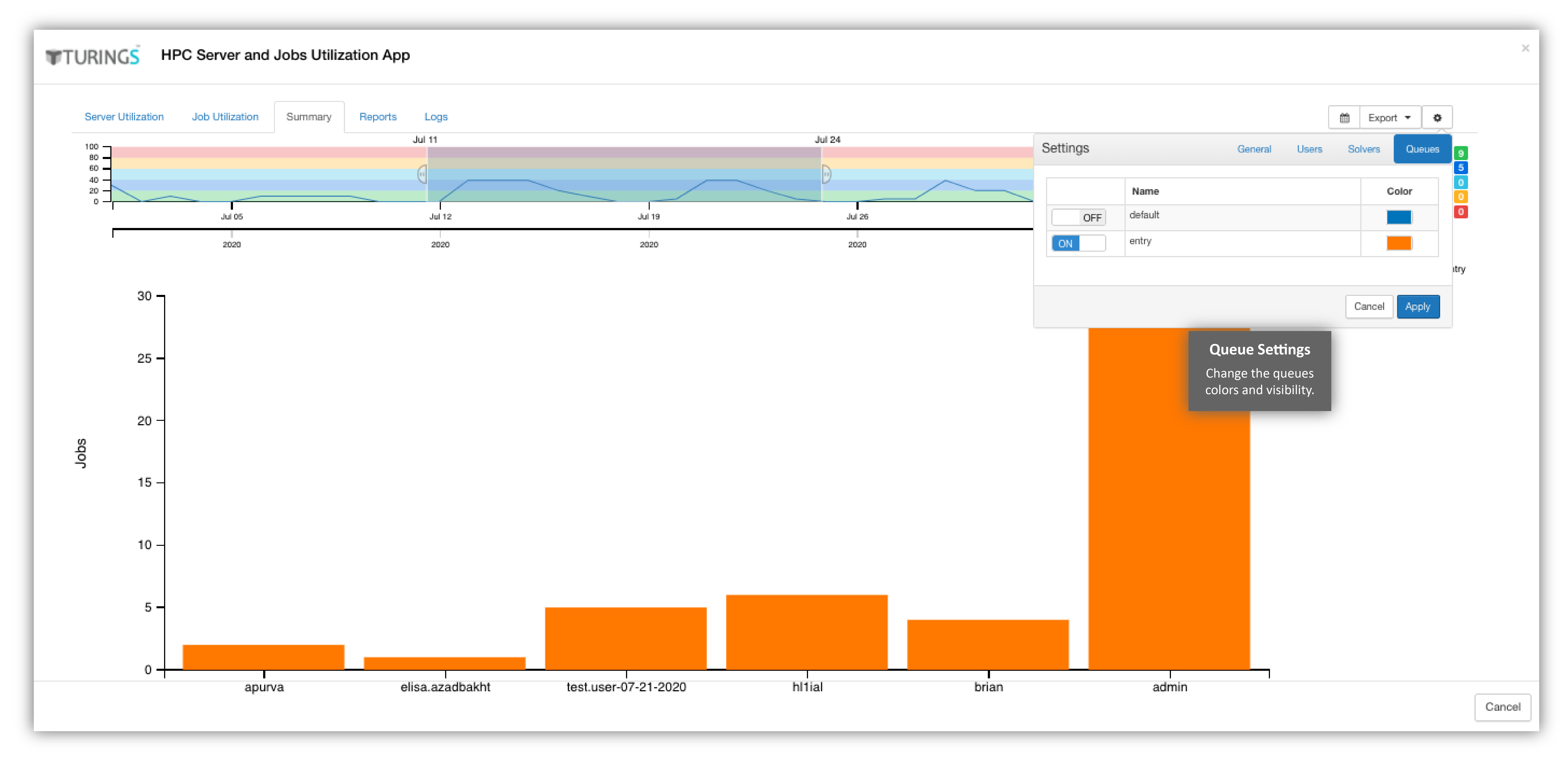

Lastly, the queues colors and visibility can be changed for the summary as well here.
Queue Settings
10.6. Reports¶

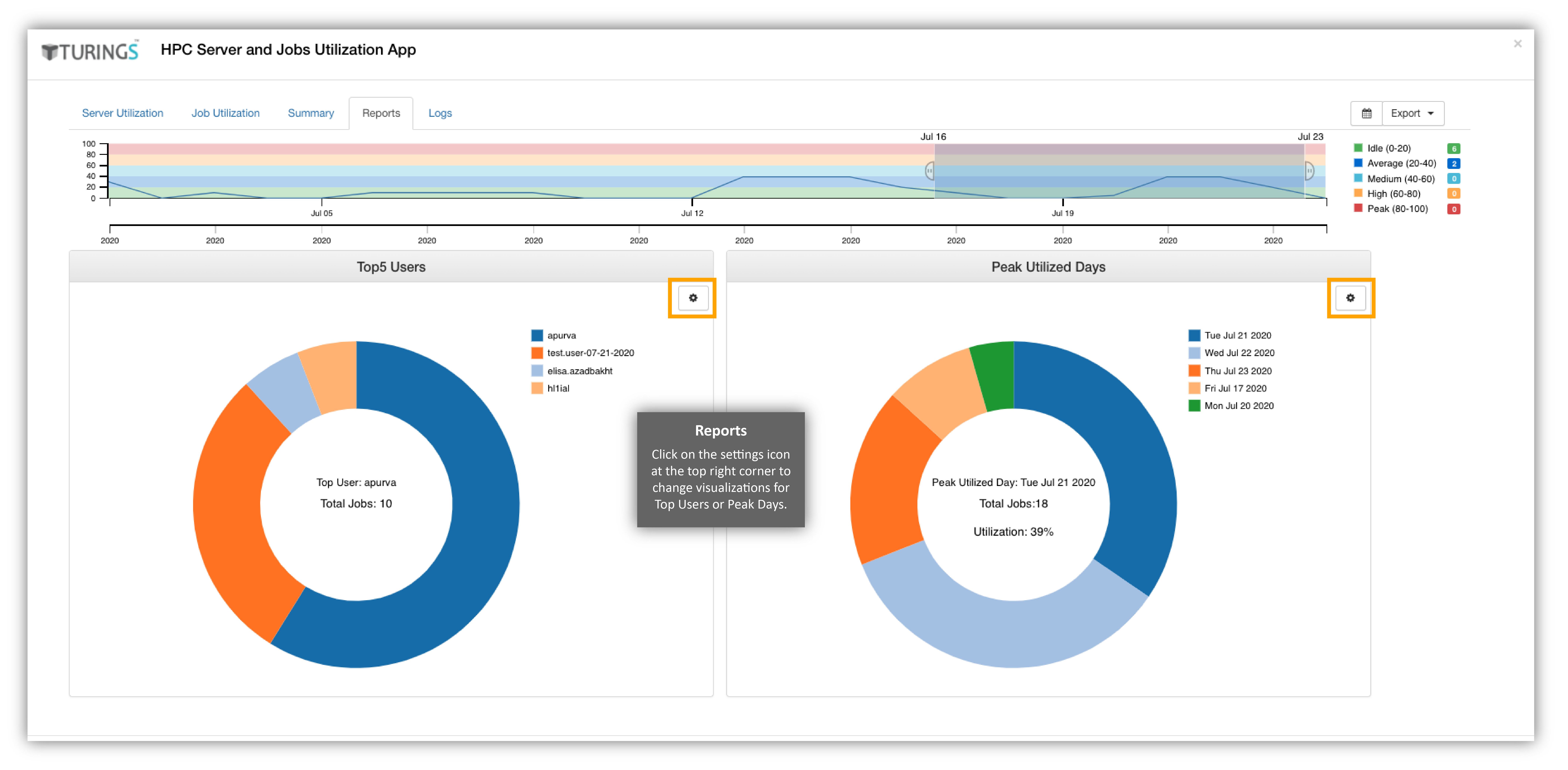

The Reports tab allows you to explore top users/queues/solvers and peak/minimum utilization days. Either graph’s settings can be changed by clicking on the respected button on the top right corner of their boxes.
Reports
Top 5 Users¶

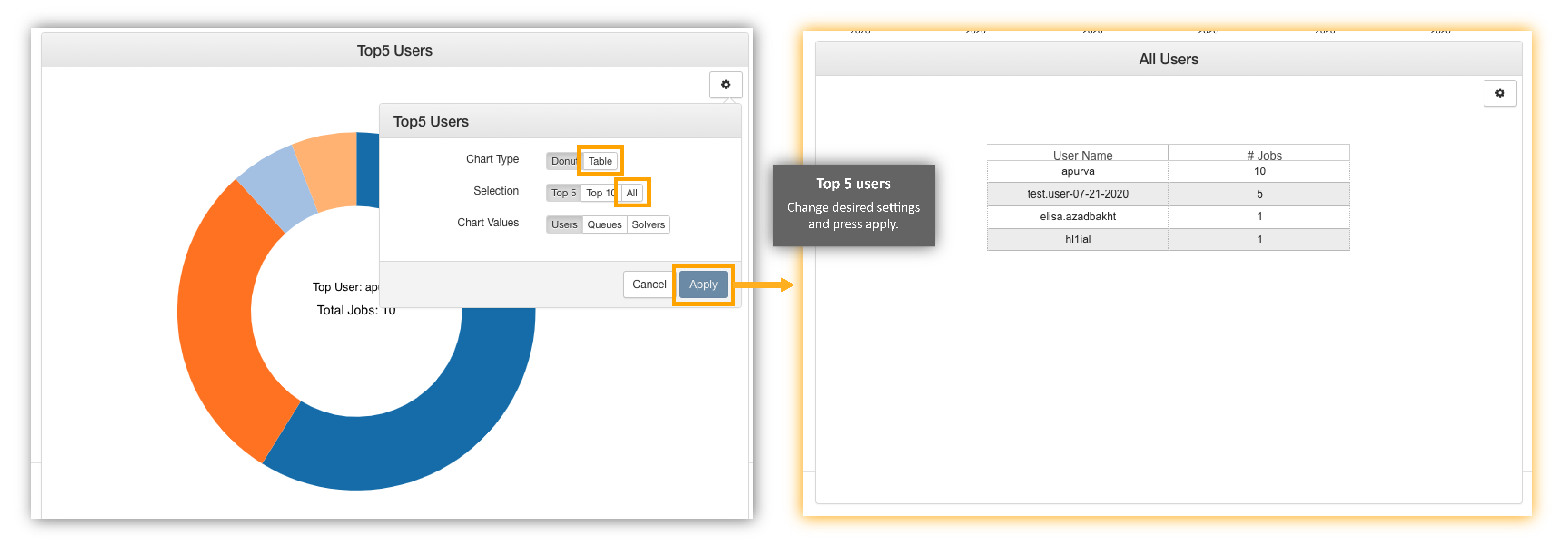

Change the Top 5 Users graph to Top 10 or All, a table instead of a donut or queues and solvers instead of users.
Top 5 Users to All Users
Peak Utilized Days¶

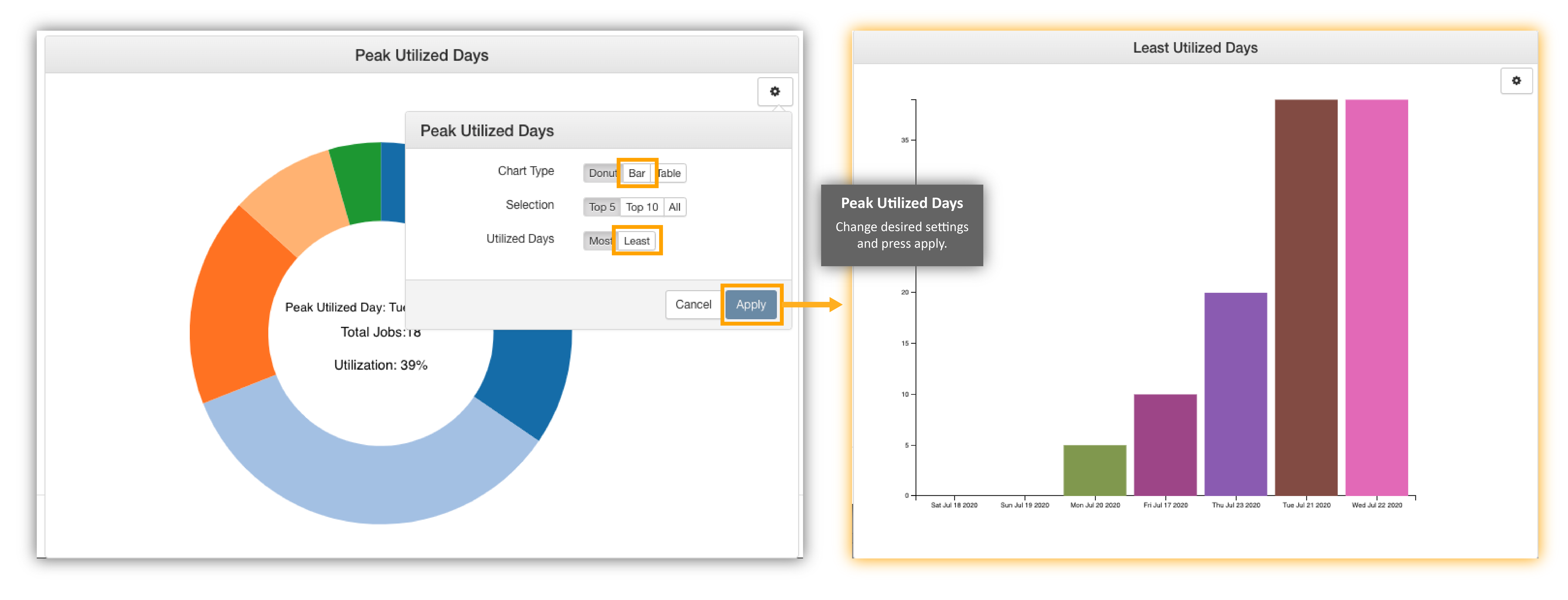

Change your peak utilization to a bar or table, view top 10 or all, and change to see the least utilized.
Peak Utilized Days to Least Utilized
10.7. Logs¶

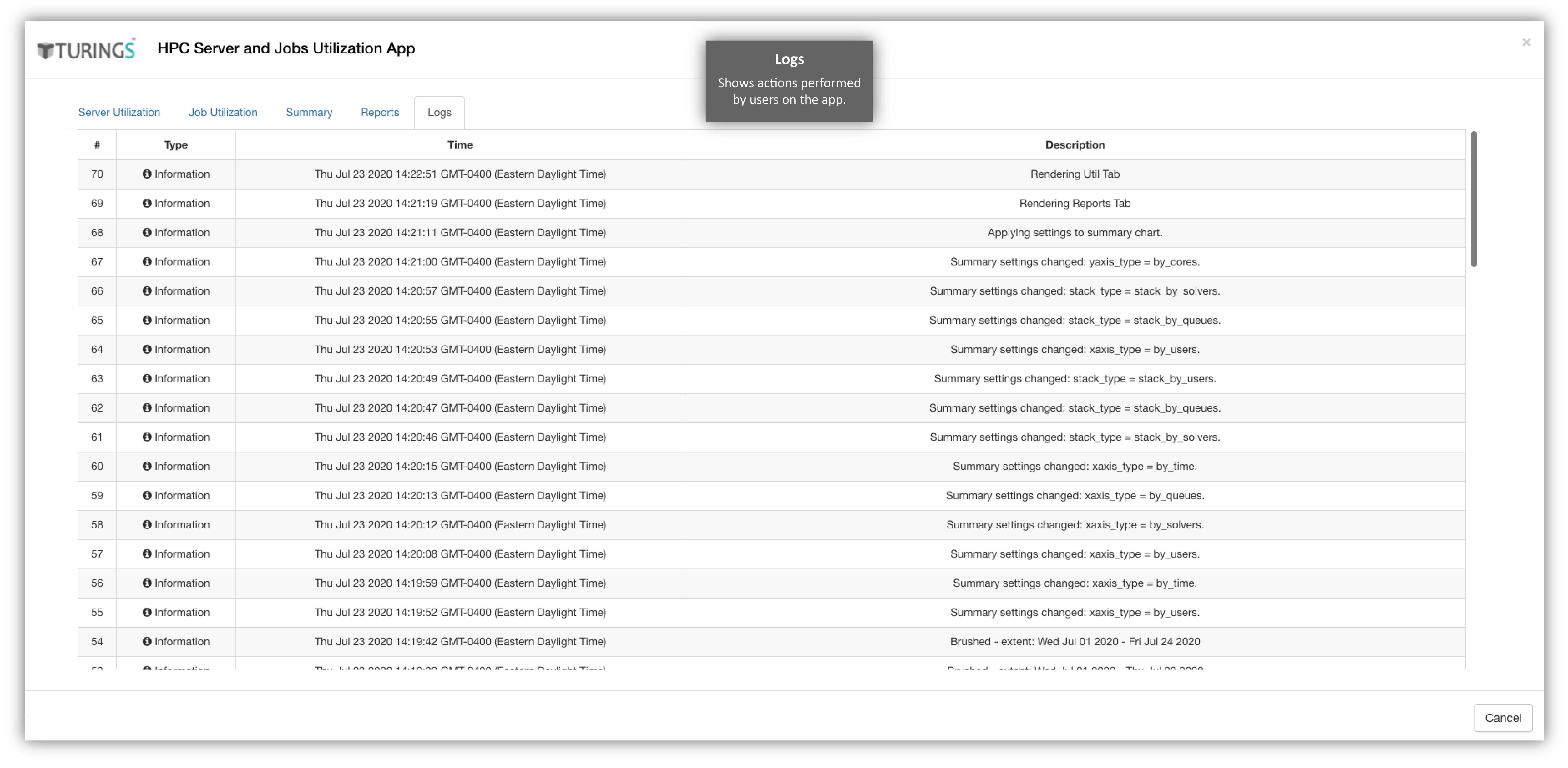

The last tab shows all the actions that have been performed on the Turings app by users on the server.
Logs
10.8. Export¶

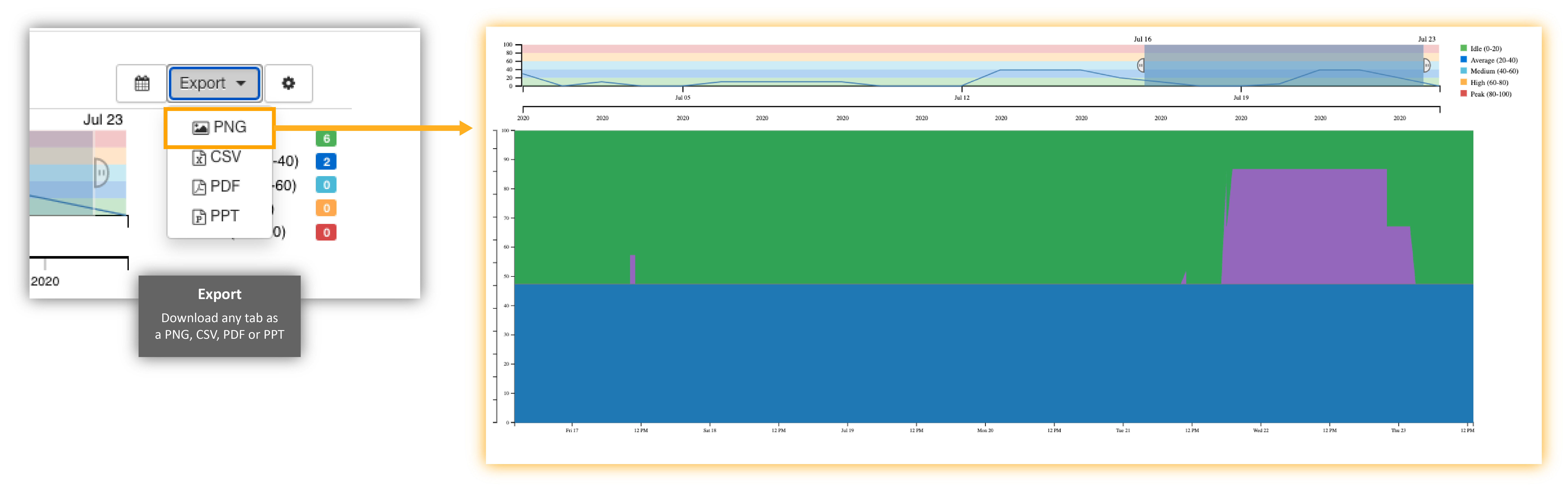

Finally, you can export any tab as a PNG, CSV, PDF or PPT under ”Export” in the upper right corner.
Export
For additional questions about how to navigate the d3VIEW platform, please feel free to email our team at: support@d3view.com.
