CURVE_ENGSTRESS_STATS

CURVE_ENGSTRESS_STATS now has a new option called Yield-type which can now use linearity

Let us see example of the yield type outputs compared to Inputs.

Example1

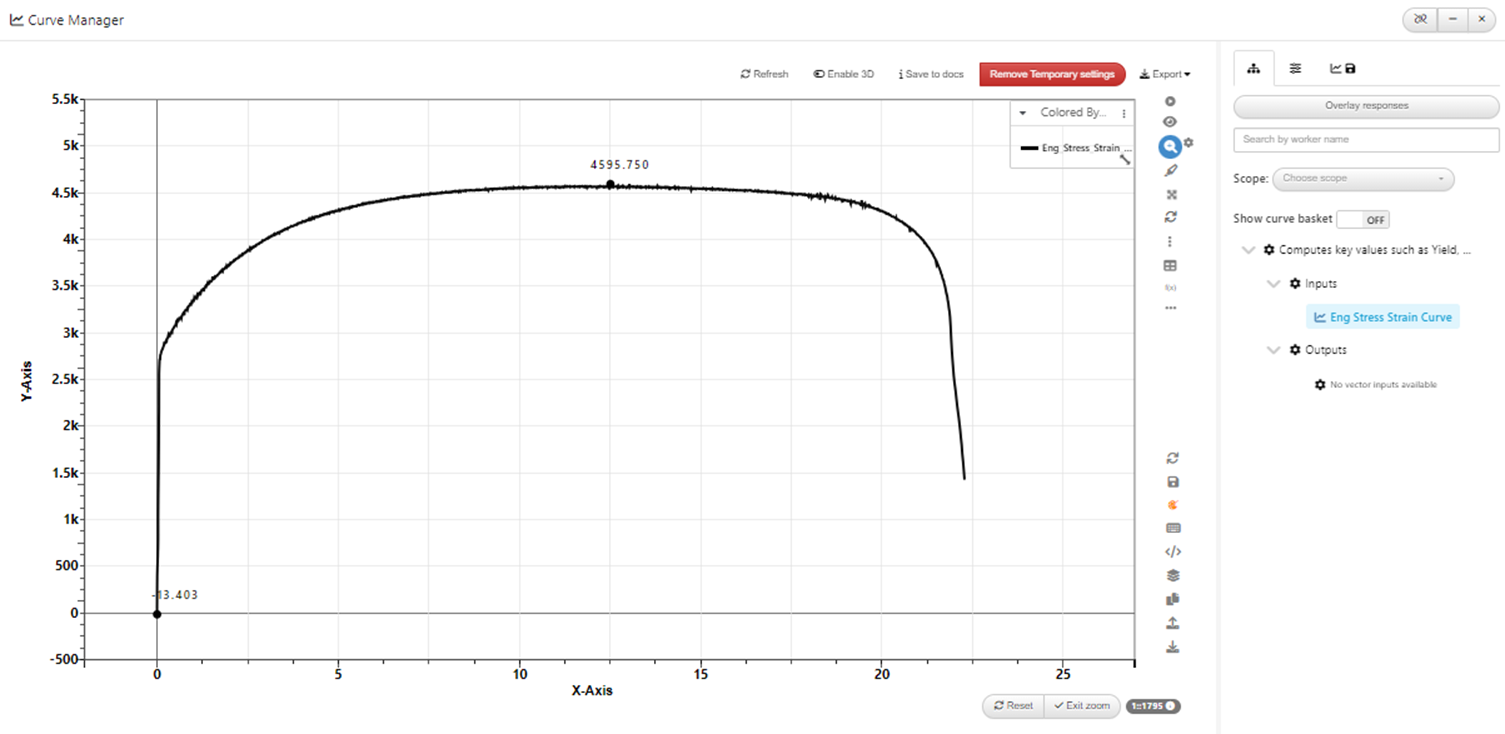

Input curve

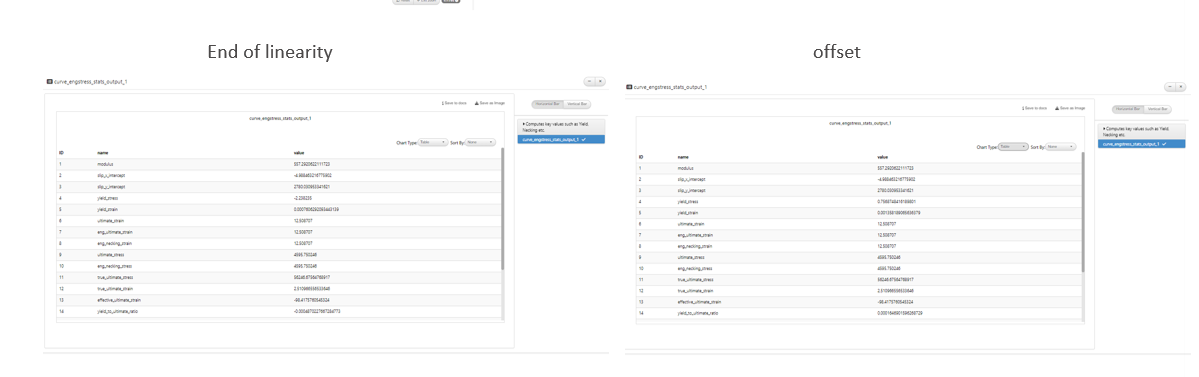

Output with Yield types

Example2

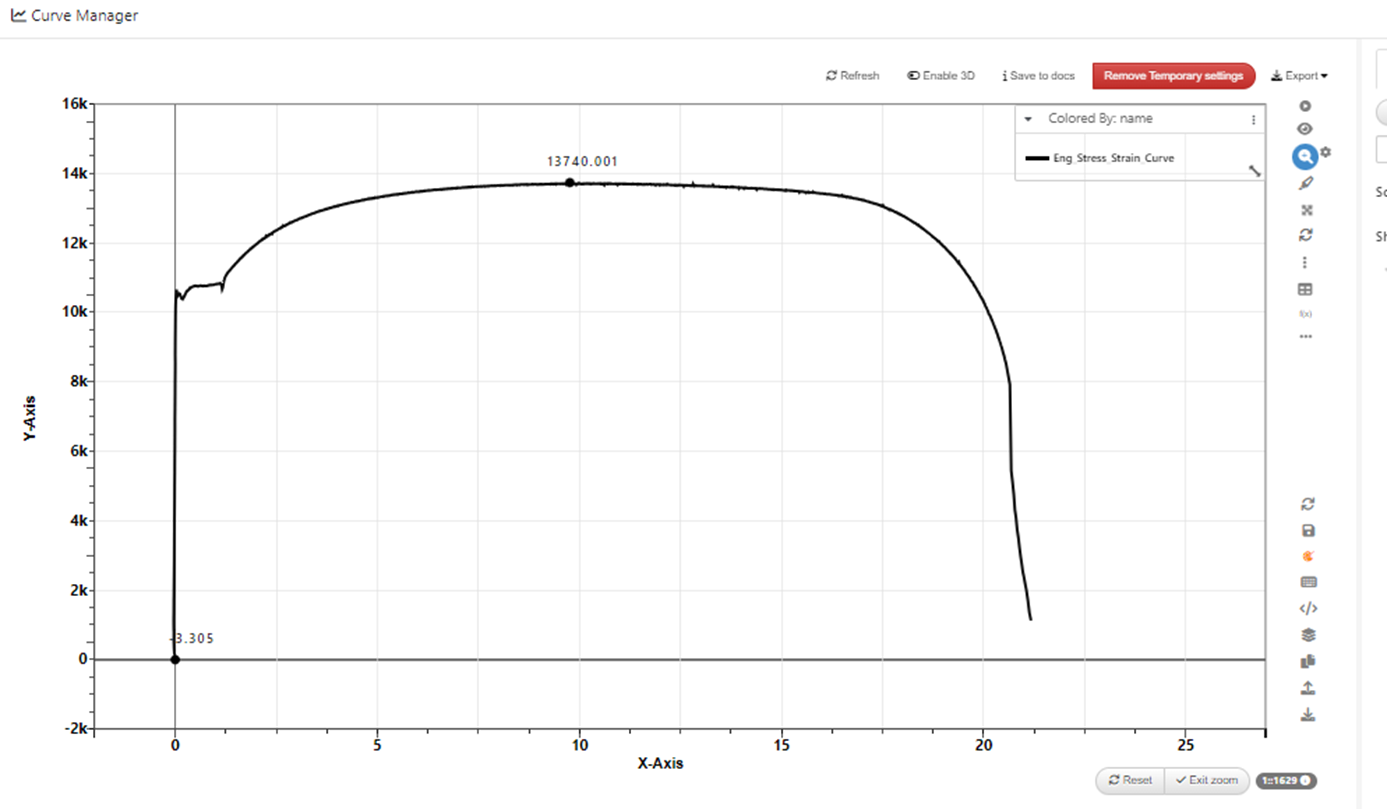

Input curve

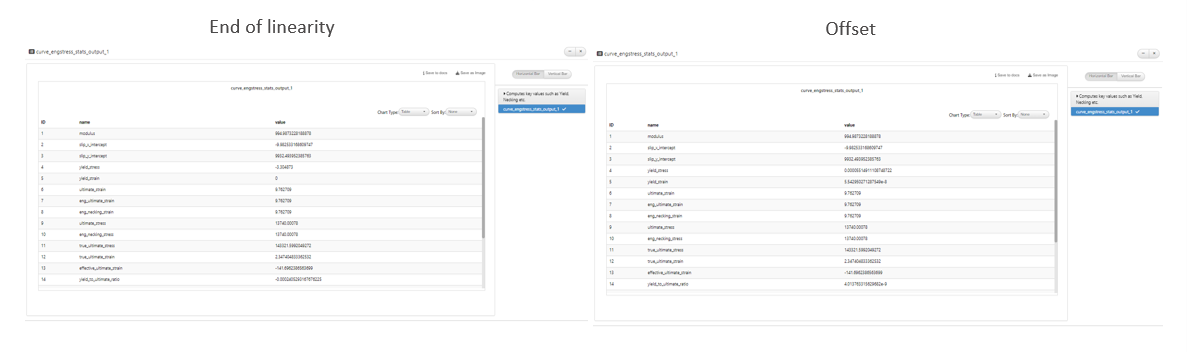

Output with Yield types

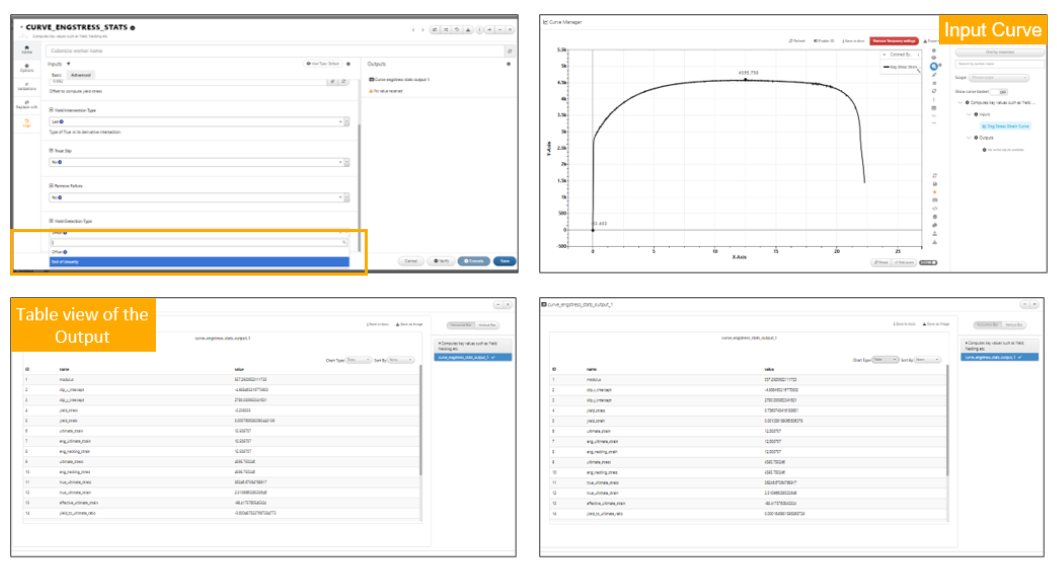

*CURVE_ENGSTRESS_STATS worker now has a new option called Yield-type which can now use linearity in Workflows.​

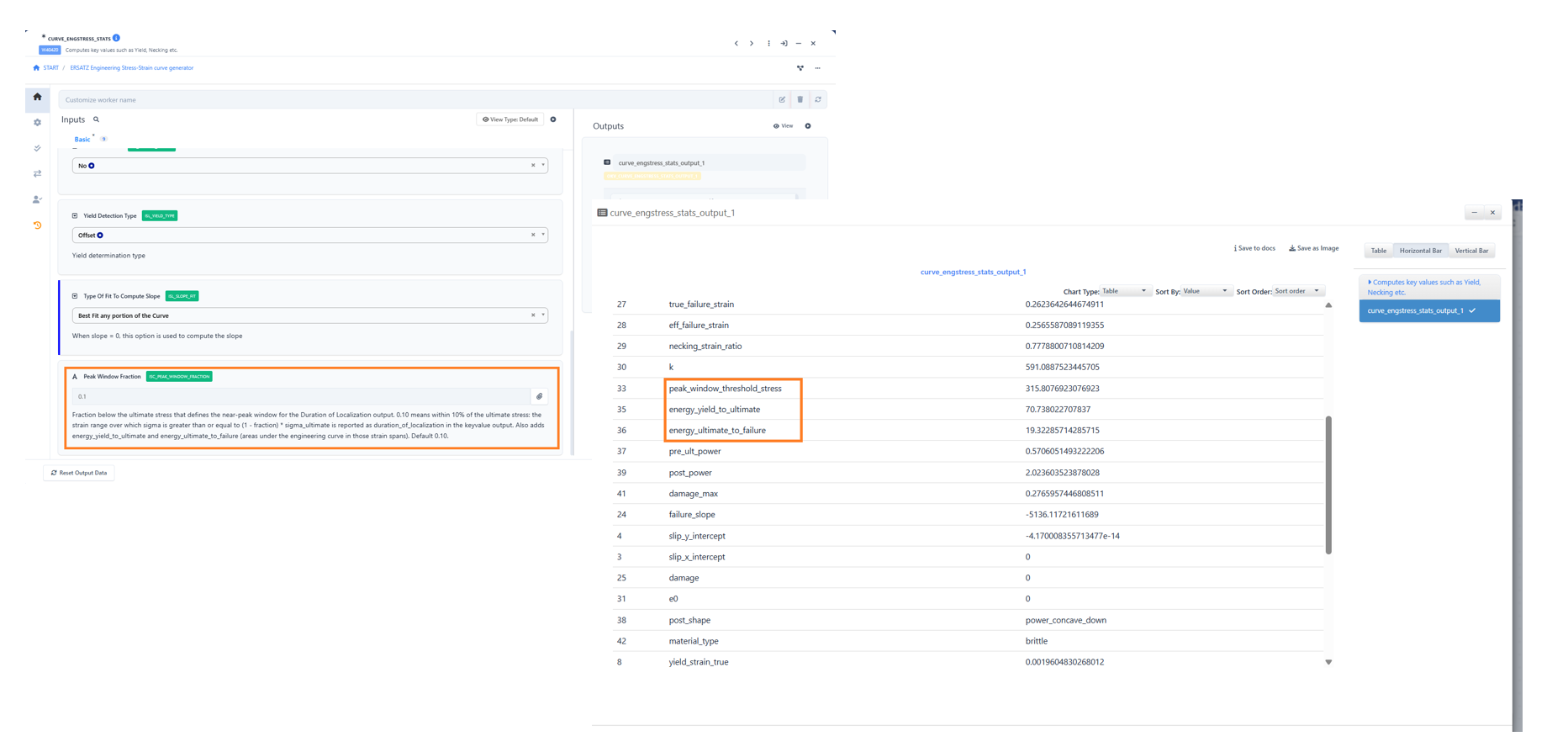

Added a new option Peak Window Fraction to the CURVE_ENGSTRESS_STATS worker.

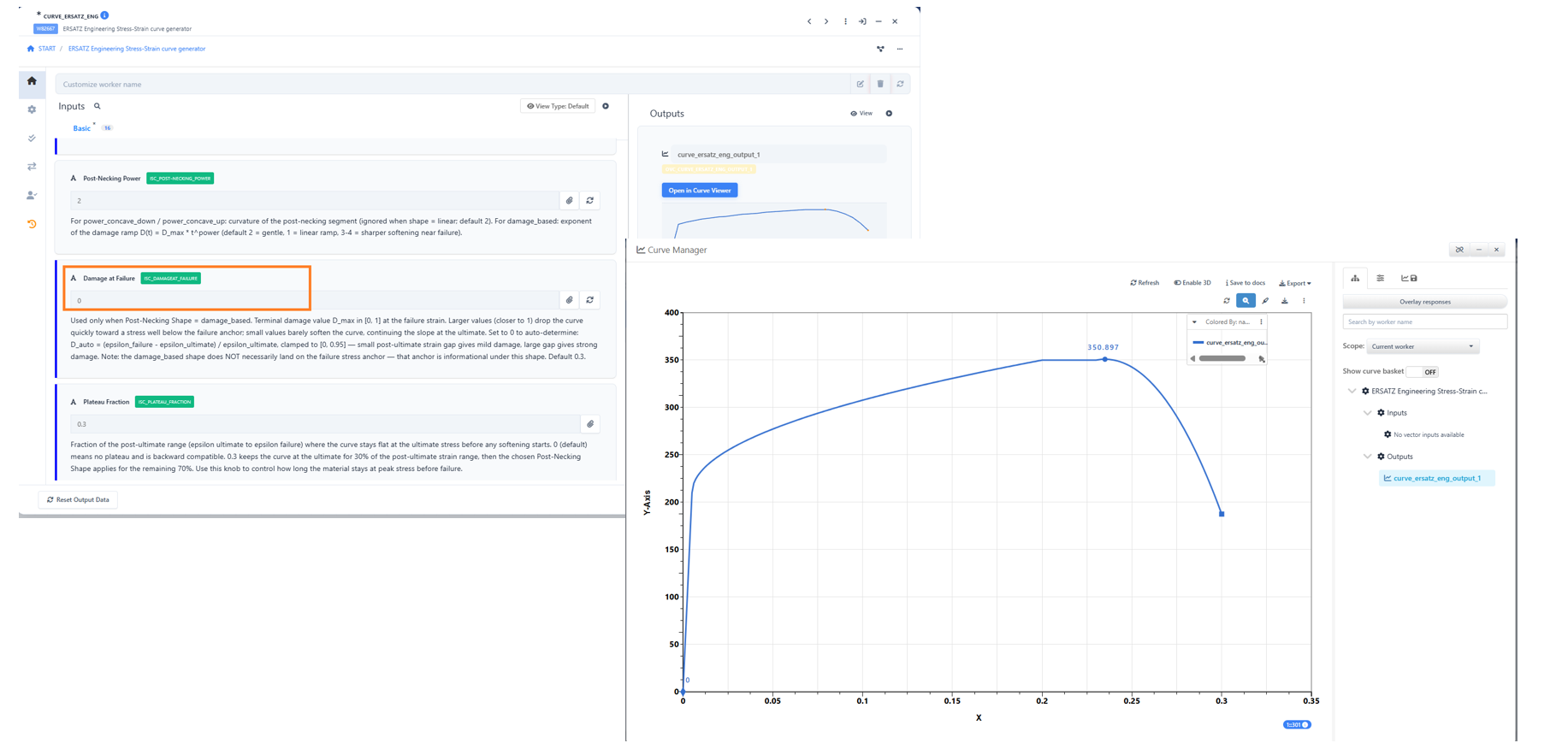

Added a new option Damage at Failure = 0, which auto-derives the value from the strain gap, to the CURVE_ENGSTRESS_STATS worker.
