CURVES_CROSSPLOT¶

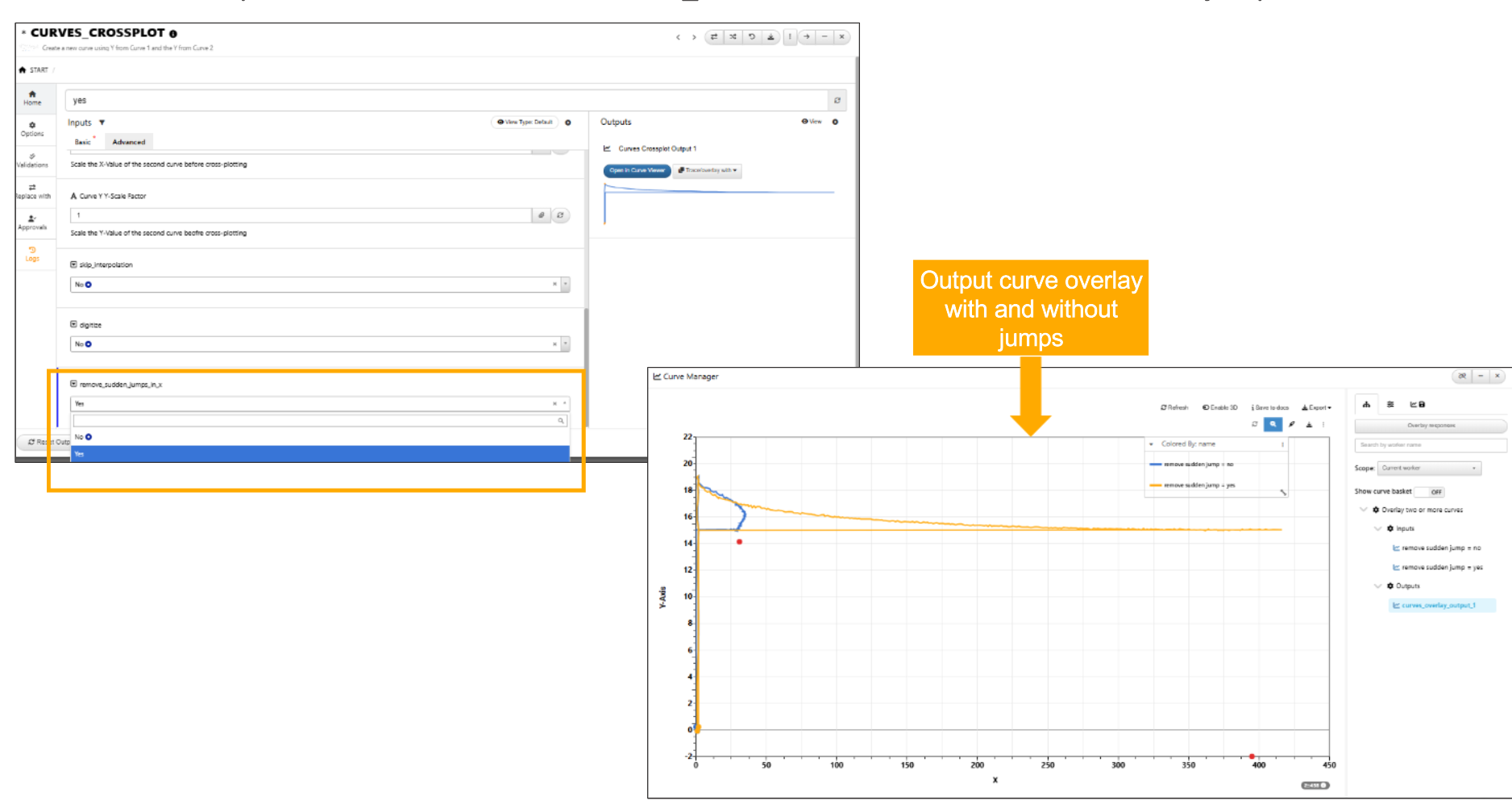

New option is now available in *CURVES_CROSSPLOT worker to remove sudden jumps in the curve.

Behavior at the Detected Jump¶

Overview¶

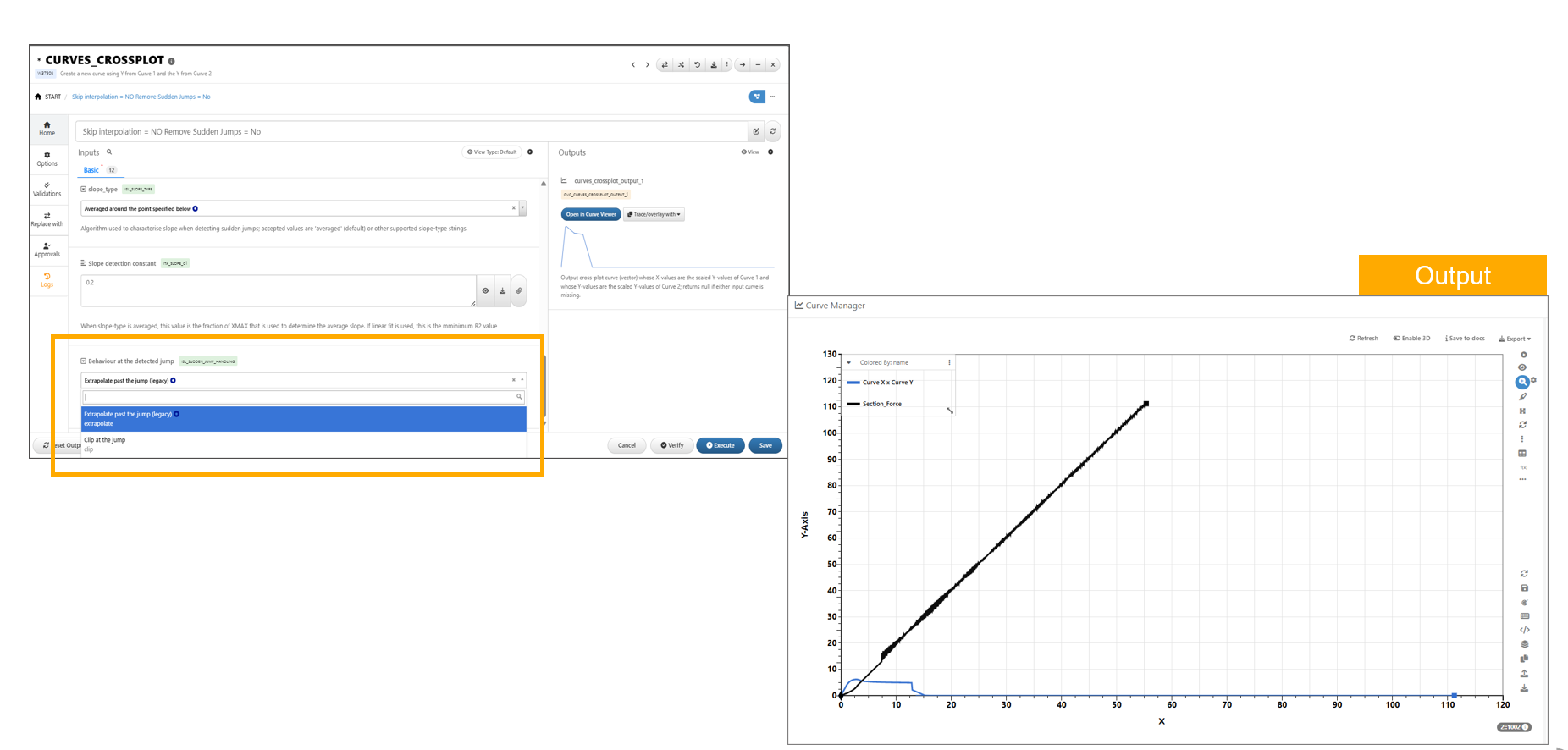

The CURVES_CROSSPLOT worker now includes a new input called Behavior at the Detected Jump, enabling improved handling of curve discontinuities during cross-plot analysis.

New Input¶

Behavior at the Detected Jump: Defines how the worker processes detected discontinuities (jumps) in curve data, allowing better control over visualization and analysis.

CURVES_CROSSPLOT: Extrapolate from Peak Option¶

Overview¶

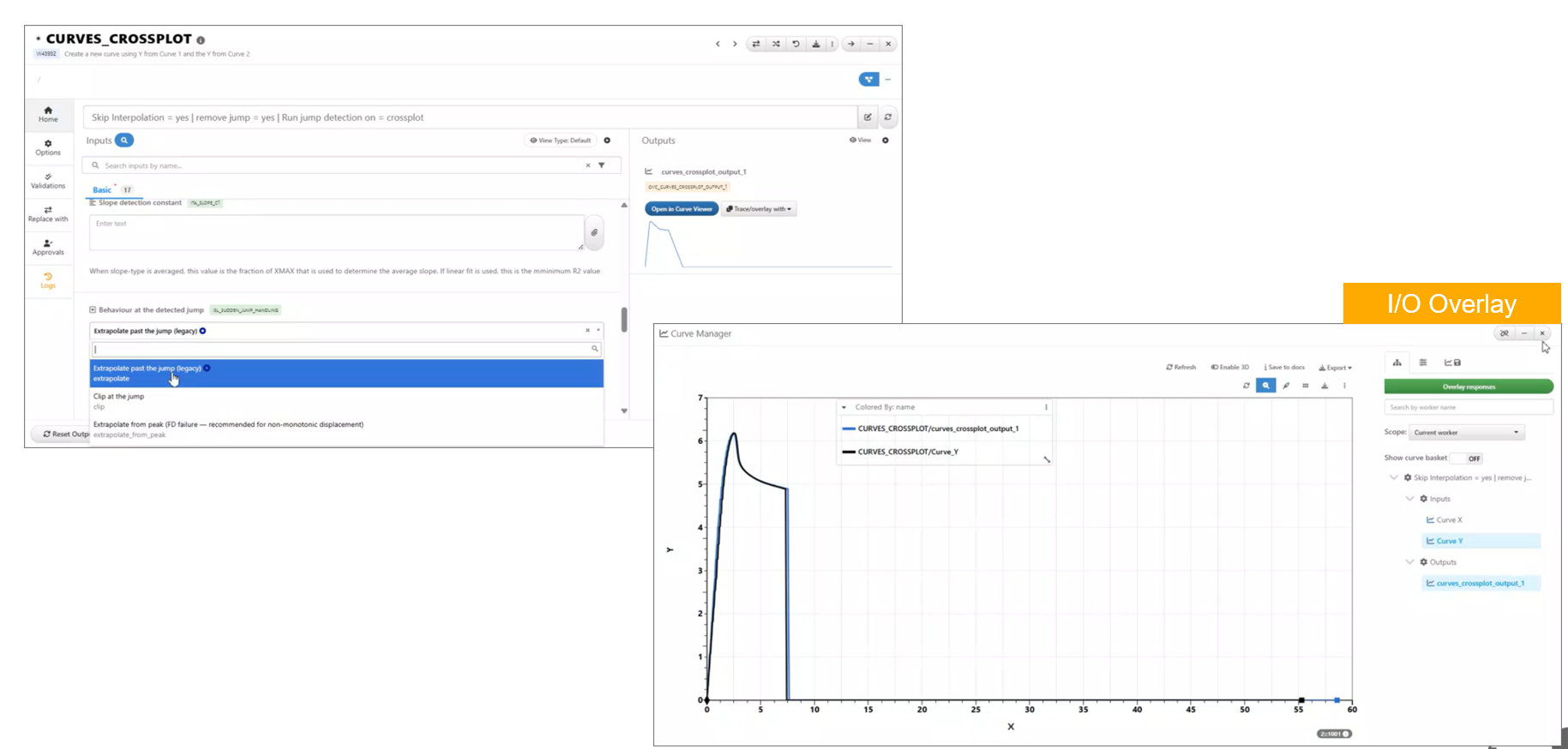

The CURVES_CROSSPLOT worker now includes a new Extrapolate from peak (FD failure …) option under the Behaviour at the detected jump settings. This enhancement enables smoother curve continuation after detected jumps during execution.

Feature Description¶

A new behavior option has been added for handling detected jumps in crossplot curves. When the Extrapolate from peak (FD failure …) option is enabled, the worker can continue the curve more smoothly after a detected discontinuity or failure-related jump.

This option is designed to work together with:

remove_sudden_jumps_in_x=yes

to improve curve continuity during processing.
