CURVE_TRUETOEFFECTIVESTRESS

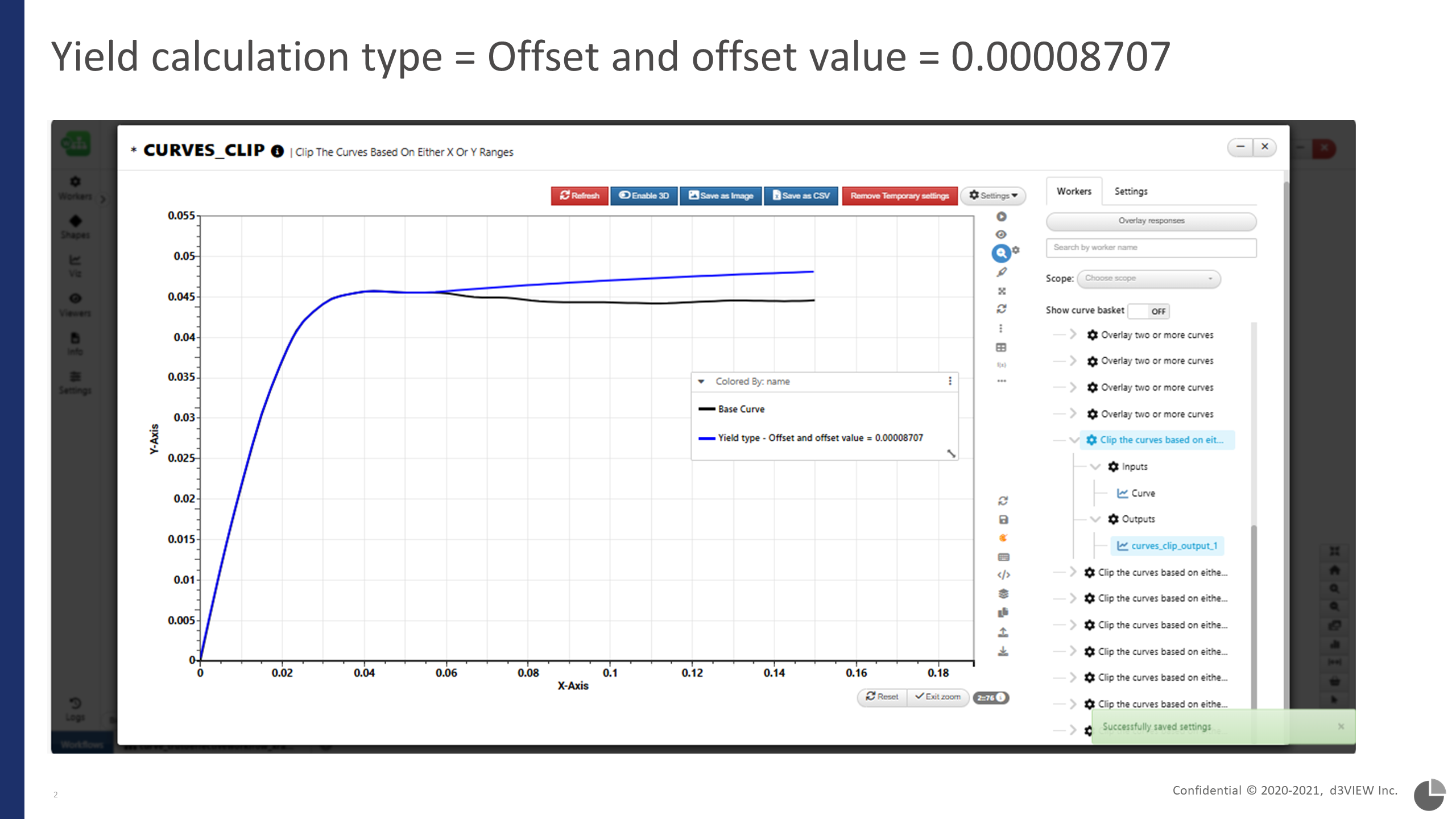

Yield calculation type with offset value - 0.00008707

Yield calculation type = Offset

:sup: Yield calculation type = Offset

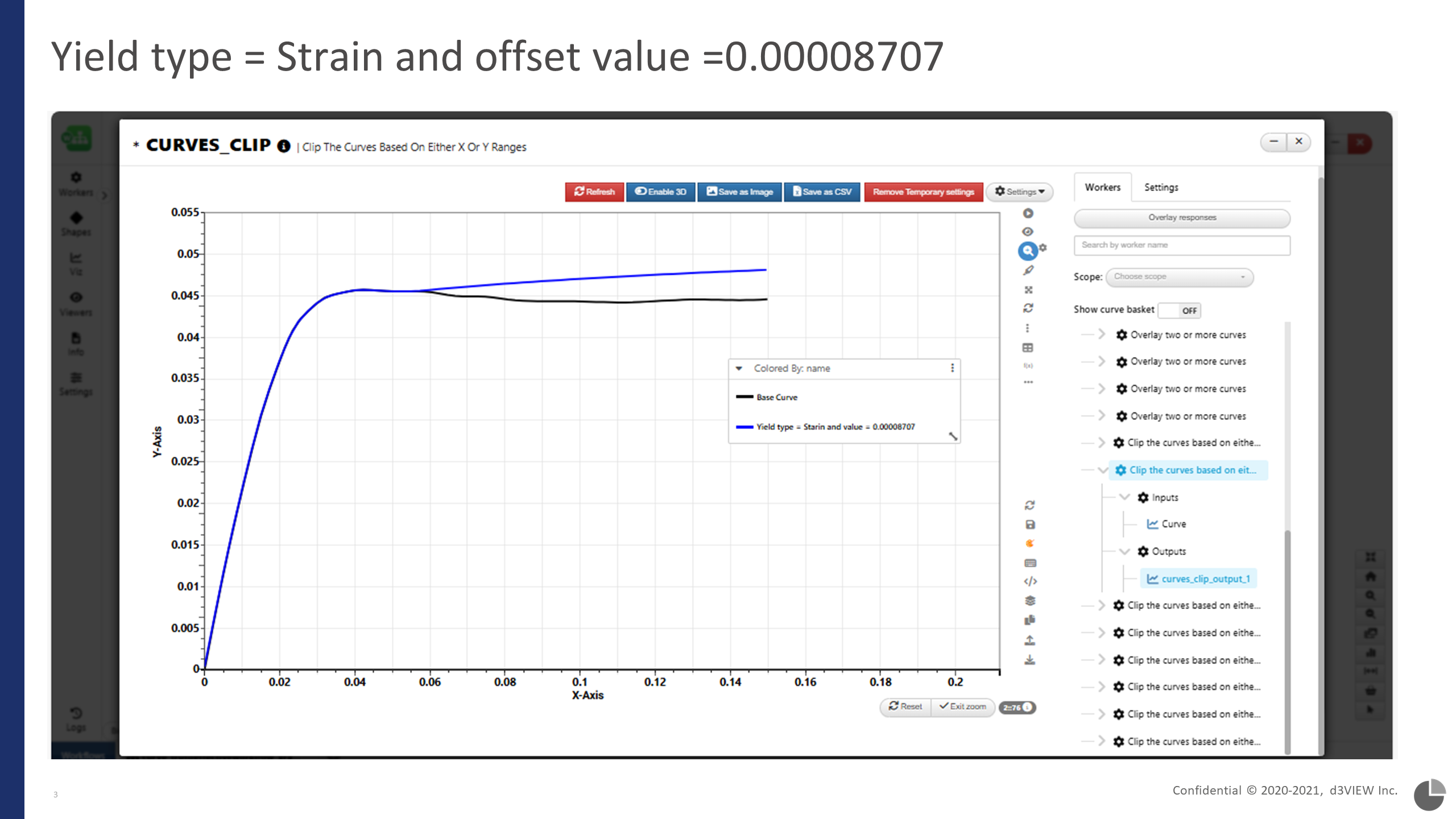

Yield type = Strain

:sup: Yield type = Strain

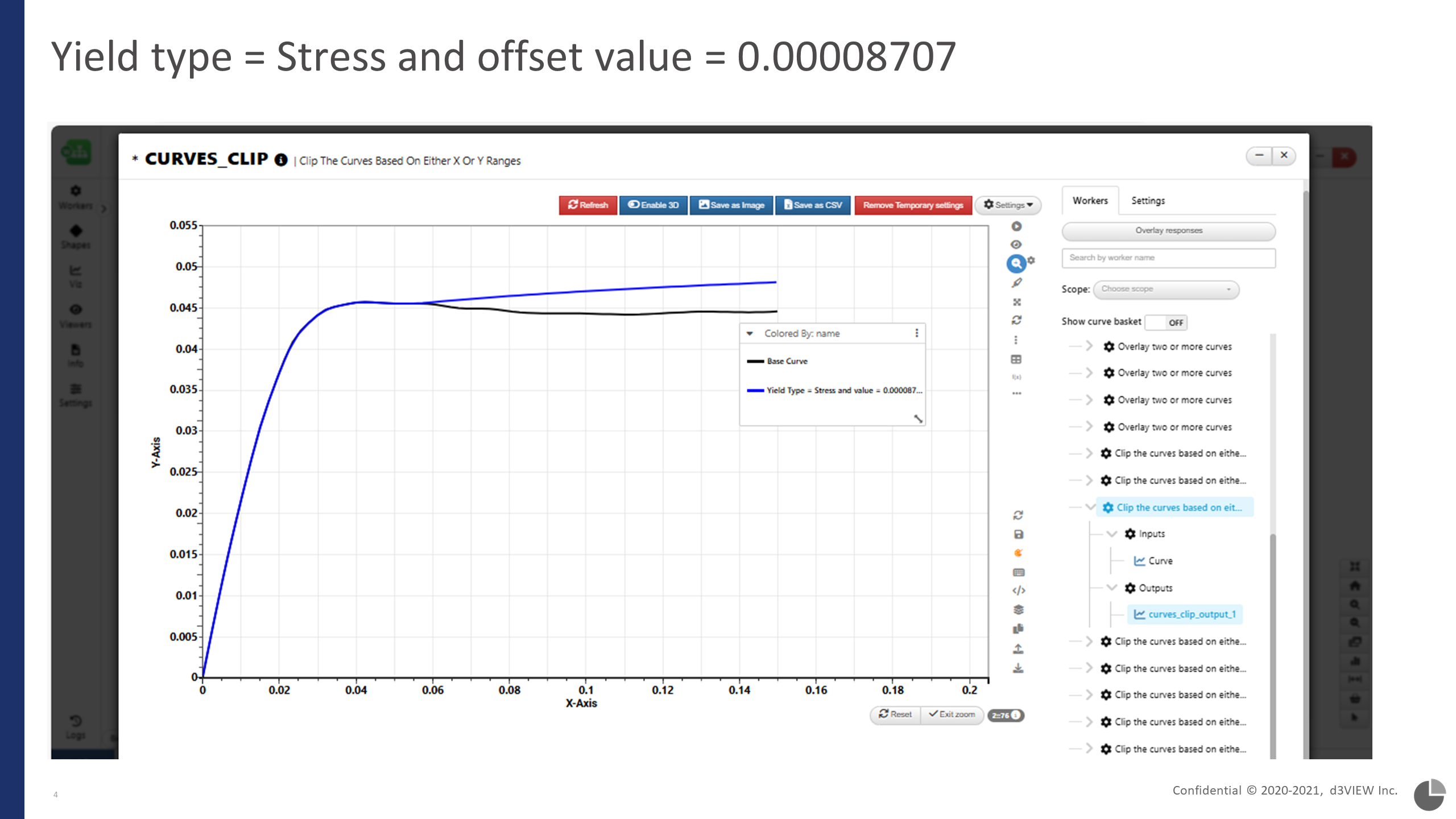

Yield type = Stress

:sup: Yield type = Stress

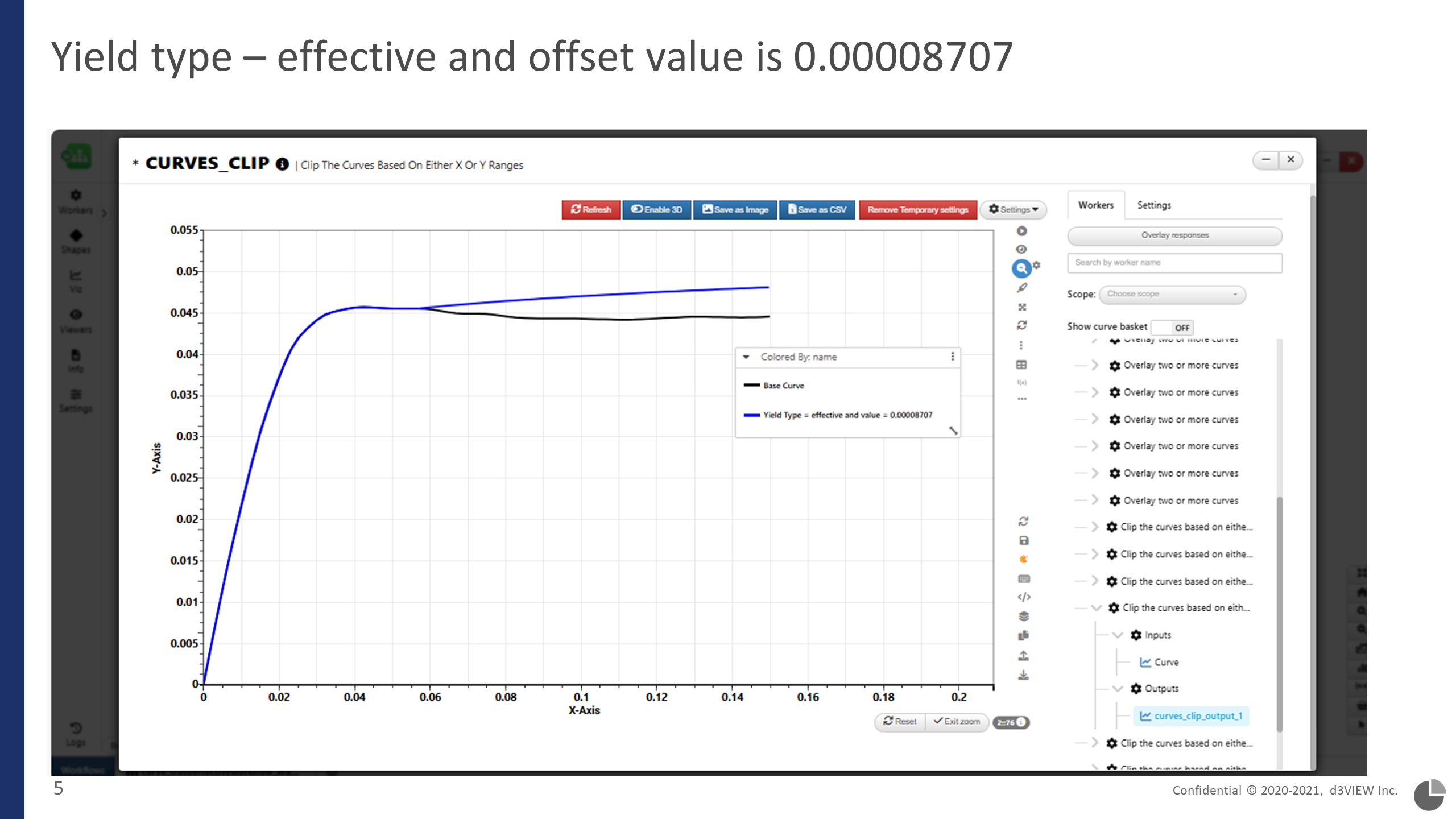

Yield type = effective

:sup: Yield type = effective

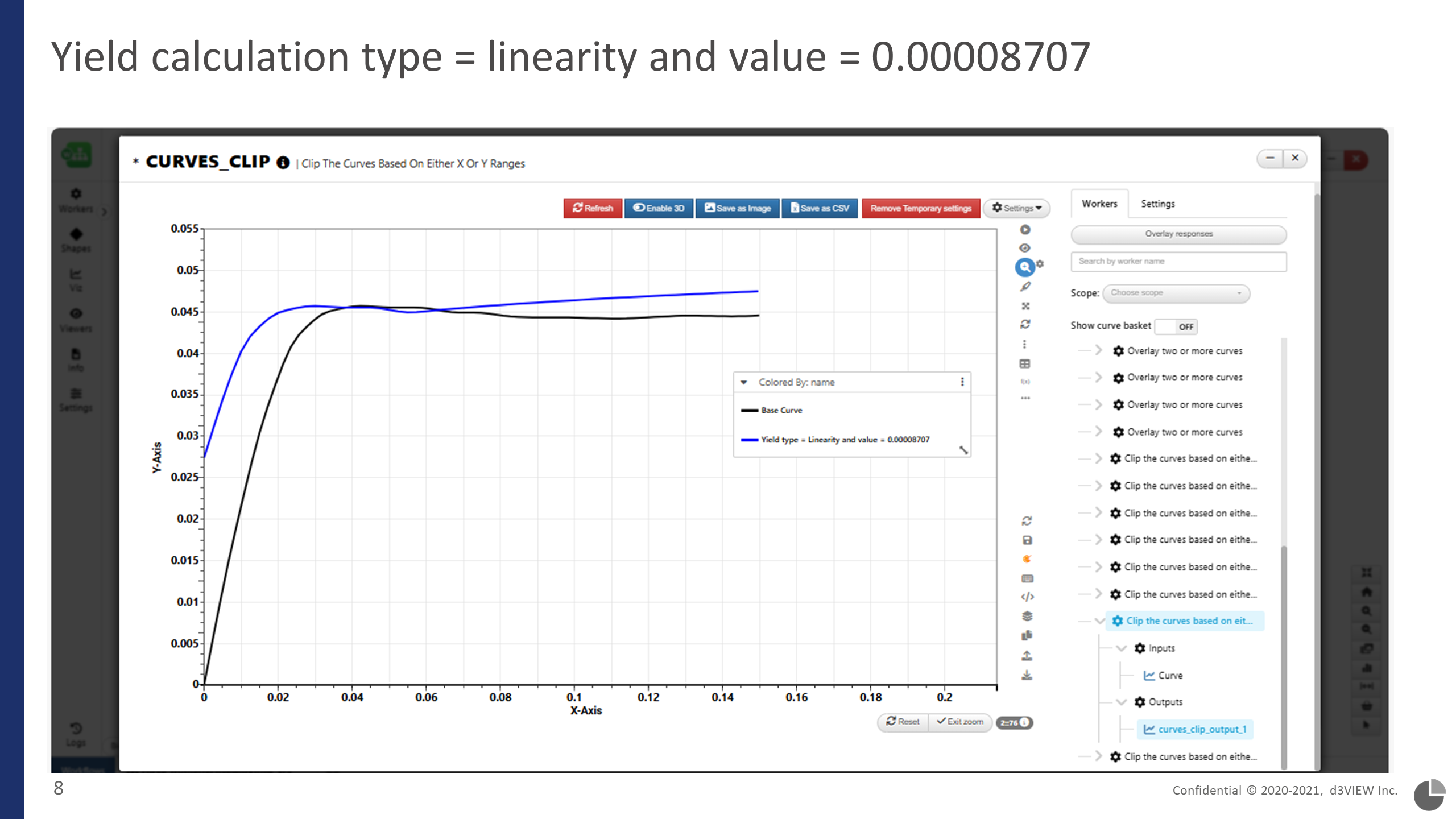

Yield calculation type = linearity

:sup: Yield calculation type = linearity

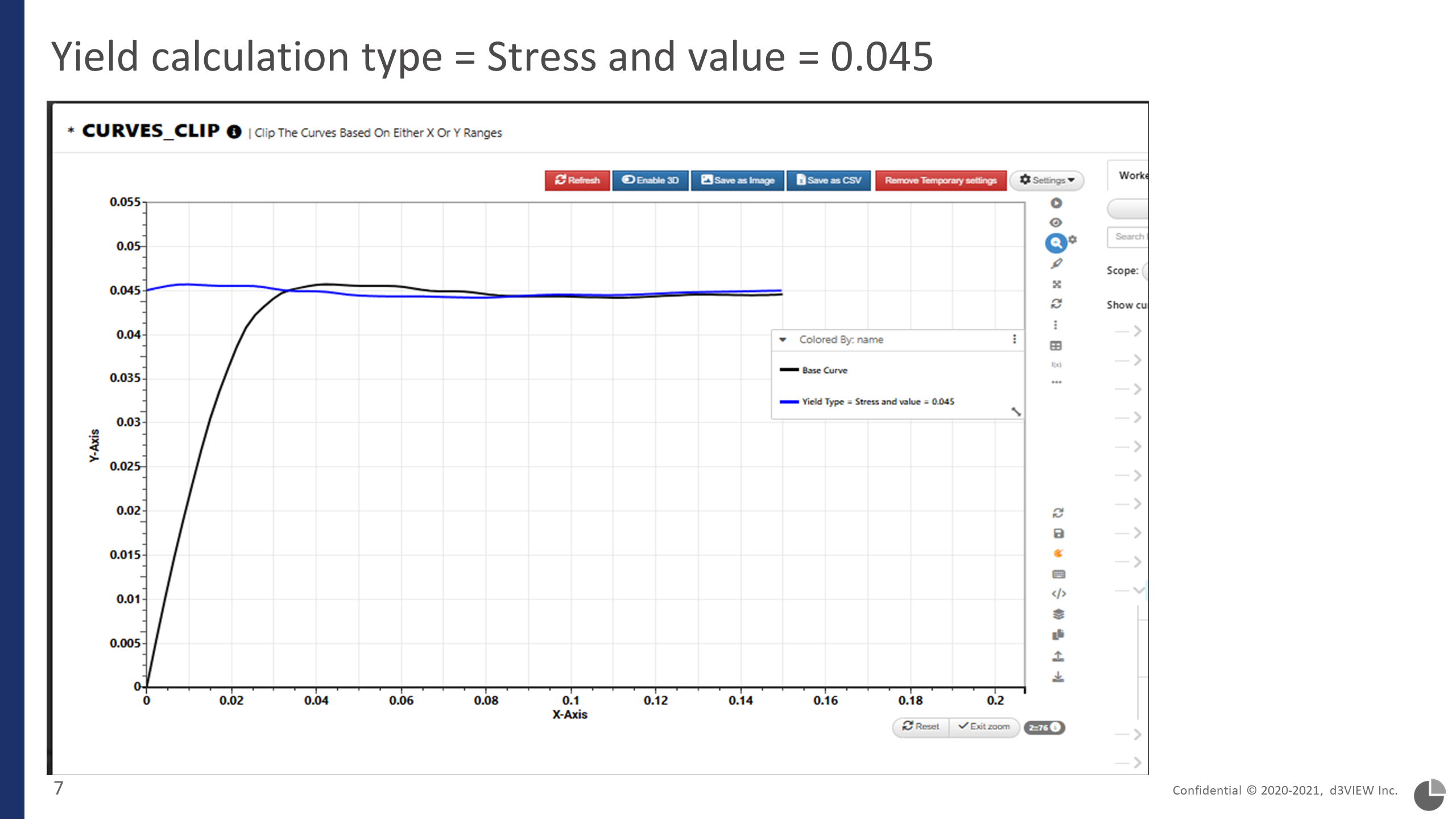

Yield calculation type = Stress and value = 0.045

:sup: Yield calculation type = Stress and value = 0.045

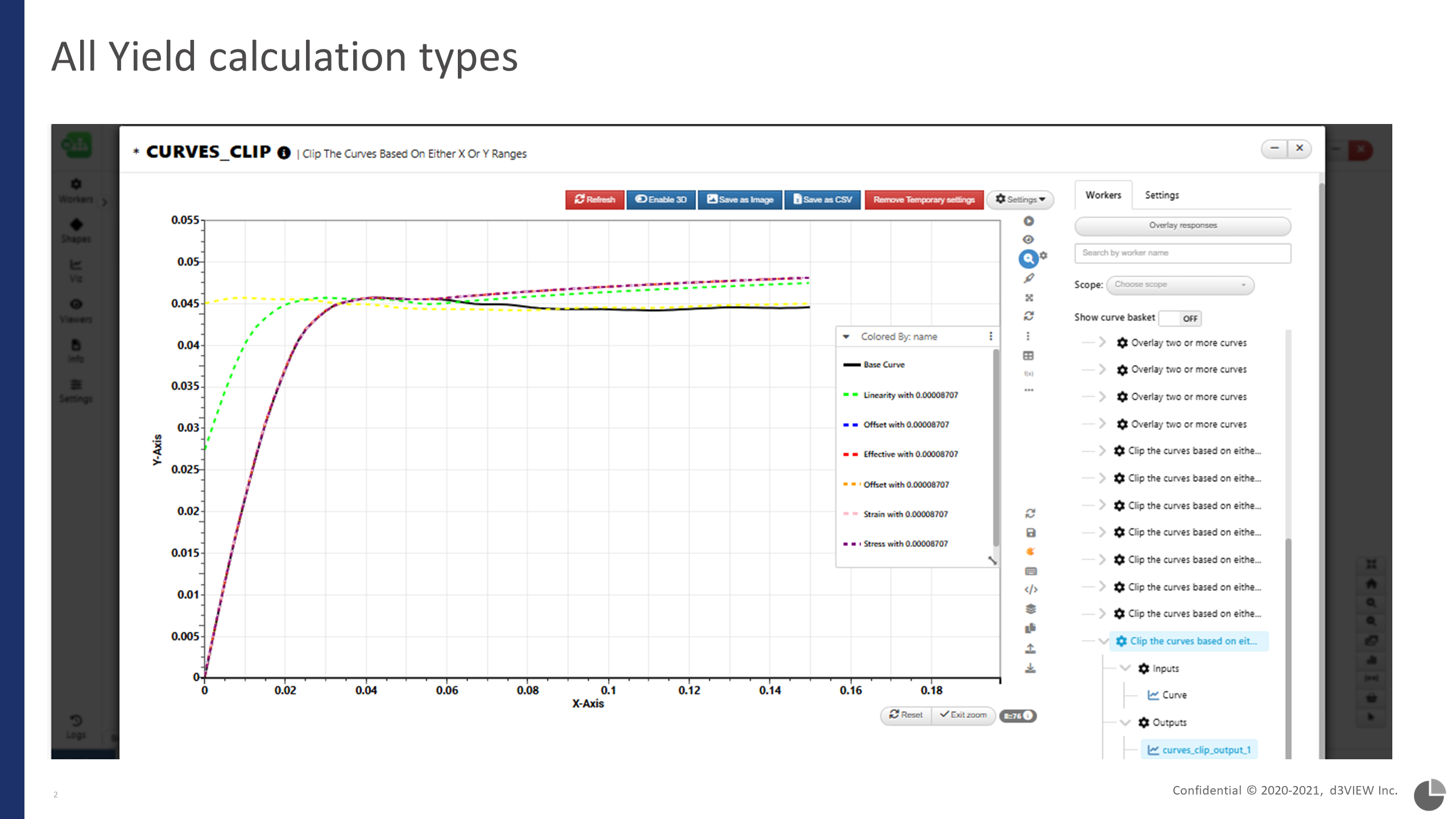

All Yield calculation types

:sup: All Yield calculation types

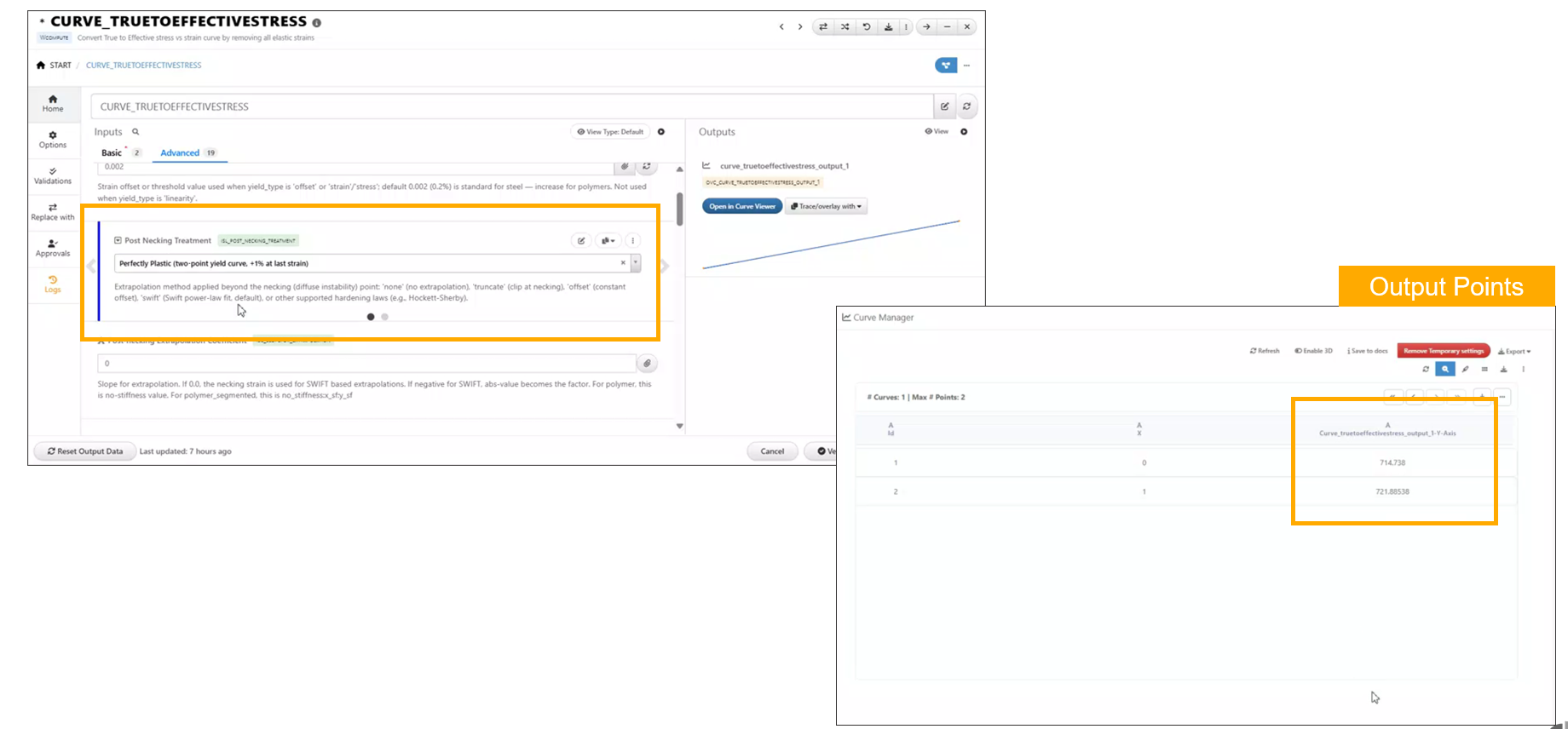

Perfectly Plastic Post Necking Treatment

Overview

The CURVE_TRUETOEFFECTIVESTRESS worker now includes a new post necking treatment option called Perfectly Plastic (two-point yield curve, +1% at last strain). This enhancement provides a simplified method for defining post-necking material behavior.

Feature Description

A new option has been added under Post Necking Treatment to support perfectly plastic material behavior modeling after necking occurs.

The available option is:

Perfectly Plastic (two-point yield curve, +1% at last strain)

This treatment generates a simplified two-point yield curve with an additional point defined at 1% beyond the final strain value.
