LSDYNA_D3PLOT_PER_PART_CSV Worker¶
The Workflows platform introduces a new specialized worker: LSDYNA_D3PLOT_PER_PART_CSV. This component automates the extraction and parsing of binary output files into highly structured, comma-separated data.
Overview¶

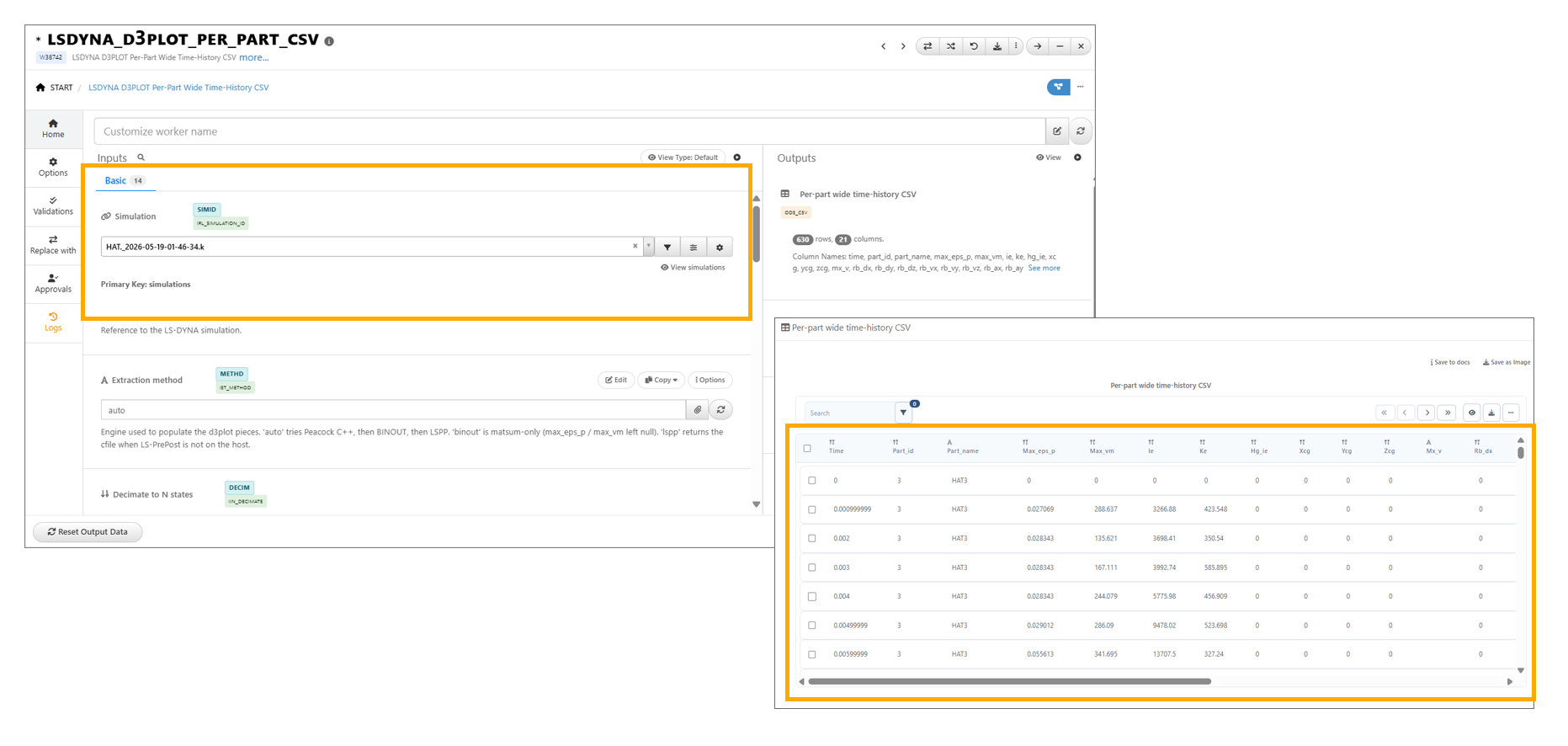

The LSDYNA_D3PLOT_PER_PART_CSV worker processes LS-DYNA d3plot binary results files to generate dedicated, per-part wide time-history CSV outputs. This eliminates manual post-processing steps when analyzing individual structural parts, components, or material sets across a simulation timeline.
