SIMULATION_EXPORT_RESULT_GEOMETRY

New worker called *SIMULATION_EXPORT_RESULT_GEOMETRY is added to Workflows. This wokrer Exports Simulation Geometry into a Dataset- Parser a 3D Geometry file and exports the nodes and associated geometry.

This worker has Inputs like

1/ Select Simulation 2/ Geometry file is selected from simulation (d3plot) 3/ Part Ids and more

After executing the with the inputs.

we get Geometry output for d3plot file selected.

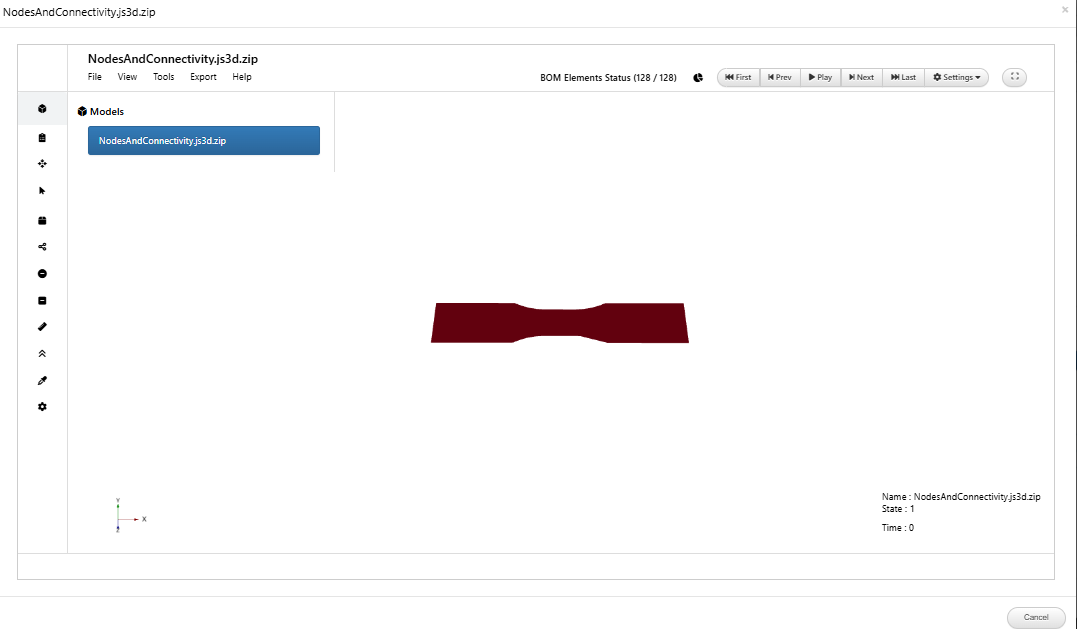

Output Geometry

we get Geometry output for d3plot file selected.

Here are some examples for emodels for the Peacock

1/ Uniaxial Specimen Peaccock

2/ Instrument panel Specimen Peaccock

3/ Shear Specimen Peaccock
