13. Peacock 3D

Peacock is a browser based 3D Data Visualizer thats aids in understanding data from Physics based simulation in addition to Geometry data. With built-in exporters in d3VIEW, Peacock works seamlessly to visualize data from CAD/CAE/ and has a tighter integration with LS-DYNA result files from D3PLOT/BINOUT and extracted data. Peacock is the third generation version and provides a intuitive interface that is simple and easy to use.

Please watch the tutorial video for Peacock features below.



Let us see some features in peacock in detail.

13.1. Getting Familiar with Peacock Interface

3D Peacock model options and canvas

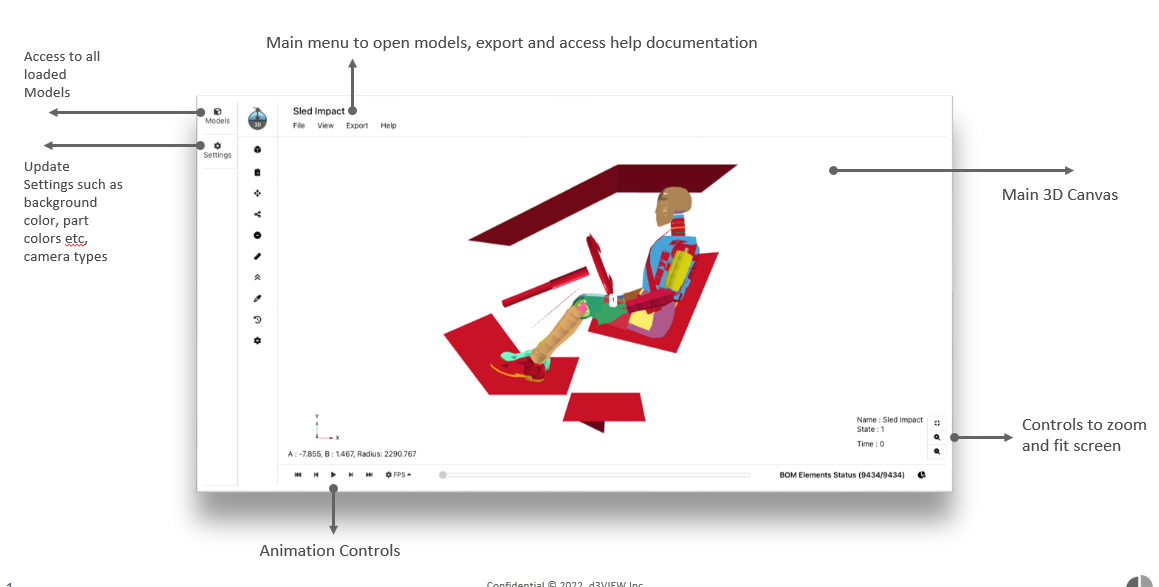

Below Image shows the Peacock model with features available on the canvas.

  1. Models
  2. Settings
  3. main menu options
  4. Animation controls
  5. Control to zoom and Fut screen.


Addtional settings

Settings like BOM viewer, fringes, views , lights and assembly are available for the peacock.

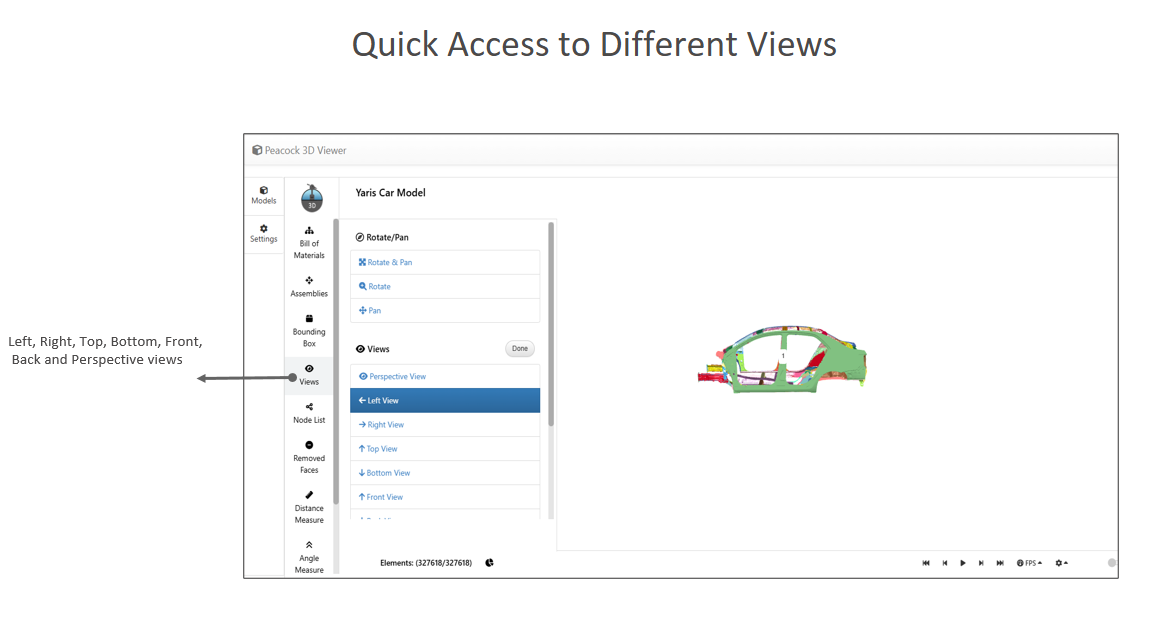

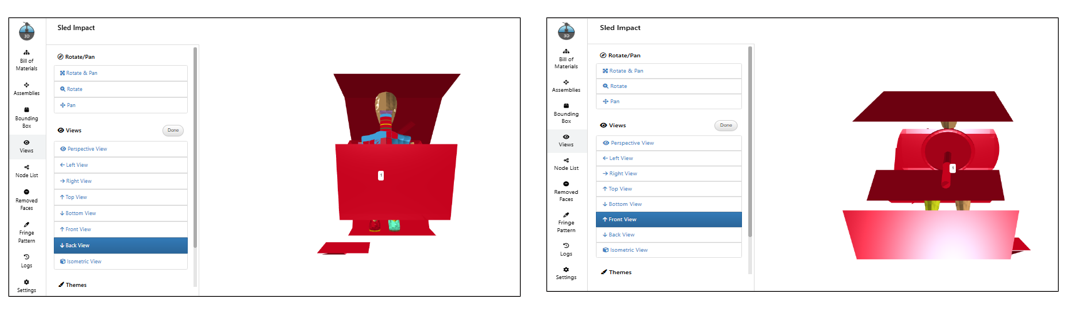

Views of the model

Peacock model can be viewed in differnt side and views such as Left, Right, Front, Back, Top and Bottom.

This option is available under views in header bar and also in the right click context menu options.

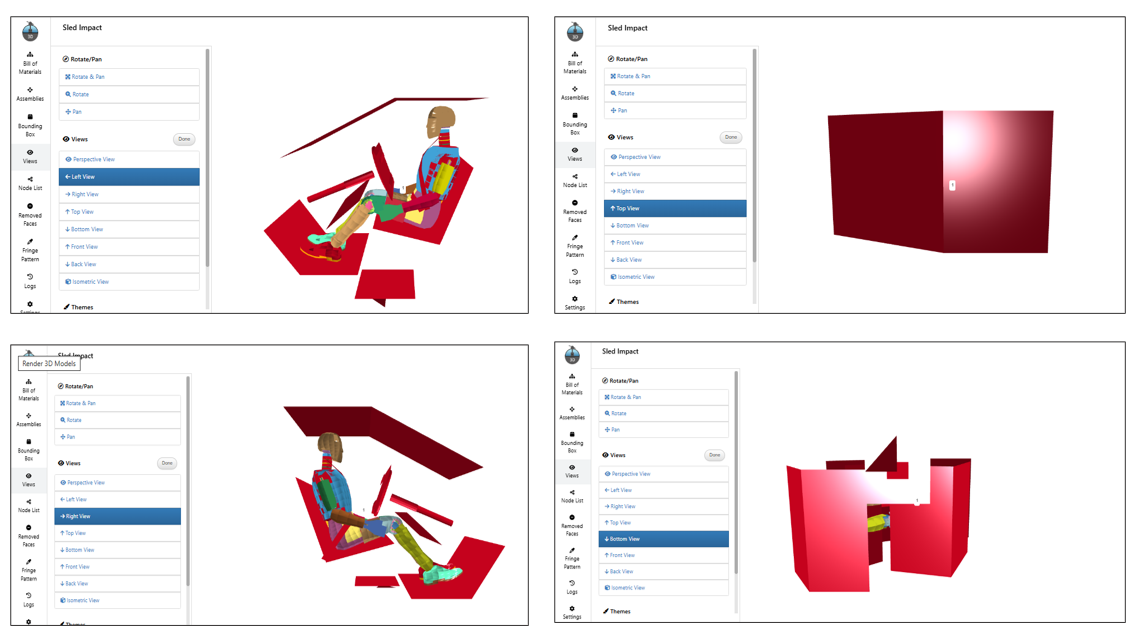

Views examples





Below video shows different views of the model.

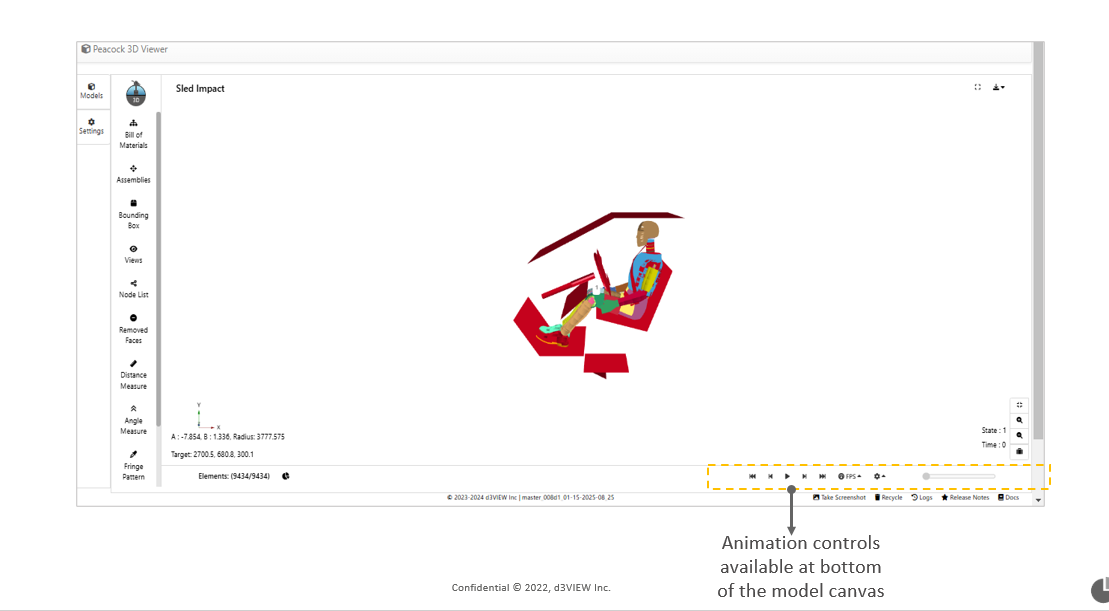

Animation controls of the model

Peacock model support Animation.

The Animation controls are available for the Peacock model with options to play, pause, next and previous.

The Animation of the model renders morphtargets and play the model.

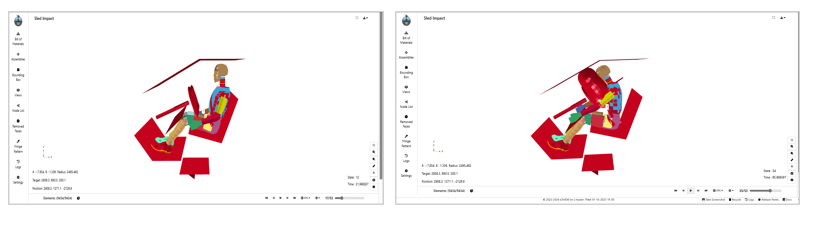

Animation examples



Below video shows an example for animation.

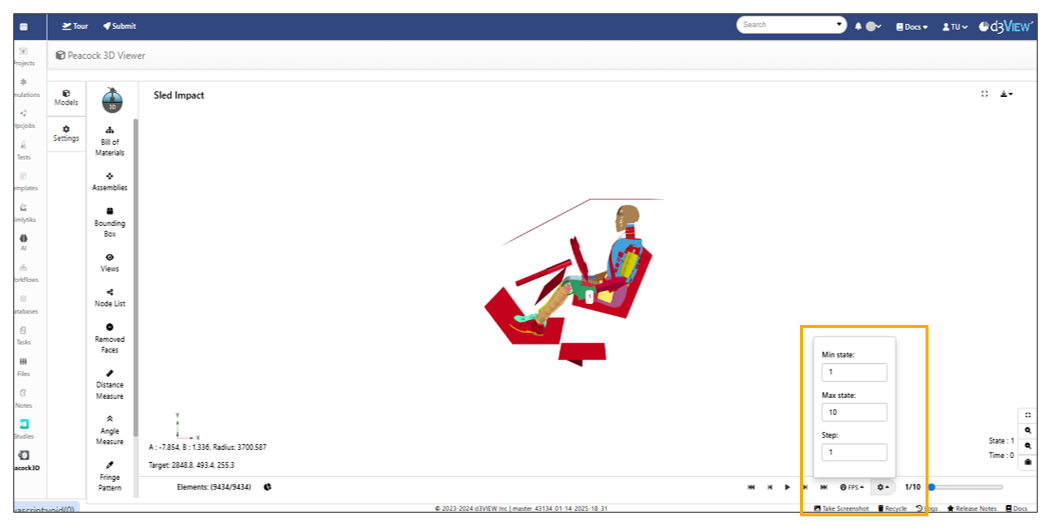

Min/max/step support for animation slider in the settings dropdown beside FPS is available for Peacock model.​

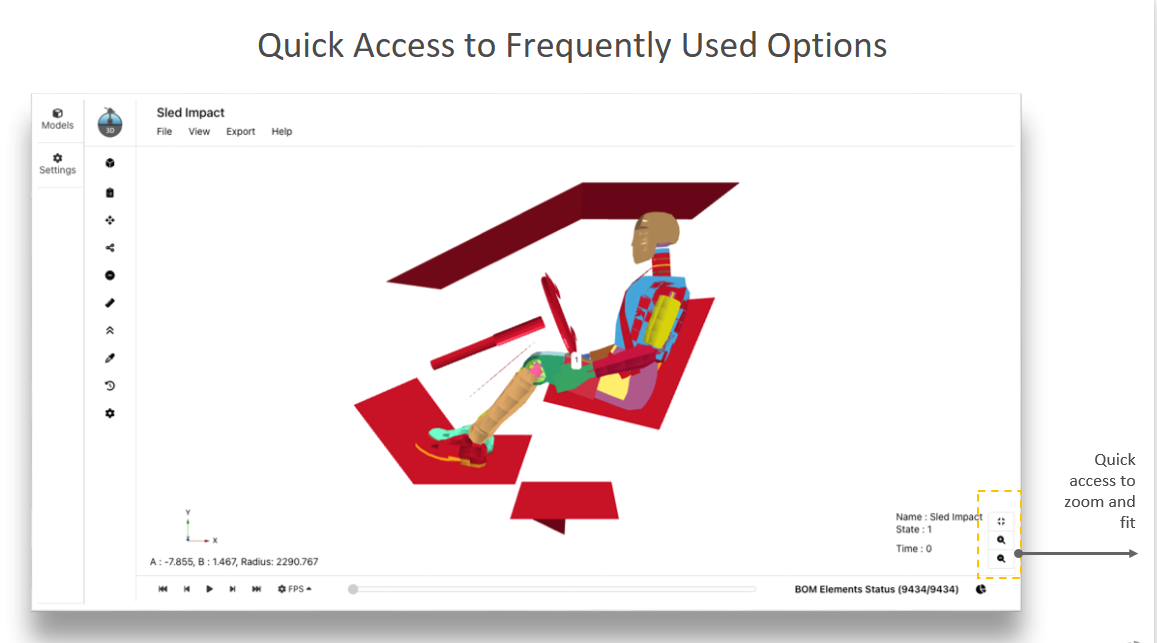

Zoom/Fit options

Quick Access to Frequently Used Options​

The below images shows quick access for Zoom and Autofit options.



Import options

Peacock can be imported to the exisiting model and can be viewed side by side for comparision.

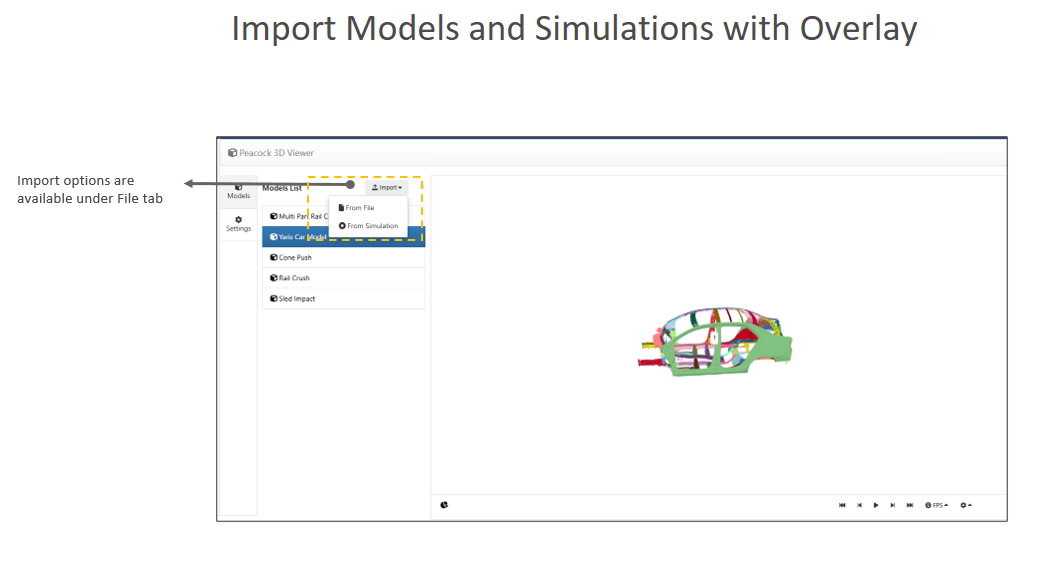

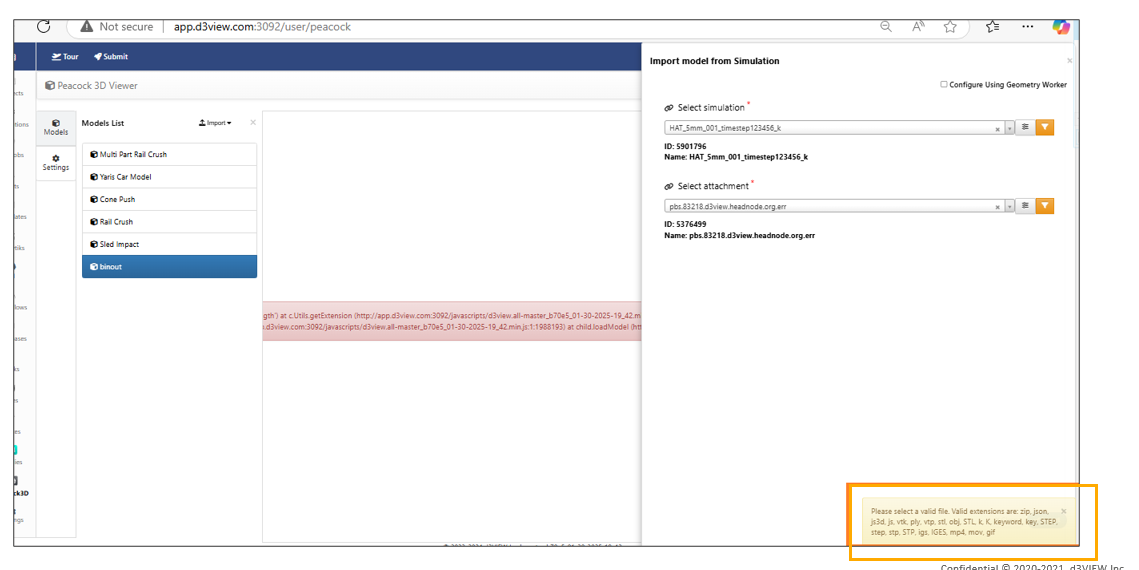

Below image shows options to Import Models and Simulations with Overlay​.



Import from simulation in Peacock shows alert message when invalid extension files are selected for import​

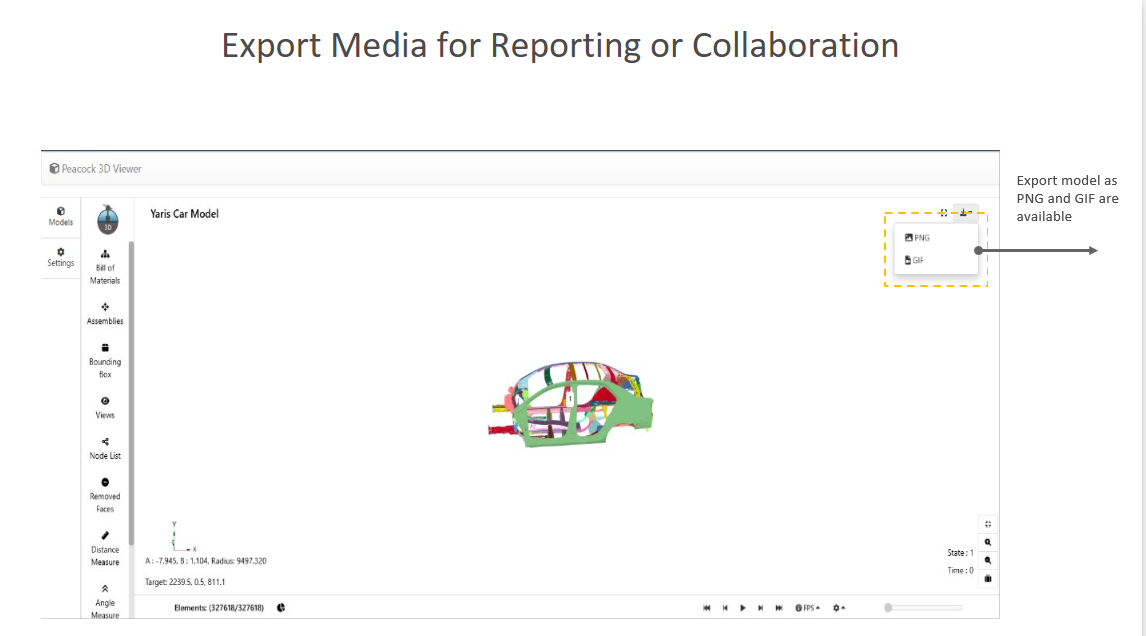

Export Options​

We have export options for Reporting or Collaboration​

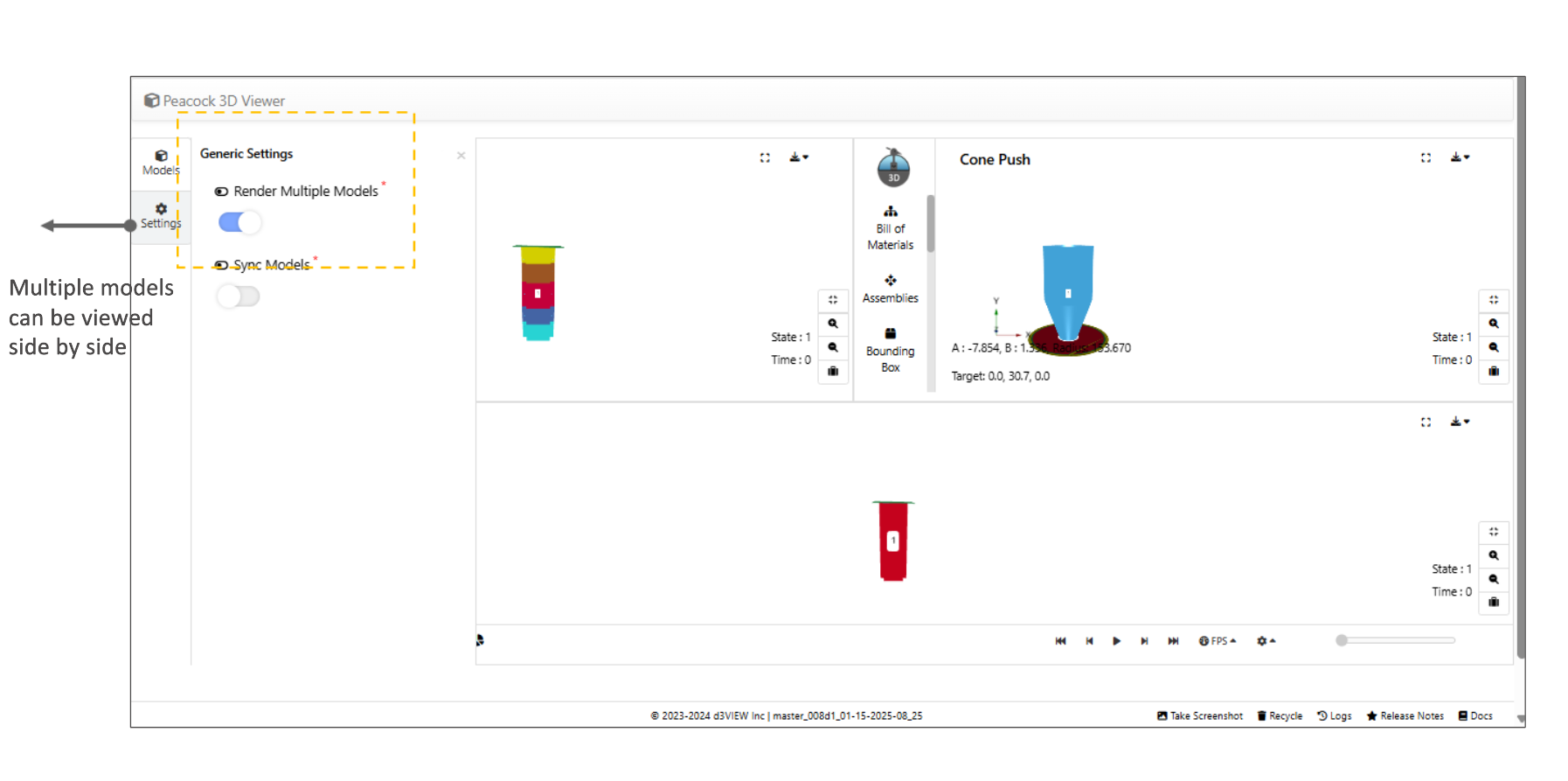

Viewing Multiple models ​

We can view multiple models together in canvas by enabling multiple option in settings.



Below video shows multiple models in canvas.



Bill of Materials ​

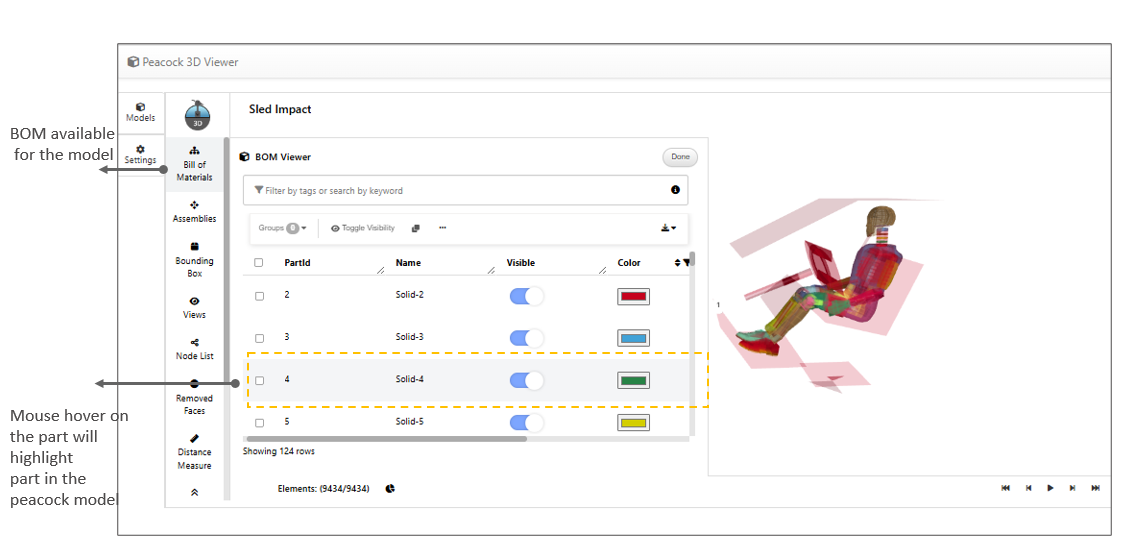

The Bill of Materials ​or BOM are available for each 3d model. The parts can be enabled disabled in this feature and also the color of the part can be changed as per users interest.

The disabled/removed parts will be shown in the canvas and can be restored back in just one click.



Below video shows how bill of materials can v=be viewed and parts can be hidden.

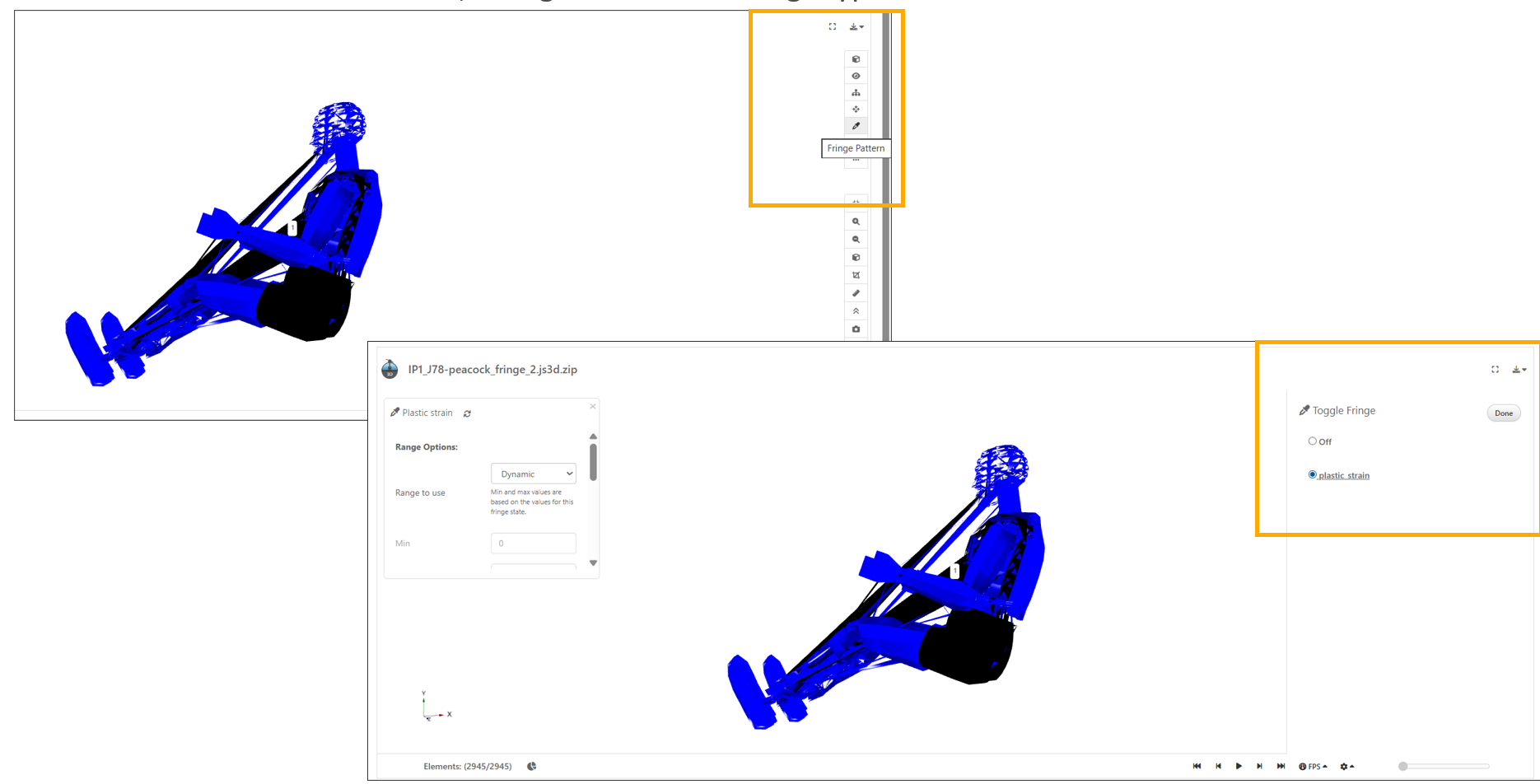

Fringes

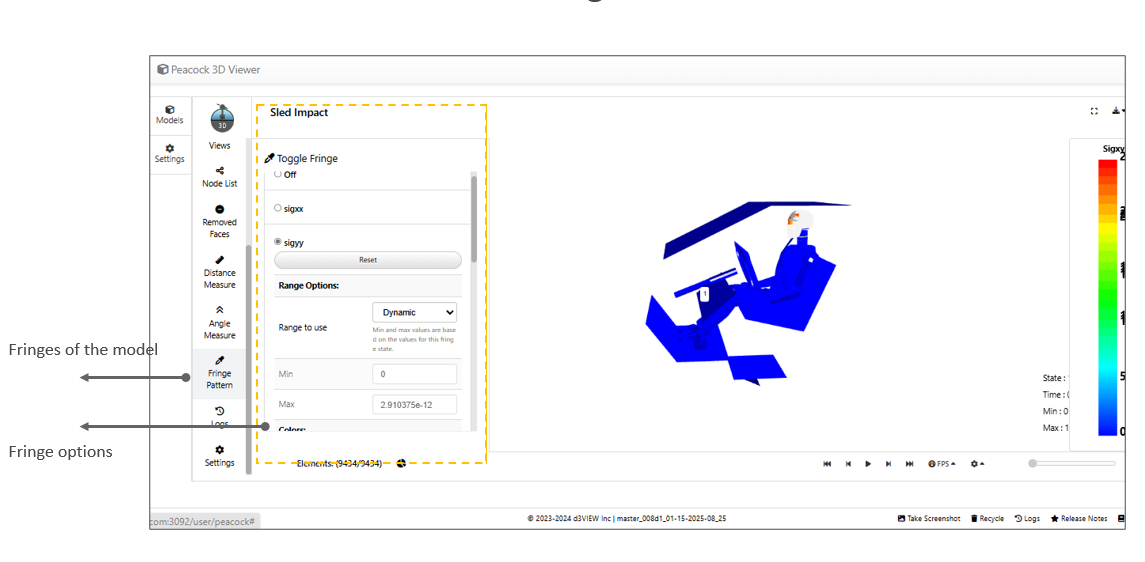

Fringes support available for Peacock model. We can modify the fringe by selecting and adding min/max values.



Fringe options container in Peacock has a new OPACITY option right at the end to allow changing opacity of all parts within the range.​

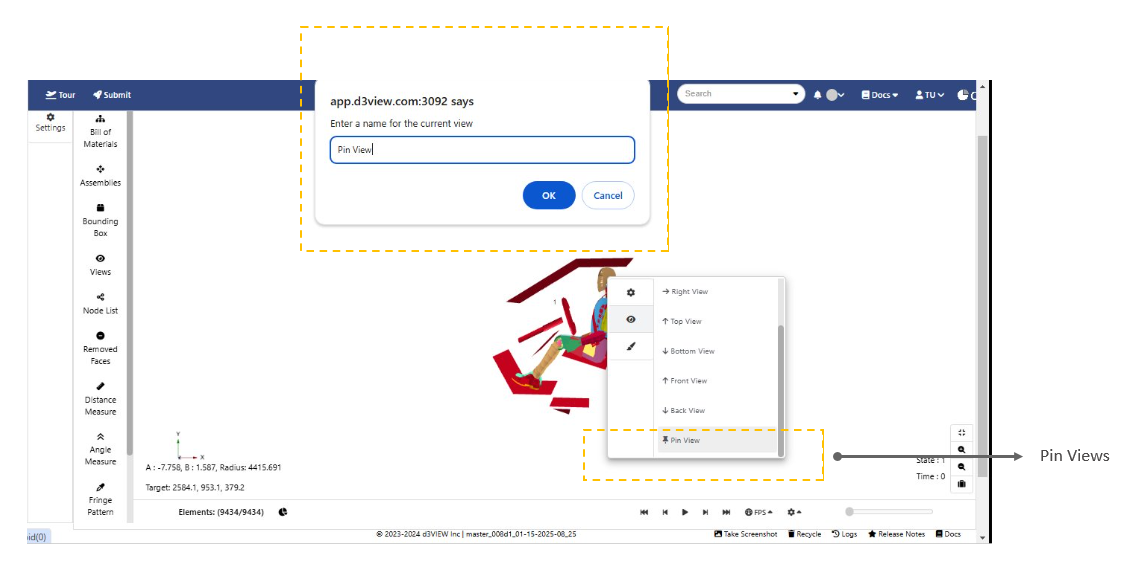

Pin views

We can pin different views and view them later in the saved views. We can also switch between pinned view in the canvas.



13.2. Addtional features

We have some additinal features like material settings , Background color, Lights etc.

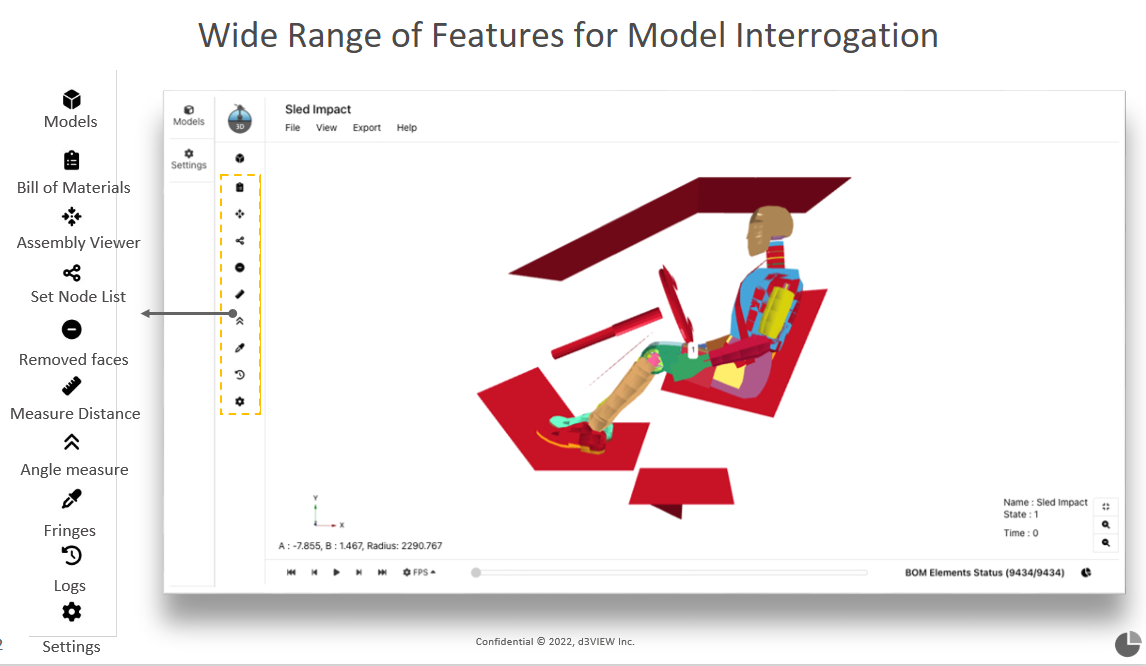

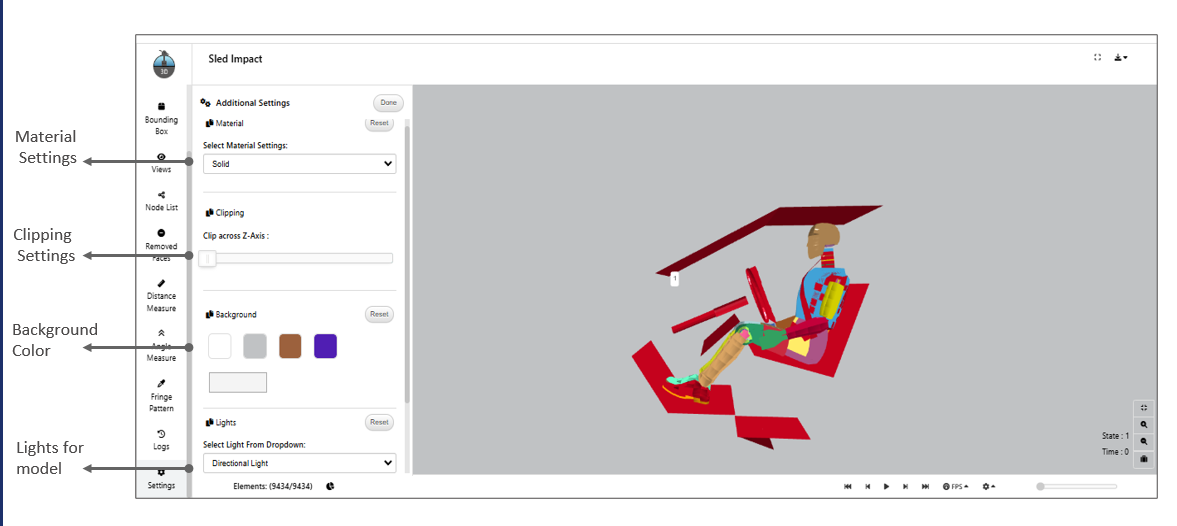

Below image show some of the additional settings available.

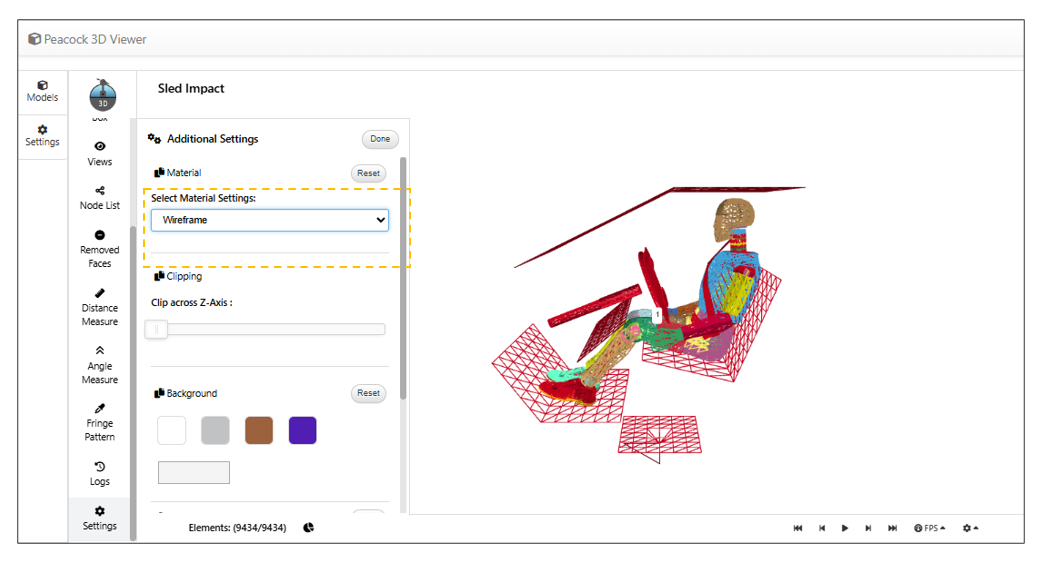

Material settings

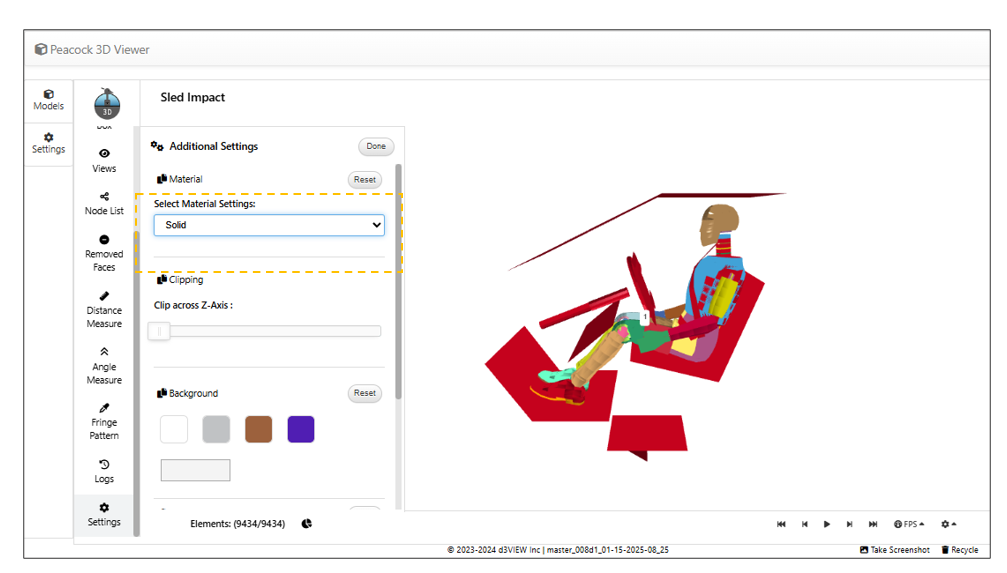

We have two material settings

1/ Solid

2/ Wireframe

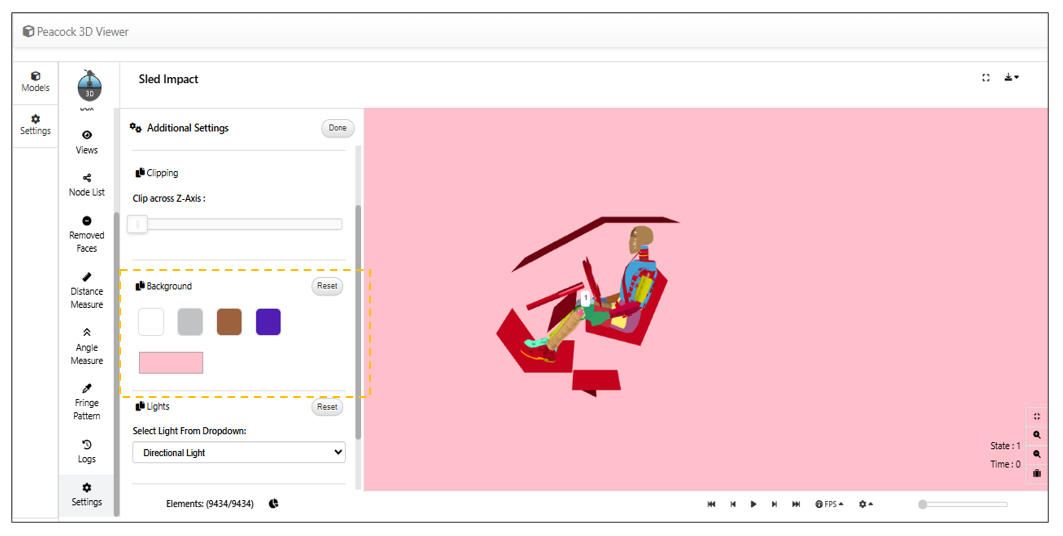

Background color settings​

We can also change the background color settings of the canvas.

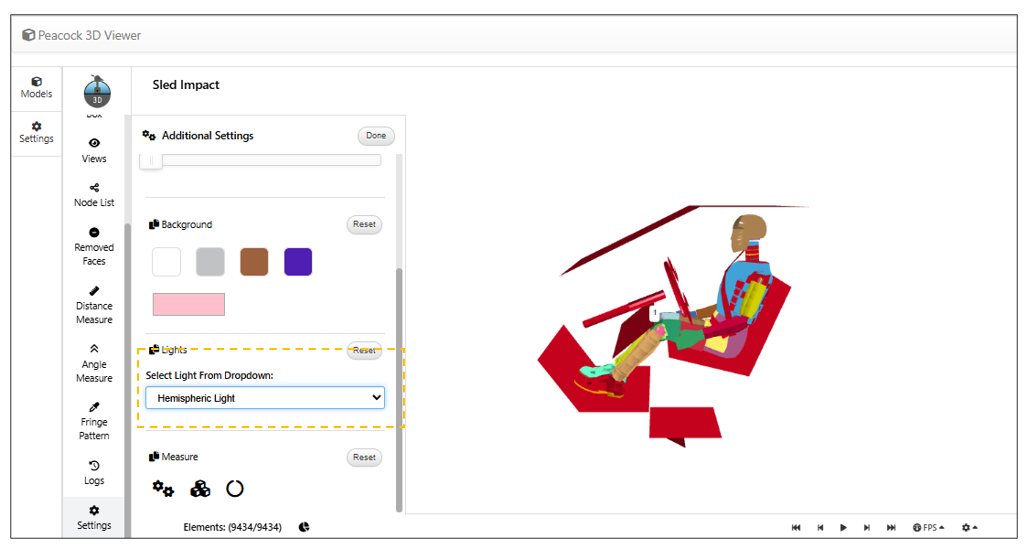

Light settings

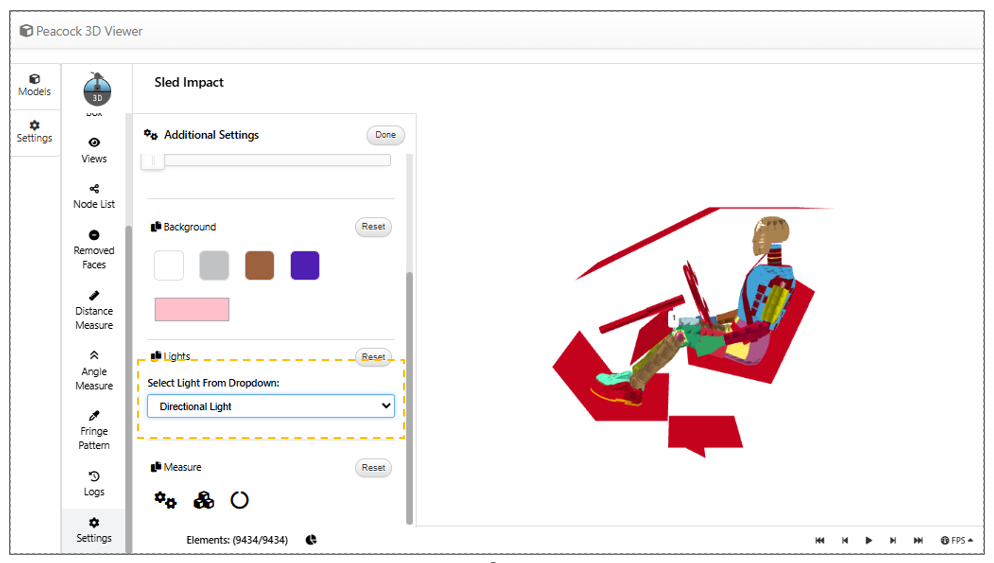

We have different light settings for the Peacock.

1/ Hemispheric

2/ Directional

3/ Point light







13.3. Hide/unhide parts

In Peacock model, selected parts can be hidden and the hidden parts will be shown on the canvas which can be restored back to the model​



13.4. Keyboard events

Peacock model supports keyboard events: arrow keys can be used for rotating while key ‘a’ is used for autofit, and letters l, r, f, b, p are used for camera view​



13.5. General peacock settings

Peacock selection

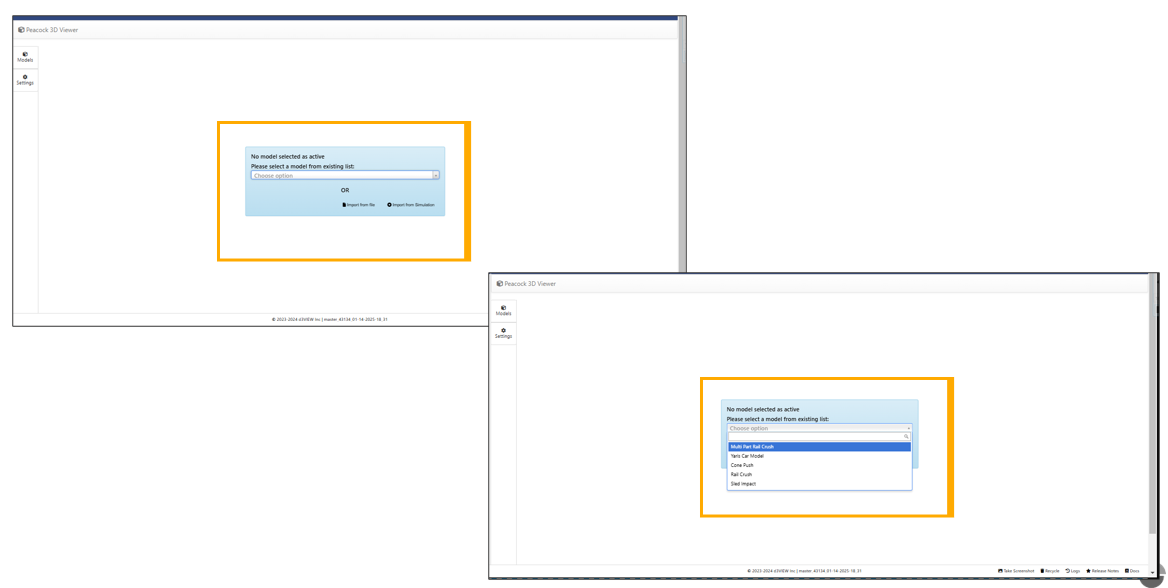

In Peacock 3D, a message to select a model OR import options are shown when model is not selected in the beginning.​

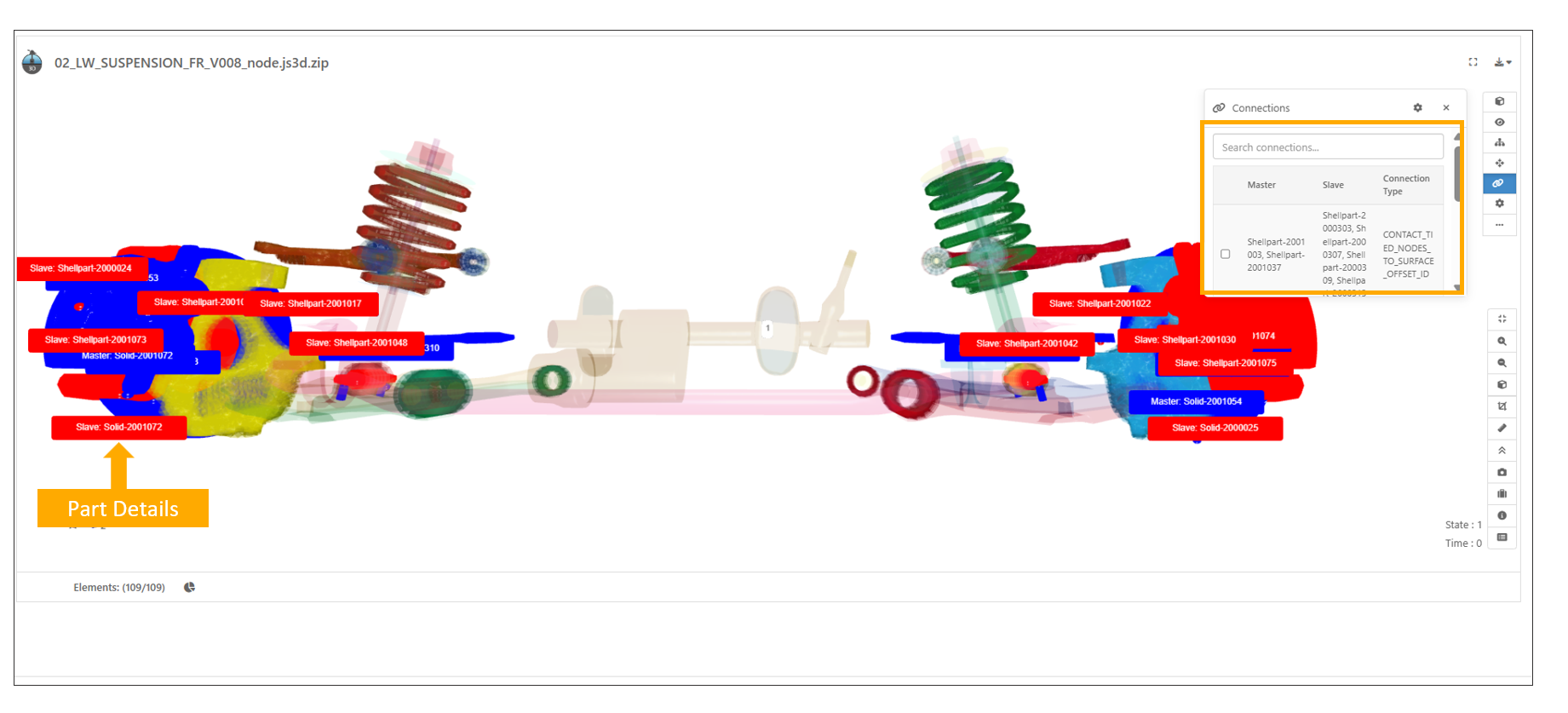

Part details

The context menu in Peacock model will have option to show the part details of the model. The part details will be shown on the canvas for the model.​



JSON file import

Peacock model import option now supports JSON file model with all materials.​



Point of Rotation

The Peacock now supports point of rotation and this option is available in the context menu, we can add multiple points for rotation and switch between them using the context menu options.​



Assemblies

Assemblies support is available for Peacock in the left side settings bar of the model view where a file from LS-Prepost can be uploaded with assemblies and shows a simple list of groups with part IDs​

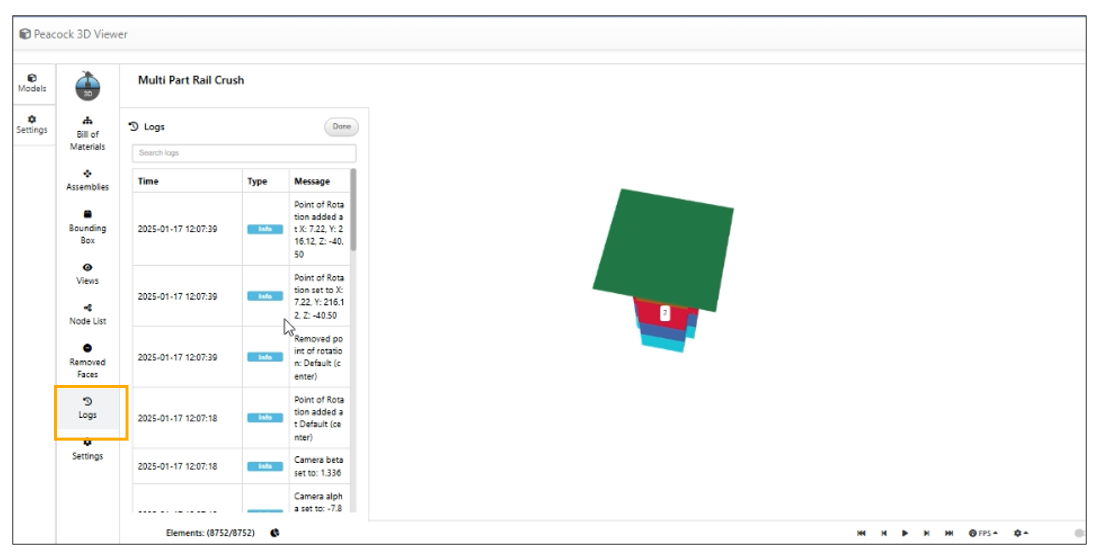

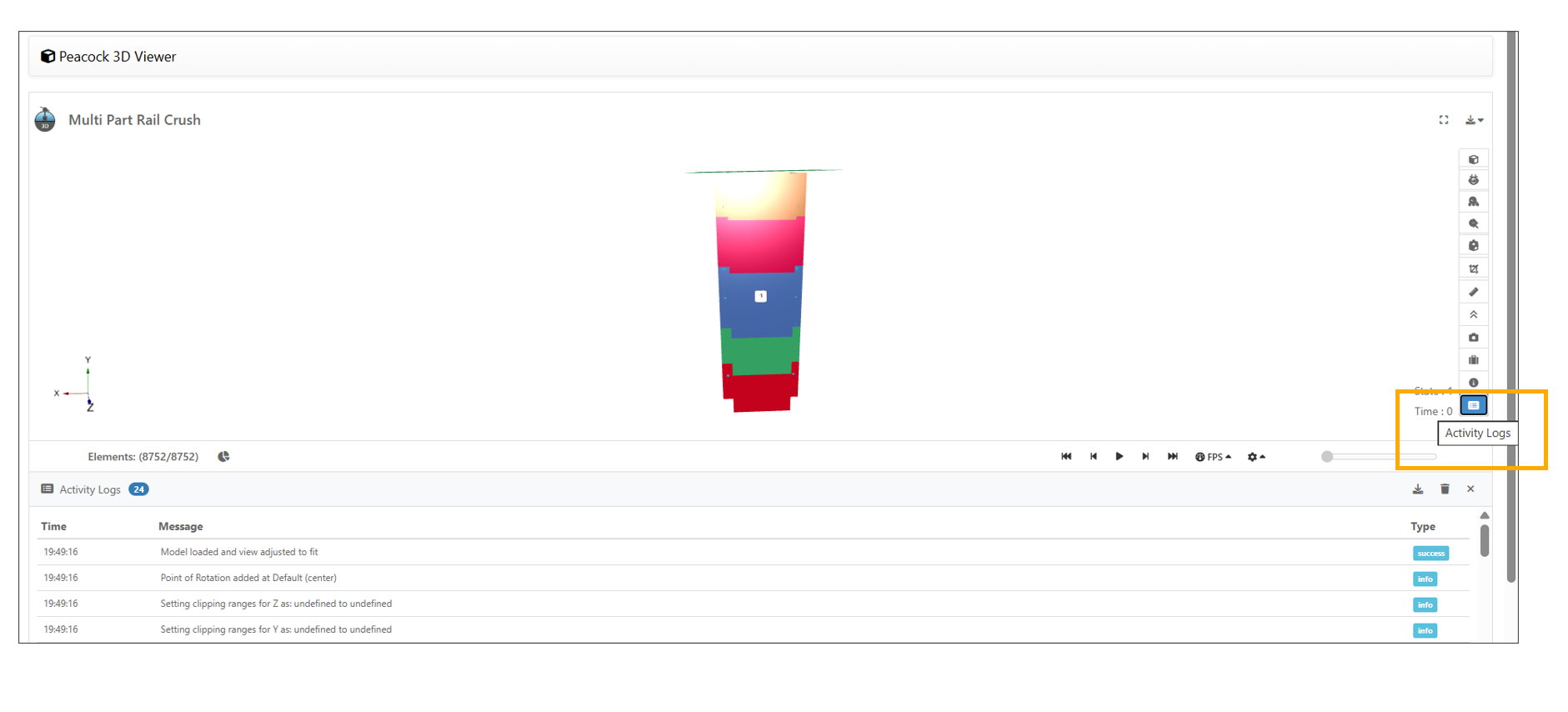

Logs

Logs are added to the Peacock model in the container​



Clipping

Peacock now supports clipping of the model in X ,Y and Z axes. This option is available in the right bottom group with crop icon.​

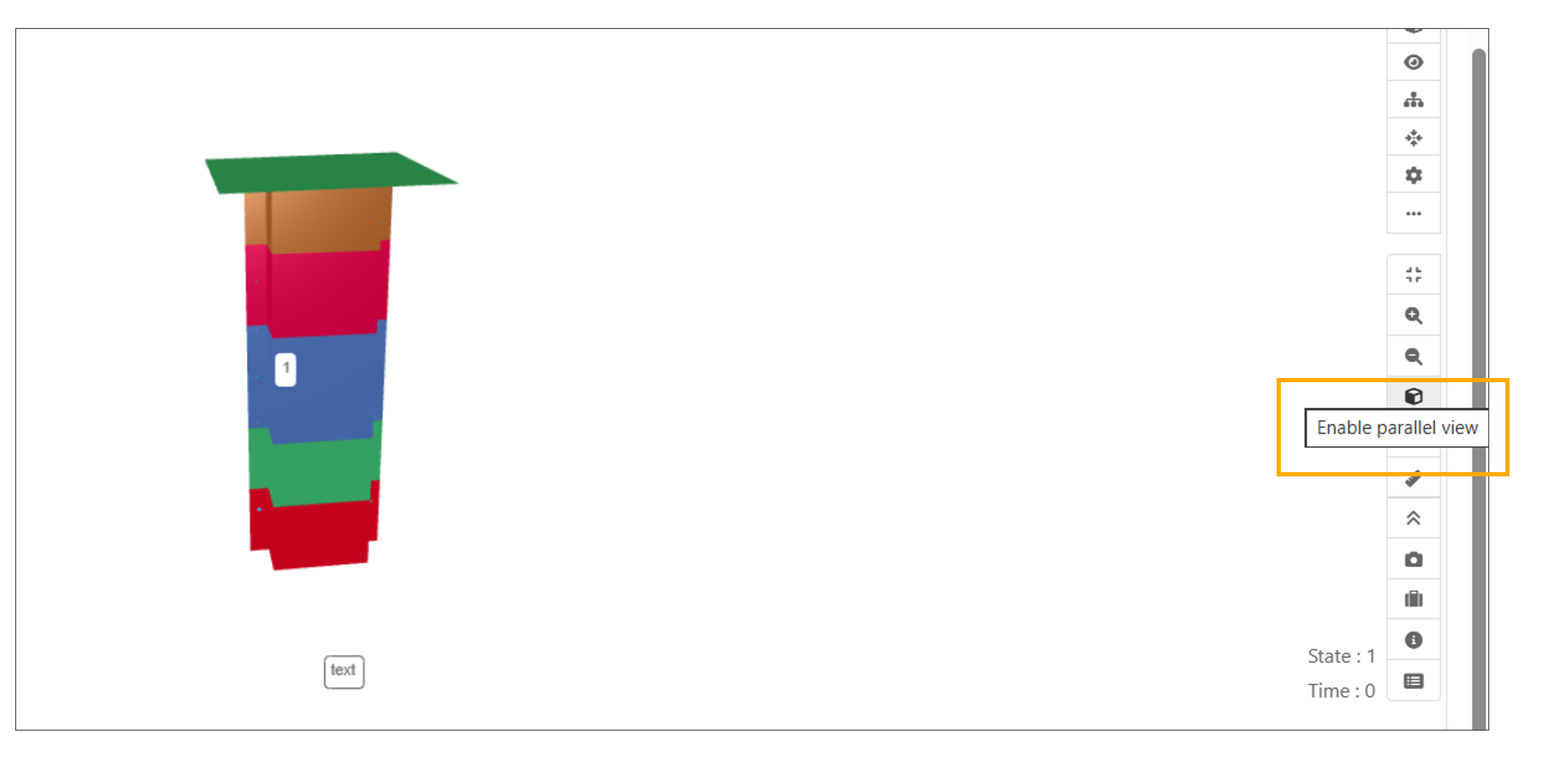

Parallel view

Peacock now supports a new view called parallel view in the right bottom buttons group.​



Sync models

Peacock now supports mp4 and GIF files, which and can be uploaded using import option and viewed side by side. We can enable the sync option in settings which will sync the animation controls for all the models.​
