CURVES_ADD_STRAIN_RATE_CURVES¶
CURVES_ADD_STRAIN_RATE_CURVES worker adds curves based on new strain rate and interpolation types.
Strain rates¶
We have options to add current strain rates and new strain rates for which the curves will be generted.
Types of scalling, Interpolation type and Type of values for Dynamic scaling¶
Types of scalling has
1/ Dynamic
2/ Y first
Interpolation has
1/ Linear
2/ PHP
3/ Makima
Type of value for Dynamic scaling has
1/ Min
2/ Max
3/ Mode
4/ Average
Example Outputs¶
Output for Dynamic scalling
Output for Yfirst scaling type
Output example for differnt compute viscocity values overlay
1, -1 and 3
Examples¶
Upper bound and lower bound¶

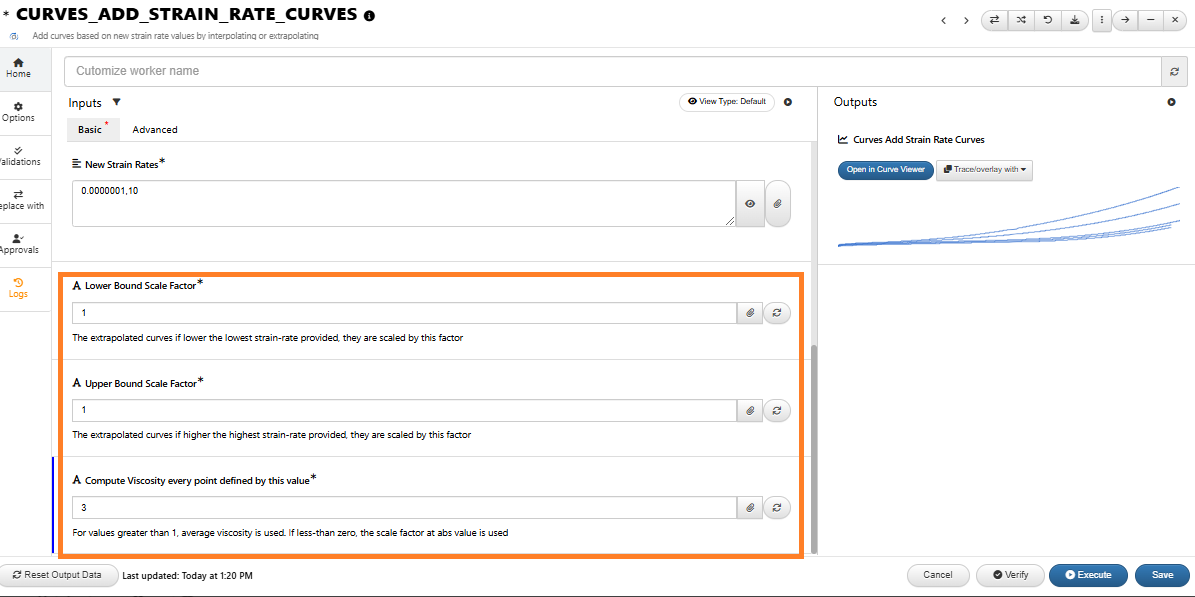

We now have to options in this Worker called Lower Bound Scale factor and Upper Bound Scale Factor.
Examples output curves for lower bound and upper bound scale factors.
Lower Bound = 0.5 and Upper Bound = 1.5
Lower Bound = 0.2 and Upper Bound = 1.7
Support for Type of scaling.
yfirst
Max
Dynamic
Overlay of scaling types
